132L9584
Part Number: 132L9584
Product Information
Extended Description

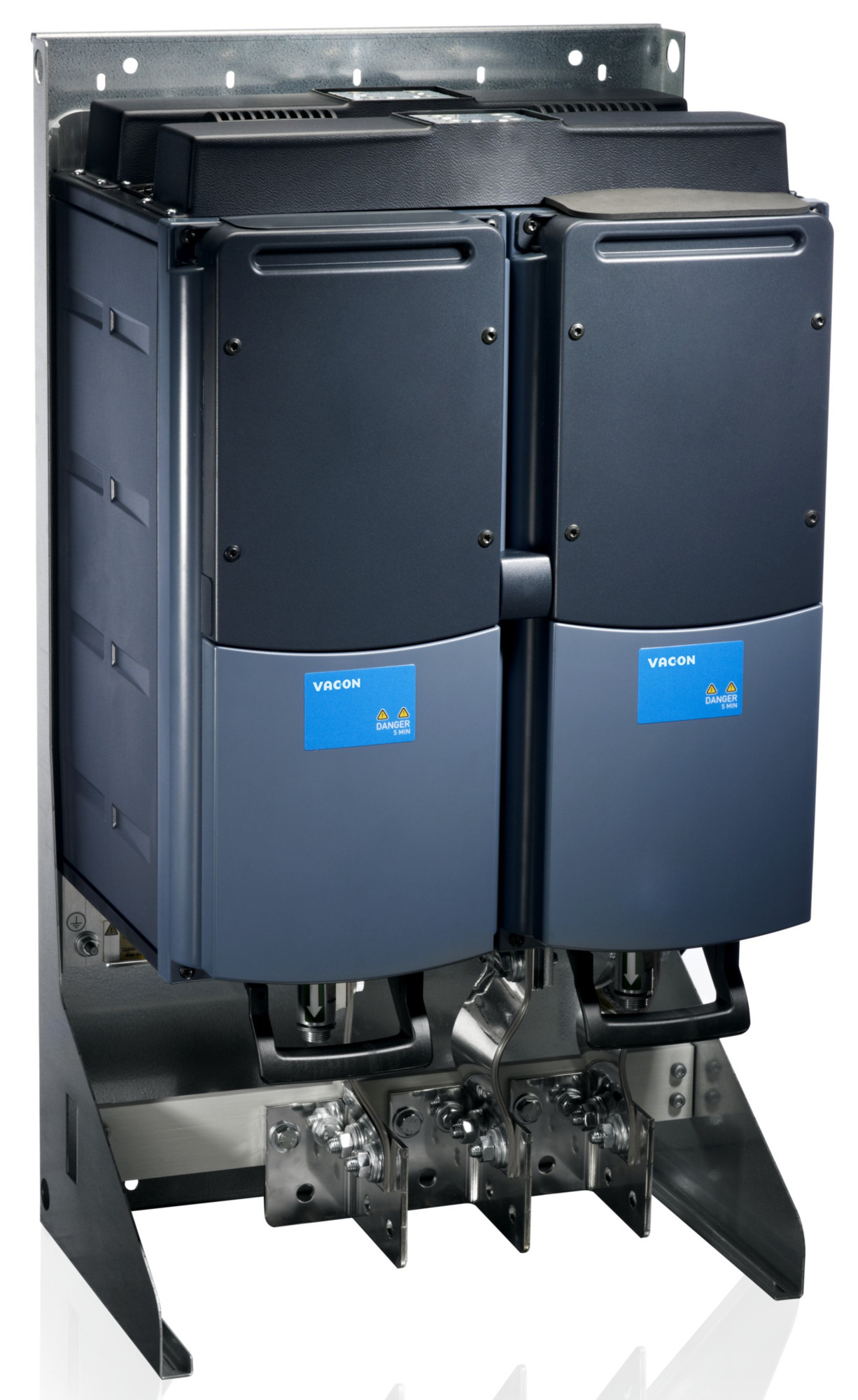

132L9584 Danfoss: NXA03856-A0T02WG-A8A2B5D6CI+GSNT+LPC2+SPXVVacon Active Front-End Unit525 – 690 Vac (640-1100 Vdc), 385 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 2RO(NO/NC)C Slot: 3RO(NO)D Slot: CAN-MonBus galv.decoupledE Slot: Modbus/TCPManual: EnglishFrame 62 liquid cooledOther options according to Model code
Gross weight
56 kg
Net weight
55 kg
Volume
0 l
EAN
5715253002750
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0385 : 385 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSNT : Without packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B5 : 3RO(NO)
Option Slot D
D6 : CAN-MonBus galv.decoupled
Option Slot E
CI : Modbus/TCP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF02 : AFE application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH62 : Frame 62 liquid cooled
Sub family identification
+SPXV : Sub-configuration for VEO
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-038560
Typecode Part 2
-000066415
Salestext
CH6203856-0T
Modelcode01
NXA03856-A0T02WG-
Modelcode02
A8A2B5D6CI
Modelcode04
+GSNT
Modelcode06
+LPC2+SPXV
Calculated Net Weight [kg]
55
Calculated Gross Weight [kg]
56
Motor Power Low Overload [kW]
407
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
246X658X374
Continuous Current (NO) [A]
350
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-038560
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
