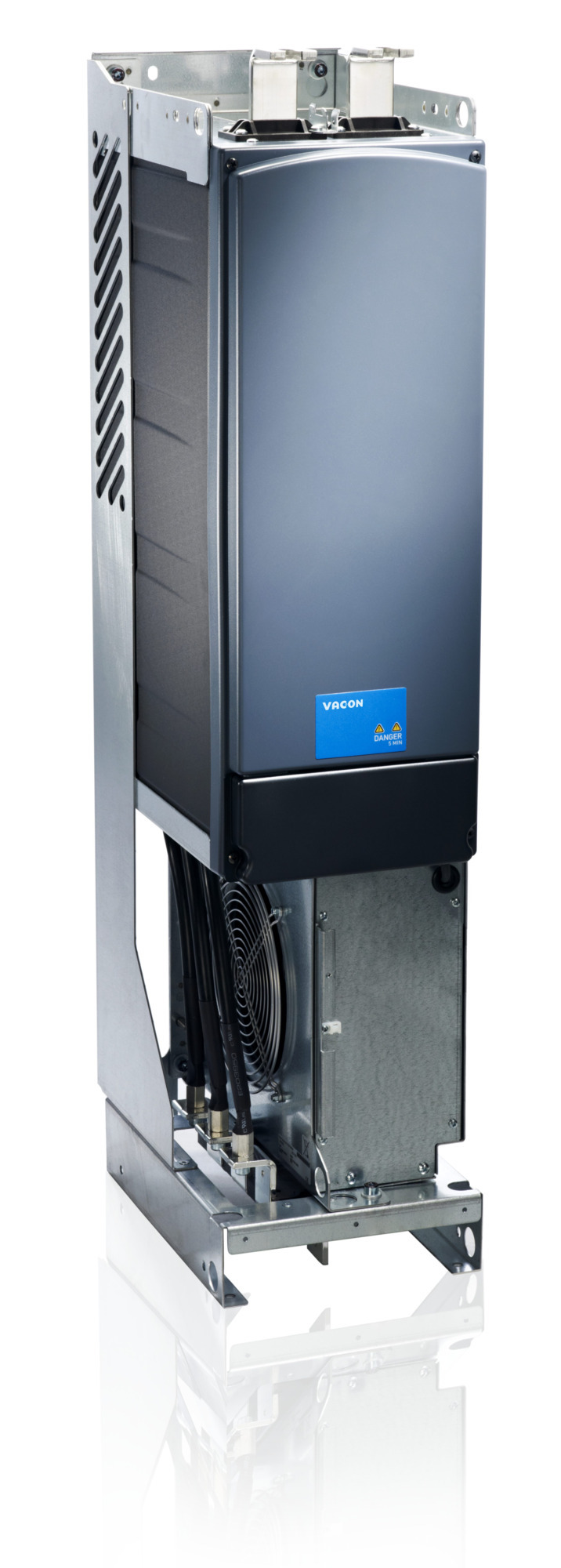

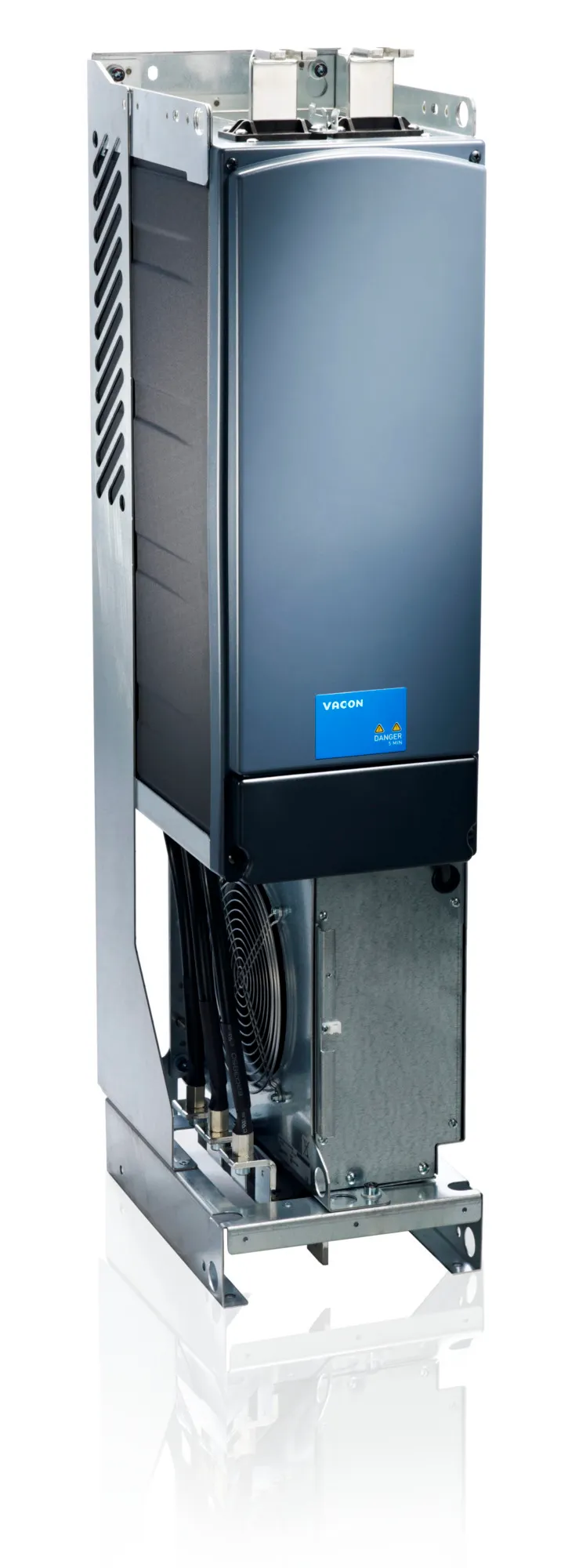

132L9935
Part Number: 132L9935
Product Information
Extended Description
132L9935 Danfoss: NXB01405-A0T08SV-A8A2000000+FL26+DLCNVacon Brake Chopper Unit380 – 500 Vac (465-800 Vdc), 140 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: ChineseFrame 08Other options according to Model code
Gross weight
49 kg
Net weight
48 kg
Volume
0 l
EAN
5715253037127
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXB : Brake Chopper Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0140 : 140 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
8 : BCU Brake chopper unit
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL26 : UK,RU,CN;Others
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCN : Chinese
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ABFIFF01 : Brake Chopper Unit NXB
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DB-014050
Typecode Part 2
-000066995
Salestext
FR0801405-0T
Modelcode01
NXB01405-A0T08SV-
Modelcode02
A8A2000000
Modelcode03
+FL26
Modelcode05
+DLCN
Calculated Net Weight [kg]
48
Calculated Gross Weight [kg]
49
Motor Power Low Overload [kW]
2X89
Motor Power High Overload [kW]
-
Continuous Current (NO) [A]
2X140
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DB-014050
check if complete
OK
Help Counter
1
Plant from Orderline
2611
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
