132N2995
Part Number: 132N2995
Product Information
Extended Description

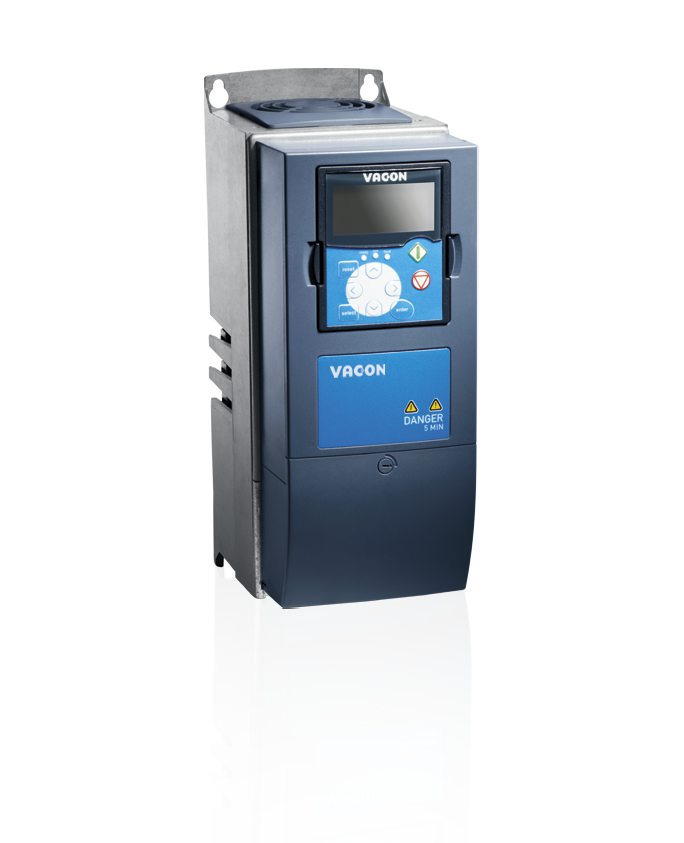

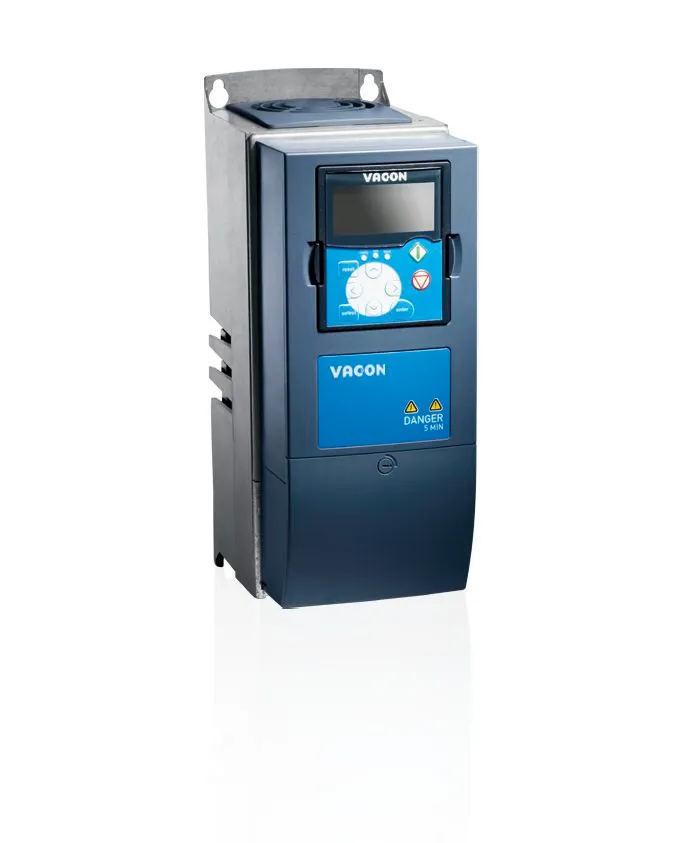

132N2995 Danfoss: NXP09206-G0T0IWG-A8B1A5D2E3Vacon NXP Frequency Converter525 – 690 Vac (640-1100 Vdc), 920 Amp,IP00Graphical panelIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 6 programmableDI/DOC Slot: 3DI(Enc.10-24V),15/24VoutD Slot: SysBus(1fiber), CAN-MonBusE Slot: PROFIBUS DPManual: EnglishFrame 64 liquid cooledOther options according to Model code
Gross weight
181 kg
Net weight
180 kg
Volume
0 l
EAN
5715253068985
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0920 : 920 Amp
Control Keypad
G : Graphical panel
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
B1 : 6 programmableDI/DO
Option Slot C
A5 : 3DI(Enc.10-24V),15/24Vout
Option Slot D
D2 : SysBus(1fiber), CAN-MonBus
Option Slot E
E3 : PROFIBUS DP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH64 : Frame 64 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-092060
Typecode Part 2
-000071934
Salestext
CH6409206-0T
Modelcode01
NXP09206-G0T0IWG-
Modelcode02
A8B1A5D2E3
Calculated Net Weight [kg]
180
Calculated Gross Weight [kg]
181
Dimensions WxHxD [mm]
746X923X375
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-092060
check if complete
OK
Help Counter
1
Plant from Orderline
2611
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1336
Cable power mod.-control mod.
181B1432
Earthing plate kit
181B2184
Terminal connector 1-5
181B2183
Control terminal plastic cover light blu
