132N3145
Part Number: 132N3145
Product Information
Extended Description

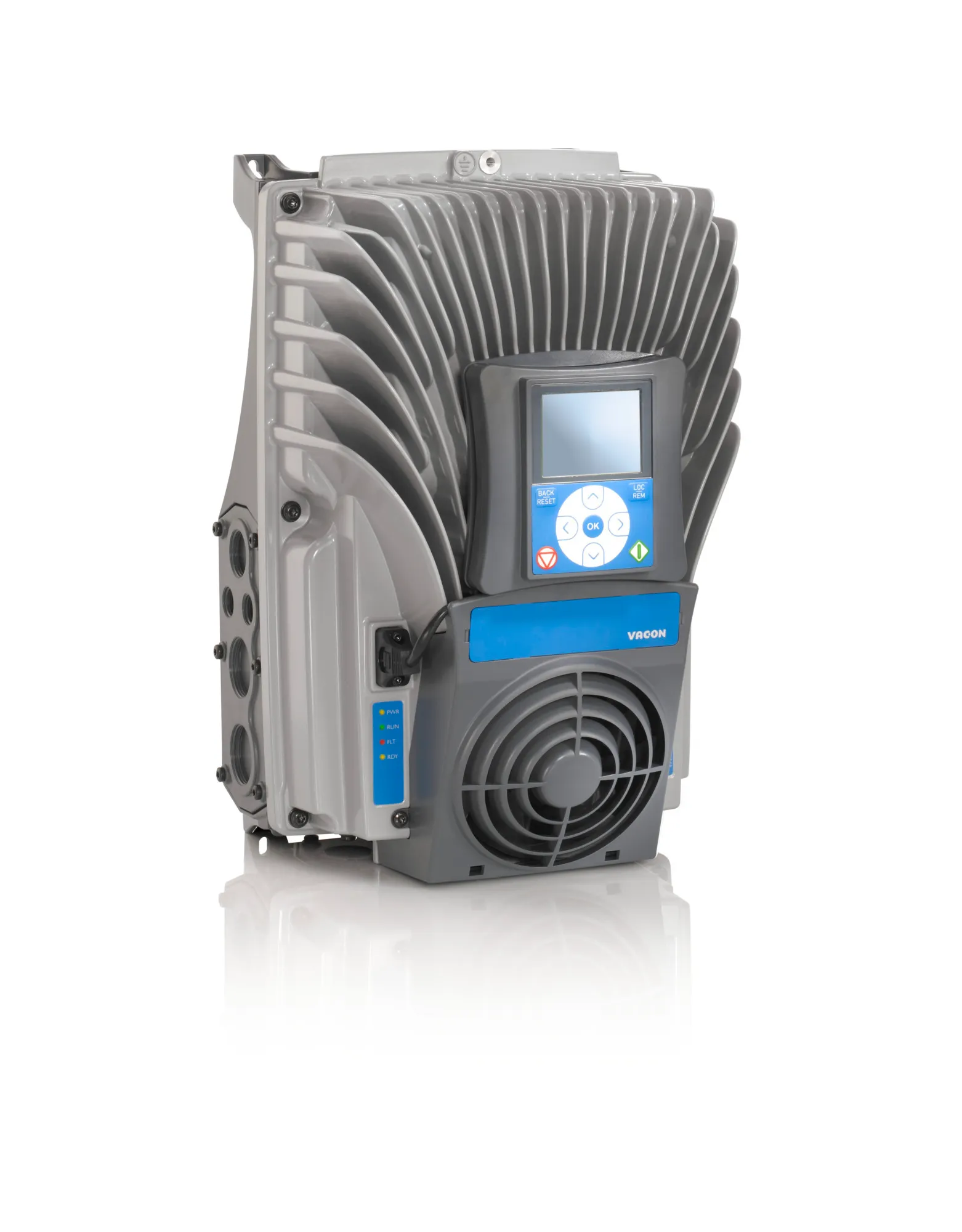

132N3145 Danfoss: Frequency converterVACON0100-3L-0385-7-ED-FLOW+SBF4+FL04+DLRU+CIFD+PODU+GNULVACON 100 FLOW525-690 Vac, 385 Amp, IP21/NEMA1Graphical Keypad MK01C3 Commercial&Industry EnvironB Slot: F4,2 Relay board with thermC Slot: No boardD Slot: No boardFieldbus: Std protocol,Modbus,N2,BacNetManual: RussianFrame 10E Slot: No boardOther options according to Model code
Gross weight
421 kg
Net weight
420 kg
Volume
0 l
EAN
5715253070575
Product View (Switch)
GLBL : Global (Standard)
Segment
-FLOW : VACON 100 FLOW
Region Code
-R00 : R00 International
Mains voltage
-7 : 525-690 Vac
Current rating
-0385 : 385 Amp
Installation options
-ED : ED Enclosed Drive
Enclosure
+IP21 : IP21/NEMA1
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC3 : C3 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+Q000 : No option
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF4 : F4,2 Relay board with therm
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SE00 : No board
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DPAP : Paper Manuals
Document language preference
+DLRU : Russian
Firmware Language Pack
+FL04 : UK, CZ, DE, PL, RU, SI, LT lan
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GNUL : No Ul Approval (+GNUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
+CIFD : (+CIFD) Fuse Switch
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+PODU : dU/dt filter
Terminal Options
+CTIO : I/O Terminals
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+CHPL : Base plint 100 mm
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM2H : Vacon 100-FLOW
Main Circuit
+M000 : NONE
Firmware
+F0159 : Vacon0100-Flow Software pack
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR10 : Frame 10
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0385-7
Modelcode02
-ED-FLOW+SBF4+FL04+DLRU
Modelcode03
+CIFD+PODU+GNUL
Calculated Net Weight [kg]
409.9
Calculated Gross Weight [kg]
410.9
Motor Power Low Overload [kW]
355
Dimensions WxHxD [mm] net
606 X 2155 X 639
Dimensions WxHxD [mm] Gross
775 X 2435 X 880
Continuous Current (NO) [A]
385
Motor Power HP Low Overload
400
Typecode Part 1
70-AB3L03857C10B230BM2H
Typecode Part 2
-000072241
check if complete
OK
Plant from Orderline
RU01
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
20
Method
HORIZONTAL
Sub family identification
NONE : Normal customer ordered
ECCN US
3A999.a
ECCN EU
Y901
141F3478
V100X MC05 Control Unit assembly +F0072
141F6355
Measurement Board for V100X
141F3486
V100X control 10 x accessory bag
141F3489
V100X MM06 accessory bag (10pcs)
141F3492
V100X MM06 3 x cable gland spare part
141F3497
V100X MM04 packaging EPP
141F3498
V100X MM05 packaging EPP
141F3499
V100X MM06 10 x packaging
141F3512
V100X MM04 power terminal block
141F3513
Power terminal block V100X MM05
181B0483
CAB-HMI2M-MC05-X
181B0515
Vacon100 MM5 Motor Mount Flange
141F4233
Vacon100 MM5 Auxiliary Frame Heater
141F4186
Vacon100 MM5 Main Switch Option
141F4176
VACON-PAN-HMGR-MC05-X
141F4278
RTC battery kit 10pcs, OP
141F4222
MC05, MC06 Keypad Wallmounting Kit
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
