132N3930

Part Number: 132N3930
132N3930
Manufacturer
Danfoss
Part number
132N3930
Category

Product Information

Extended Description

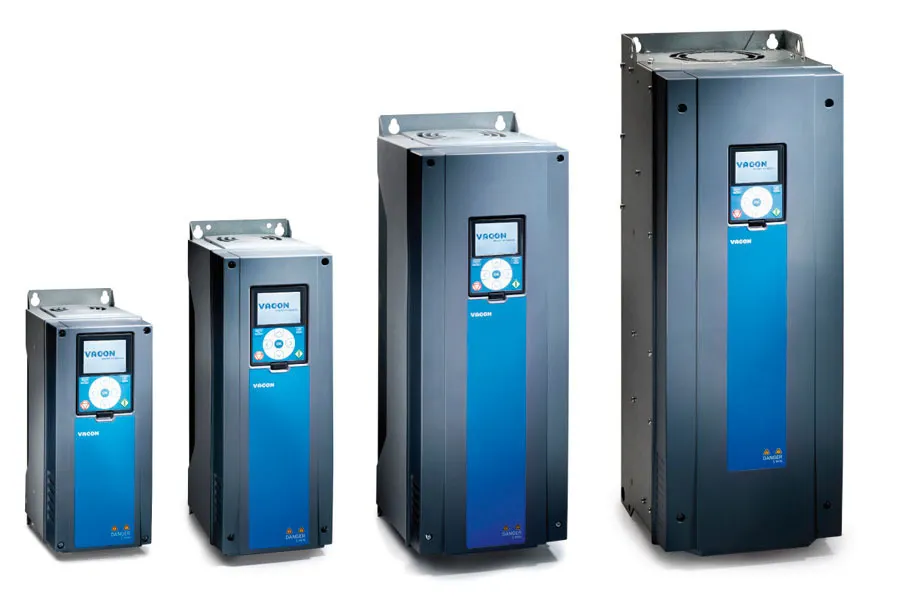

132N3930 Danfoss: Frequency converterVACON0100-3L-0651-5+IP00+FBIEVACON 100 Industrial380-500 Vac, 651 Amp, IP00Graphical Keypad MK01C3 Commercial&Industry EnvironB Slot: F3,3 Relay boardC Slot: No boardD Slot: No boardFieldbus: IndEth (ProfinetIO,EthernetIP)Manual: EnglishMR11E Slot: No boardOther options according to Model code
Gross weight
215 kg
Net weight
214 kg
Volume
0 l
EAN
5715253078595
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0651 : 651 Amp
Installation options
-DM : DM Drive Module
Enclosure
+IP00 : IP00
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC3 : C3 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+QGLM : Metric conduit plate
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SE00 : No board
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Documentation level
+DPAP : Paper Manuals
Document language preference
+DLUK : English
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GAUL : UL Approval (+GAUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
NONE : none_
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
NONE : none_
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+C000 : no option
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR11 : MR11
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0651-5
Modelcode02
+IP00+FBIE
Calculated Net Weight [kg]
214
Calculated Gross Weight [kg]
215
Motor Power Low Overload [kW]
355
Motor Power High Overload [kW]
315
Dimensions WxHxD [mm] net
960 X 971 X 365
Dimensions WxHxD [mm] Gross
1170 X 1350 X 760
Continuous Current (NO) [A]
650
Continuous Current (HO) [A]
590
Motor Power HP Low Overload
500
Motor Power HP High Overload
500
Typecode Part 1
70-AB3L06515W11B030BM26
Typecode Part 2
-000073375
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
10
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
Y901
181B1962
Control extension cable
181B1935
Fuse plain blade 500A aR 690VAC size 2
181B1100
Terminal connector kit Vacon100
181B1287
Follower adapter board
181B1286
Master adapter board
181B2356
Contactor DILM250
181B2353
Fuse base OFAX2
181B2352
Fuse switch OS40030P
181B2349
Thermal magnetic circuit breaker
181B2347
Common mode filter core
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1175
DrivePro ExWarr Work Shop PG08 54 Month
130R1177
DrivePro ExWarr Work Shop PG08 66 Month
130R1178
DrivePro ExWarr Work Shop PG08 72 Month
130R1176
DrivePro ExWarr Work Shop PG08 60 Month
130R1170
DrivePro ExWarr Work Shop PG08 24 Month
130R1172
DrivePro ExWarr Work Shop PG08 36 Month
