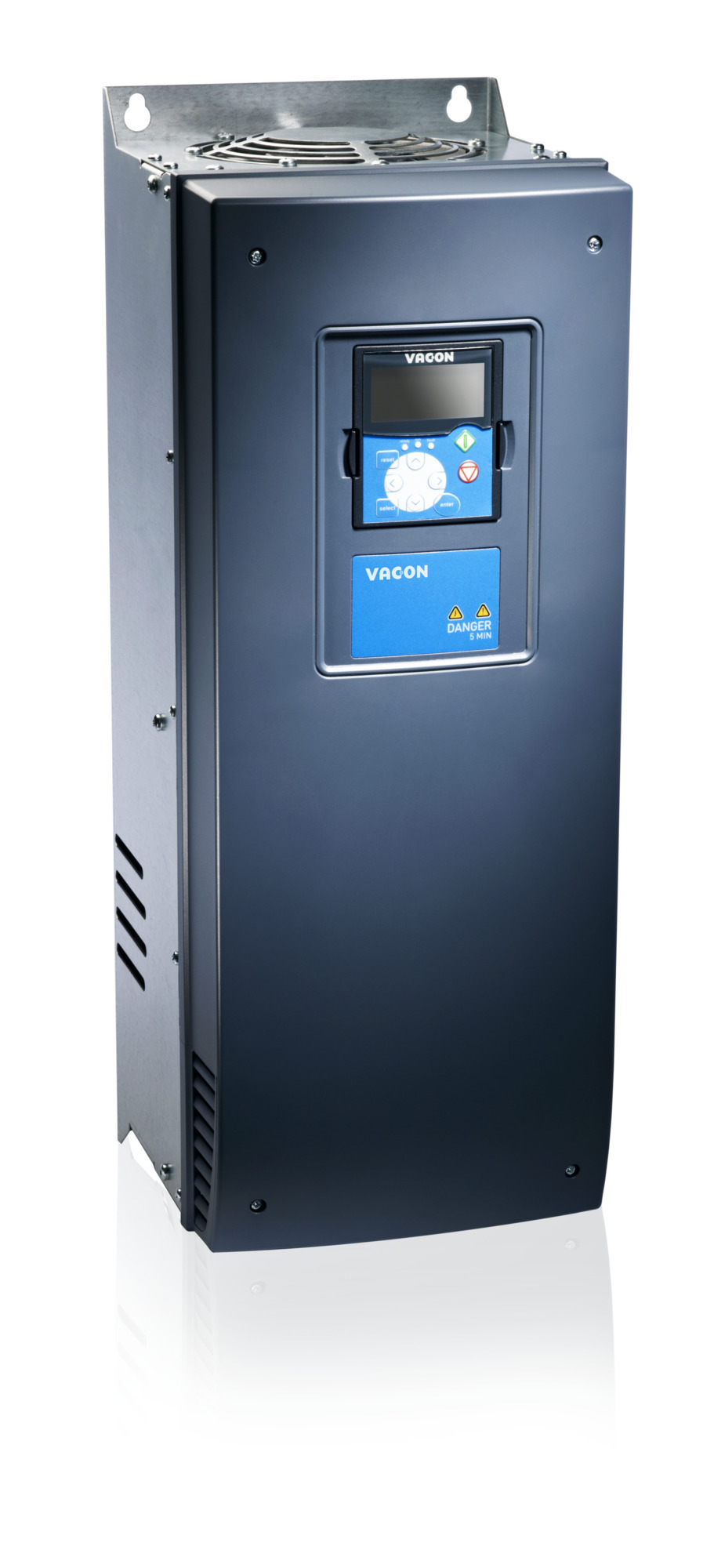

132N4053
Part Number: 132N4053
Product Information
Extended Description
132N4053 Danfoss: NXA02615-G0T02SG-A1AFD7B5E9+FL21+GRID+ARFIF106+DLSEVacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 261 Amp,IP00Graphical panelIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: STO, ATEX thermC Slot: Line voltage meas.D Slot: 3RO(NO)E Slot: 2-port ethernetManual: SwedishFrame 09 INUATEX: II (2) GDOther options according to Model code
Gross weight
68 kg
Net weight
67 kg
Volume
0 l
EAN
5715253079820
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0261 : 261 Amp
Control Keypad
G : Graphical panel
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
D7 : Line voltage meas.
Option Slot D
B5 : 3RO(NO)
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLSE : Swedish
System Firmware
+FNP02 : System software NXP
Software license
+GRID : +UGRD & +GRDC
Application
+ARFIF106 : Grid Conv with codes NXA,NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI09 : Frame 09 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-026150
Typecode Part 2
-000073538
Salestext
FI0902615-0T
Modelcode01
NXA02615-G0T02SG-
Modelcode02
A1AFD7B5E9
Modelcode03
+FL21+GRID
Modelcode04
+ARFIF106
Modelcode05
+DLSE
Calculated Net Weight [kg]
67
Calculated Gross Weight [kg]
68
Motor Power Low Overload [kW]
175
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X372
Continuous Current (NO) [A]
261
Continuous Current (HO) [A]
205
ATEX Marking 1
ATEX: II (2) GD
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-026150
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1490
DC - wire
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1617
Charging wire
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1432
Earthing plate kit
181B2119
Front cover IP54 light blue
130R1303
DrivePro Start-Up unit pre-order small
130R1324
DrivePro Start-Up ctrl. IFT test small
130R1321
DrivePro Start-Up special applic. small
130R1313
DrivePro Start-Up 1 day on-demand small
130R1312
DrivePro Start-Up 1 Day Pre-order small
130R1304
DrivePro Start-Up unit on-demand small
130R1380
DrivePro Start-Up =C2=BD day pre-order small
130R1381
DrivePro Start-up =C2=BD day on-demand small
