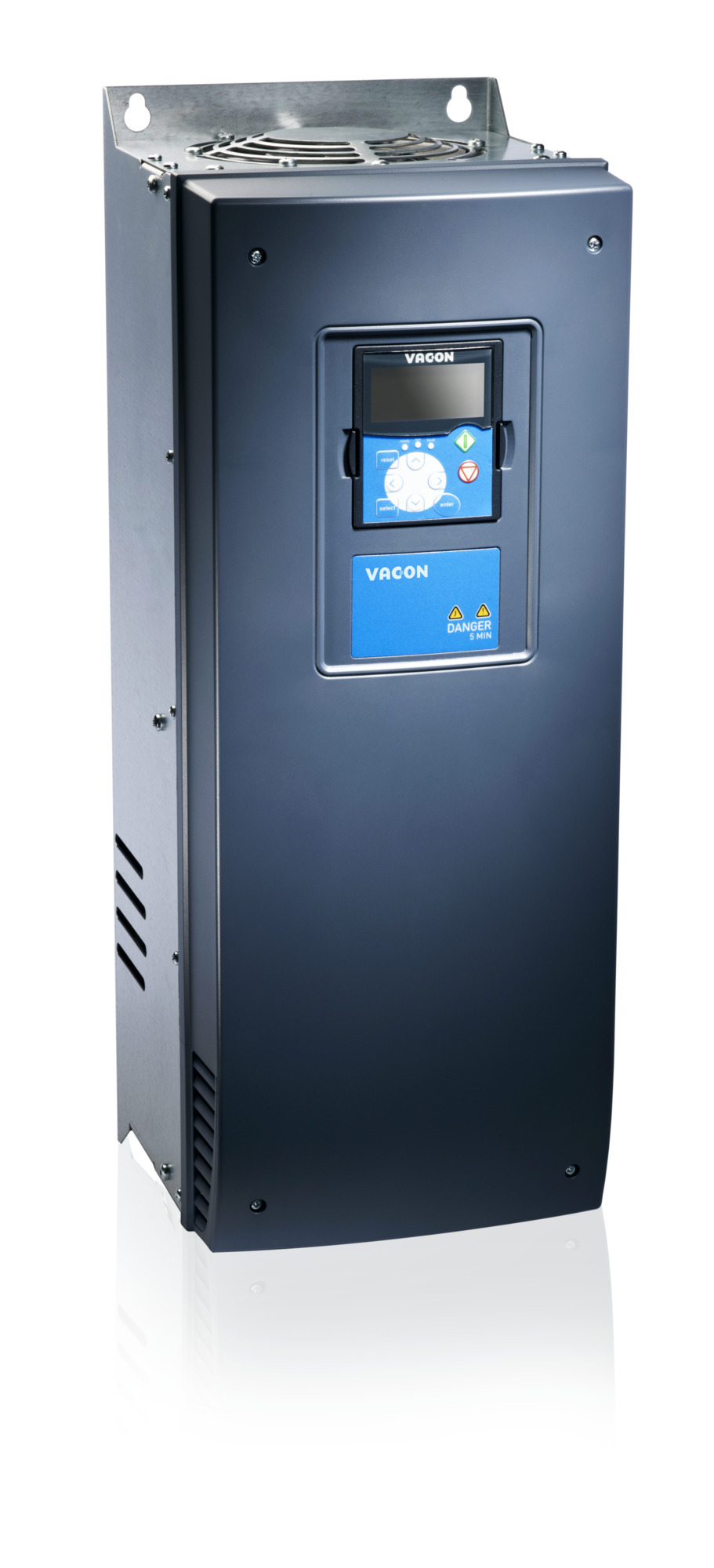

132N5202
Part Number: 132N5202
Product Information
Extended Description
132N5202 Danfoss: NXB00385-A2T08SV-A1A20000E6Vacon Brake Chopper Unit380 – 500 Vac (465-800 Vdc), 38 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: CANopenManual: EnglishFrame 06Other options according to Model code
Gross weight
17 kg
Net weight
16 kg
Volume
0 l
EAN
5715253092157
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXB : Brake Chopper Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0038 : 38 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
8 : BCU Brake chopper unit
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E6 : CANopen
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ABFIFF01 : Brake Chopper Unit NXB
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR06 : Frame 06
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DB-003852
Typecode Part 2
-000074894
Salestext
FR0600385-2T
Modelcode01
NXB00385-A2T08SV-
Modelcode02
A1A20000E6
Calculated Net Weight [kg]
16
Calculated Gross Weight [kg]
17
Motor Power Low Overload [kW]
2X24
Motor Power High Overload [kW]
-
Continuous Current (NO) [A]
2X38
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DB-003852
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1490
DC - wire
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1617
Charging wire
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1432
Earthing plate kit
181B2119
Front cover IP54 light blue
130R1303
DrivePro Start-Up unit pre-order small
130R1324
DrivePro Start-Up ctrl. IFT test small
130R1321
DrivePro Start-Up special applic. small
130R1313
DrivePro Start-Up 1 day on-demand small
130R1312
DrivePro Start-Up 1 Day Pre-order small
130R1304
DrivePro Start-Up unit on-demand small
130R1380
DrivePro Start-Up =C2=BD day pre-order small
130R1381
DrivePro Start-up =C2=BD day on-demand small
