132N5554
Part Number: 132N5554
Product Information
Extended Description

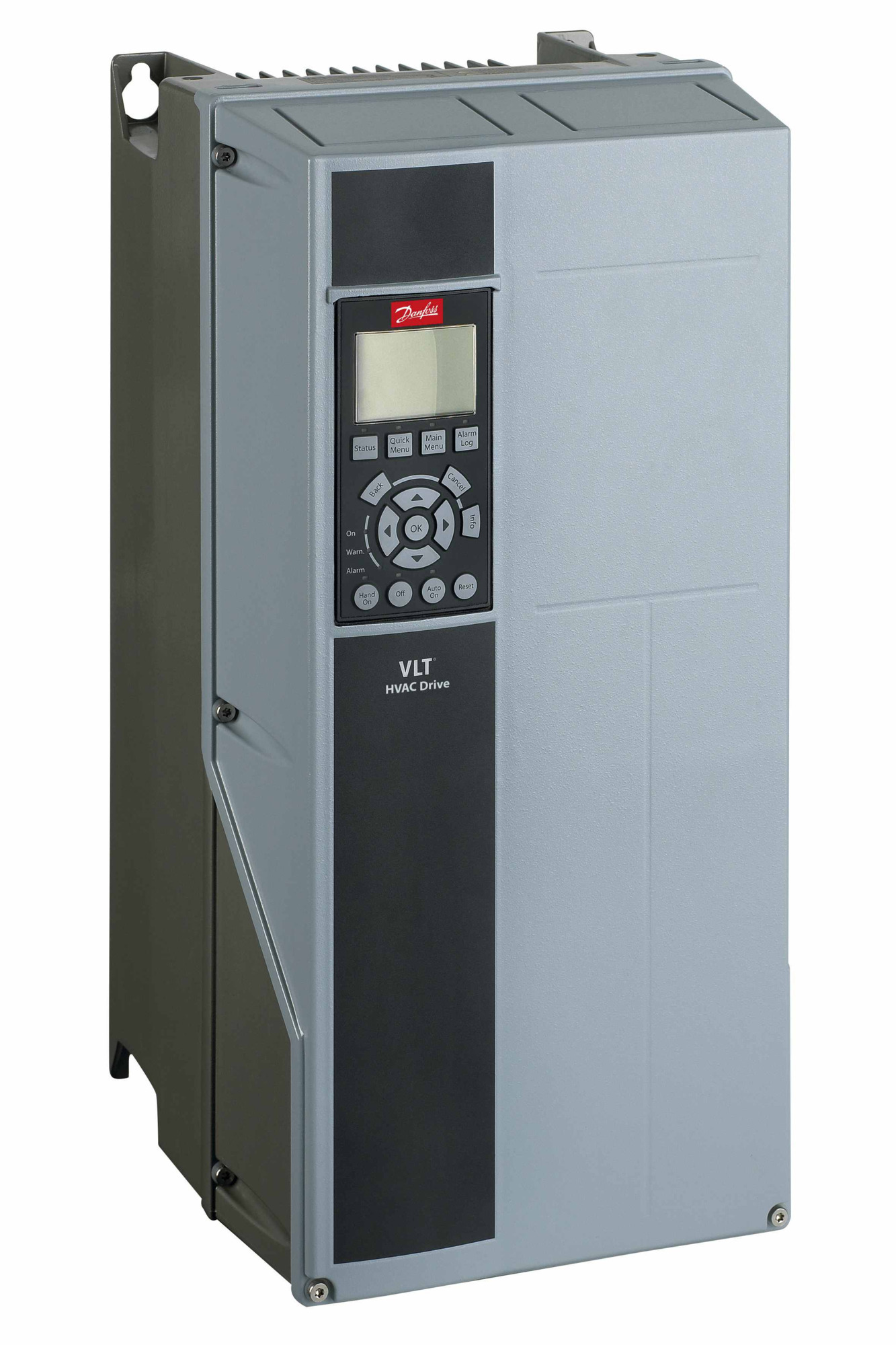

132N5554 Danfoss: Frequency converterFC-202P37KT4P66H2XGXXXXLXX1XAXBXCXXXXDXVLT® AQUA Drive FC-202(P37K) 37 KW / 50 HP, Three phase380 - 480 VAC, (P66) IP66 / NEMA 4X BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionCascade controller 2.0Frame: C1No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
41.3 kg
Net weight
39.8 kg
Volume
144.67 l
EAN
5715253095738
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® AQUA Drive FC-
Series
202 : 202
Power Rating
P37K : (P37K) 37 KW / 50 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P66 : (P66) IP66 / NEMA 4X Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
LXX1 : Cascade controller 2.0
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C1 : C1
Typecode Part 1
FC-202P37KT4P66H2XGX
Typecode Part 2
XXXLXX1XAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Height [mm]
685,0
Width w/ no C options [mm]
308,0
Depth [mm]
311,0
Depth with Option A/B [mm]
311,0
Power Loss NO [W]
698
Power Loss HO [W]
570
Calculated Gross Weight [kg]
41.3
Calculated Net Weight [kg]
39.8
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P37KT4P66H2XGX
Modelcode02
XXXLXX1XAXBXCXXXXDX
