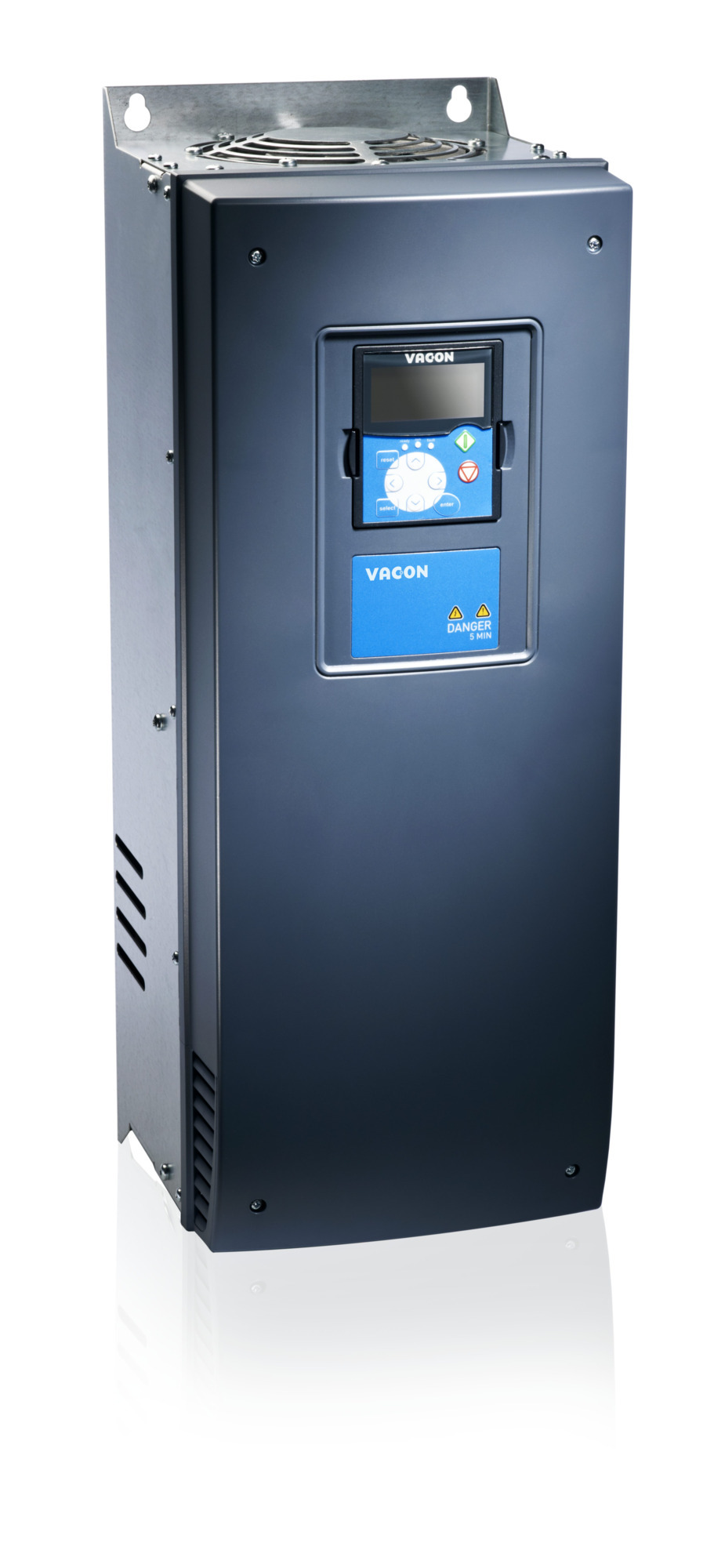

132N5848
Part Number: 132N5848
Product Information
Extended Description
132N5848 Danfoss: NXI06505-A0T0ISG-A1A2000000+MASG+ARFIFF03+GSSEVacon NXI Inverter Unit380 – 500 Vac (465-800 Vdc), 650 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: English2xFrame 10 INUOther options according to Model code
Gross weight
205 kg
Net weight
204 kg
Volume
0 l
EAN
5715253098913
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0650 : 650 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSSE : Sea container package
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI12 : 2xFrame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-065050
Typecode Part 2
-000075611
Salestext
FI1206505-0T
Modelcode01
NXI06505-A0T0ISG-
Modelcode02
A1A2000000
Modelcode03
+MASG
Modelcode04
+ARFIFF03+GSSE
Calculated Net Weight [kg]
195
Calculated Gross Weight [kg]
196
Motor Power Low Overload [kW]
355
Motor Power High Overload [kW]
315
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
650
Continuous Current (HO) [A]
590
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-065050
check if complete
OK
Help Counter
1
Plant from Orderline
2460
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1490
DC - wire
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1617
Charging wire
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1432
Earthing plate kit
181B2119
Front cover IP54 light blue
130R1303
DrivePro Start-Up unit pre-order small
130R1324
DrivePro Start-Up ctrl. IFT test small
130R1321
DrivePro Start-Up special applic. small
130R1313
DrivePro Start-Up 1 day on-demand small
130R1312
DrivePro Start-Up 1 Day Pre-order small
130R1304
DrivePro Start-Up unit on-demand small
130R1380
DrivePro Start-Up =C2=BD day pre-order small
130R1381
DrivePro Start-up =C2=BD day on-demand small
