132N6222
Part Number: 132N6222
Product Information

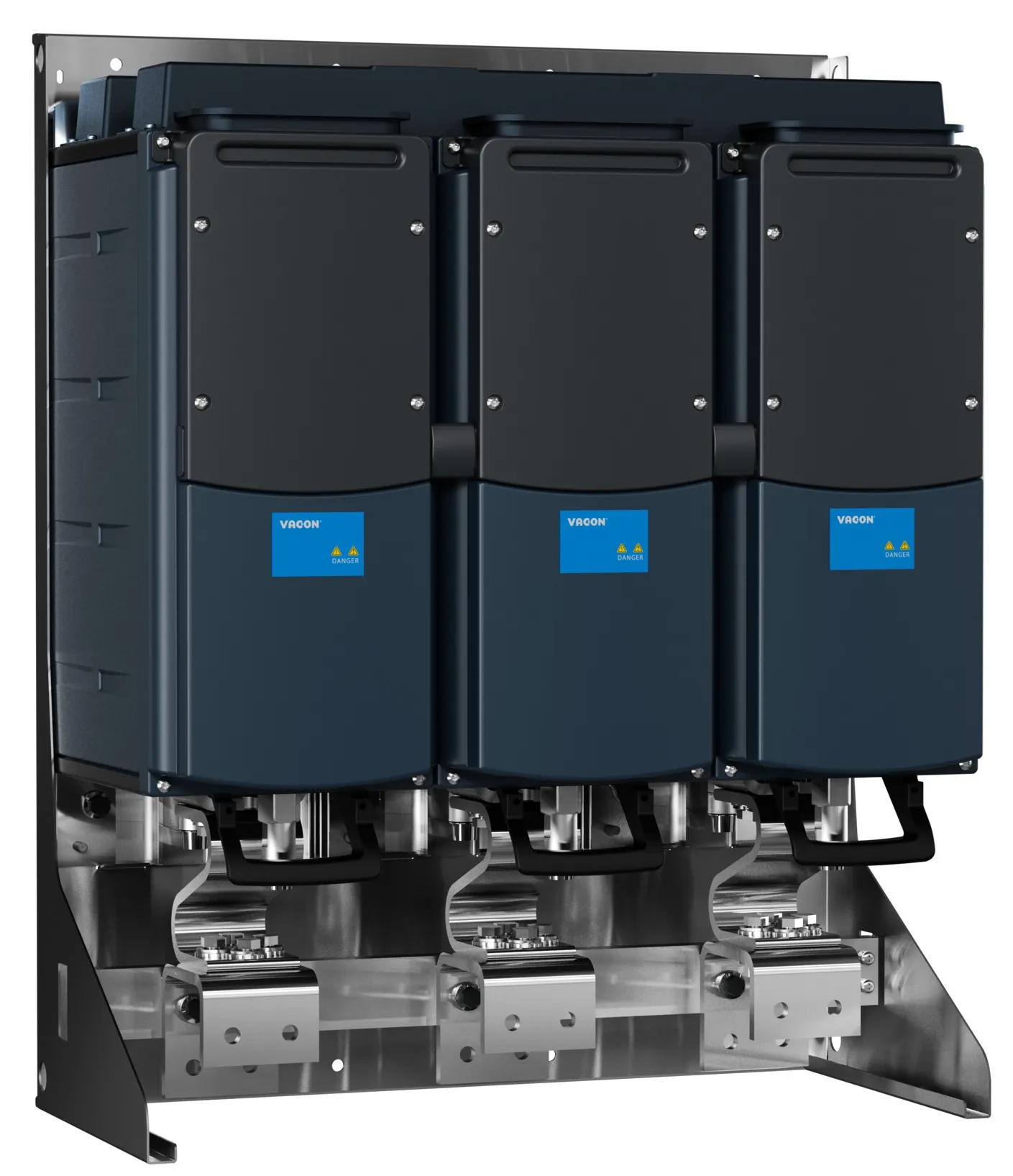

Extended Description
132N6222 Danfoss: NXA03855-A0T02PG-A1A2B500E9+FL23+GSNT+GABV+LPC2+SPXVVacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 385 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: 3RO(NO)D Slot: No boardE Slot: 2-port ethernetManual: EnglishFrame 61 liquid cooledOther options according to Model code
Gross weight
56 kg
Net weight
55 kg
Volume
0 l
EAN
5715253102757
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
P : LiquidCooled w. nickel element
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0385 : 385 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSNT : Without packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B5 : 3RO(NO)
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF02 : AFE application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GABV : Bureau Veritas
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH61 : Frame 61 liquid cooled
Sub family identification
+SPXV : Sub-configuration for VEO
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-038550
Typecode Part 2
-000076082
Salestext
CH6103855-0T
Modelcode01
NXA03855-A0T02PG-
Modelcode02
A1A2B500E9
Modelcode03
+FL23
Modelcode04
+GSNT
Modelcode05
+GABV
Modelcode06
+LPC2+SPXV
Calculated Net Weight [kg]
55
Calculated Gross Weight [kg]
56
Motor Power Low Overload [kW]
236
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
246X658X374
Continuous Current (NO) [A]
350
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-038550
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1328
Driver board NXW
181B1432
Earthing plate kit
181B1425
Door panel plate black
181B2005
DC link busbar kit minus CH64
