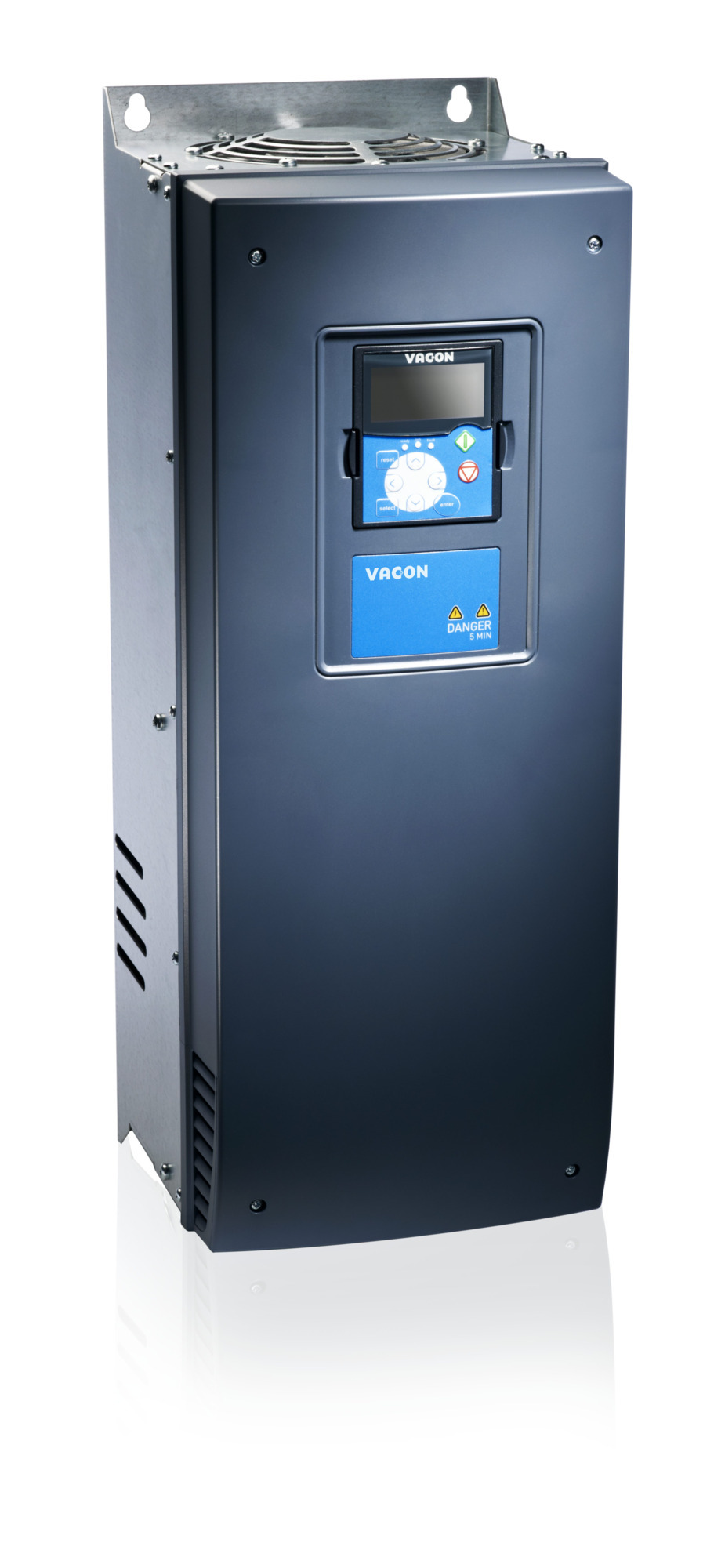

132N6268
Part Number: 132N6268
Product Information
Extended Description
132N6268 Danfoss: NXA01446-A0T02SG-A8A200B1E9+ARFIFF05+GSNT+DLES+GABV+LPC2+SPXVVacon Active Front-End Unit525 – 690 Vac (640-1100 Vdc), 144 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 2RO(NO/NC)C Slot: No boardD Slot: 6 programmableDI/DOE Slot: 2-port ethernetManual: SpanishFrame 09 INUOther options according to Model code
Gross weight
68 kg
Net weight
67 kg
Volume
0 l
EAN
5715253103211
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0144 : 144 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSNT : Without packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
B1 : 6 programmableDI/DO
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLES : Spanish
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF05 : AFE II application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GABV : Bureau Veritas
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI09 : Frame 09 INU
Sub family identification
+SPXV : Sub-configuration for VEO
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-014460
Typecode Part 2
-000076195
Salestext
FI0901446-0T
Modelcode01
NXA01446-A0T02SG-
Modelcode02
A8A200B1E9
Modelcode04
+ARFIFF05+GSNT
Modelcode05
+DLES+GABV
Modelcode06
+LPC2+SPXV
Calculated Net Weight [kg]
67
Calculated Gross Weight [kg]
68
Motor Power Low Overload [kW]
167
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X372
Continuous Current (NO) [A]
144
Continuous Current (HO) [A]
125
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-014460
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1490
DC - wire
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1617
Charging wire
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1432
Earthing plate kit
181B2119
Front cover IP54 light blue
130R1303
DrivePro Start-Up unit pre-order small
130R1324
DrivePro Start-Up ctrl. IFT test small
130R1321
DrivePro Start-Up special applic. small
130R1313
DrivePro Start-Up 1 day on-demand small
130R1312
DrivePro Start-Up 1 Day Pre-order small
130R1304
DrivePro Start-Up unit on-demand small
130R1380
DrivePro Start-Up =C2=BD day pre-order small
130R1381
DrivePro Start-up =C2=BD day on-demand small
