132U2080
Part Number: 132U2080
Product Information
Extended Description

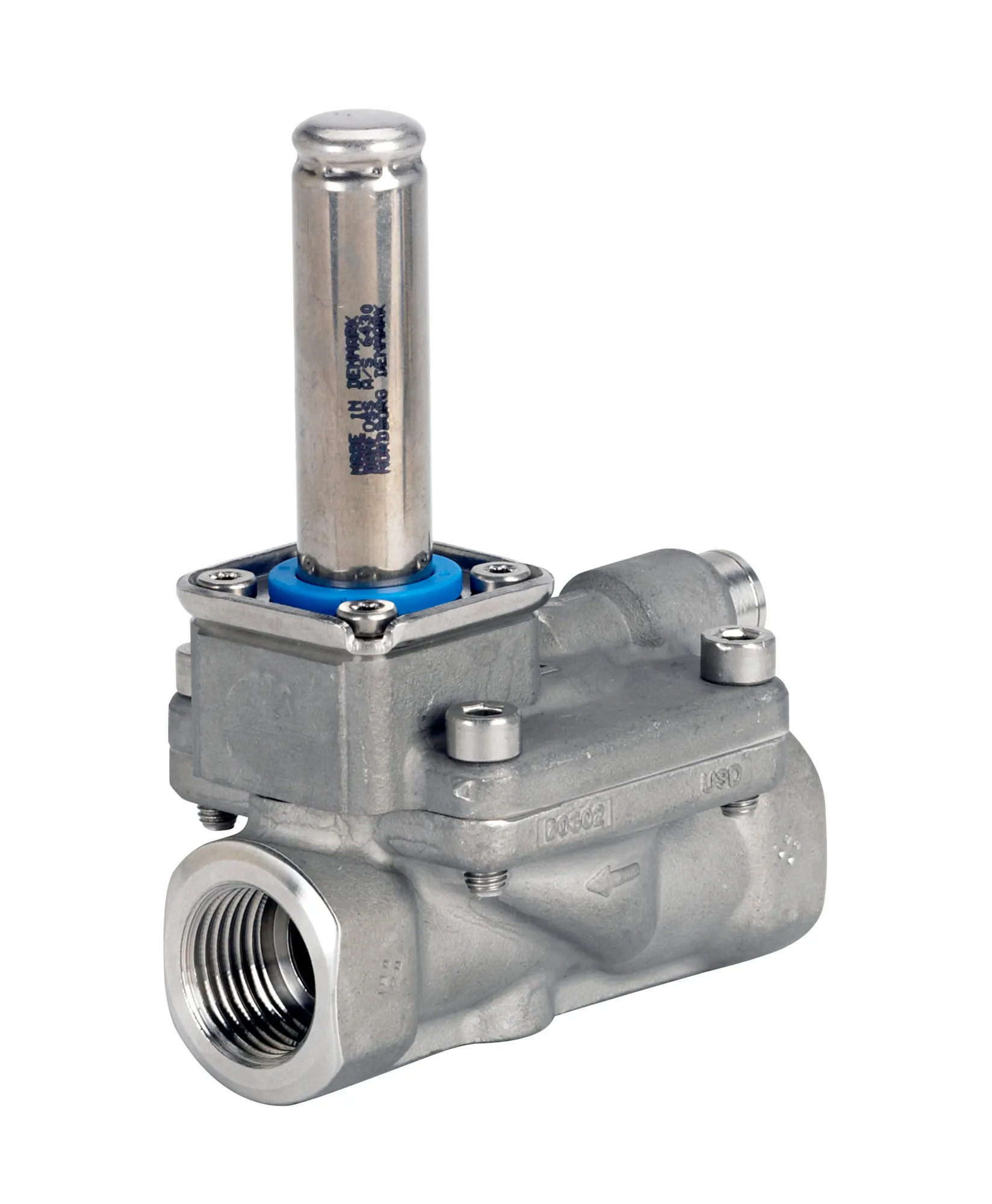

132U2080 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH, Body material: Stainless steel, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
1.181 Kilogram
Net weight
0.857 Kilogram
Volume
3.684 Liter
EAN
5702428527729
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
80 °C
Ambient temperature max. [°F]
176 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF
Body material
Stainless steel
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Stainless steel
Connection size [in]
3/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
9.25 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.351 psi
EEE category
5 small equipment (any external dimension 50 cm)
Est. time to open, water [ms]
40 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NC
In scope of WEEE
Yes
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
3/4 in
Kv value [mÂł/h]
8 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Open/close equalizing orifice
Optional Equalization orifice
Operation
Servo-operated (diaphragm)
Orifice size [mm]
20 mm
Orifice size fraction [in]
3/4 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
3/4 in
Packing format
Multi pack
Parts Program name
EV220B 15 - 50
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
24 pc
REACH Candidate List substances
No
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV220BW SS G 34E NC000
Type
EV220BW
Type designation
EV220BW 20
UK RoHS compliance
Out of scope
132U8021
Spare part, EV220BW 15-50 EPDM, Service kit
132U8080
Spare part, EV220BW 15-50 BE/SS, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
Solenoid valves for drinking water, Types EV220BW and EV228BW
Solenoid valve Type EV220BW 15-50
EPD for Solenoid Valve EV220BW / EV228BW 15-50, made form Stainless steel with coil
How to use solenoid valves _Making it easy to be efficient
Danfoss EU 033F0682.AA
Danfoss EU 033F0683.04
Danfoss EU 033F0683.05
Solenoid valves - Stainless steel
Solenoid valves – Polymer, Bronze, Brass, Cast iron
RISE SC0155-18
Danfoss MD 033F0232.AA
Danfoss MD 033F1135.00
UL MH7648
F132U1580_EV220BW_IMG7_15-50_SS_valve_NC_az
EV220BW_DN15-50_SS_BB Coil_RFA
EV220BW_DN15-50_SS_BE Coil_RFA
