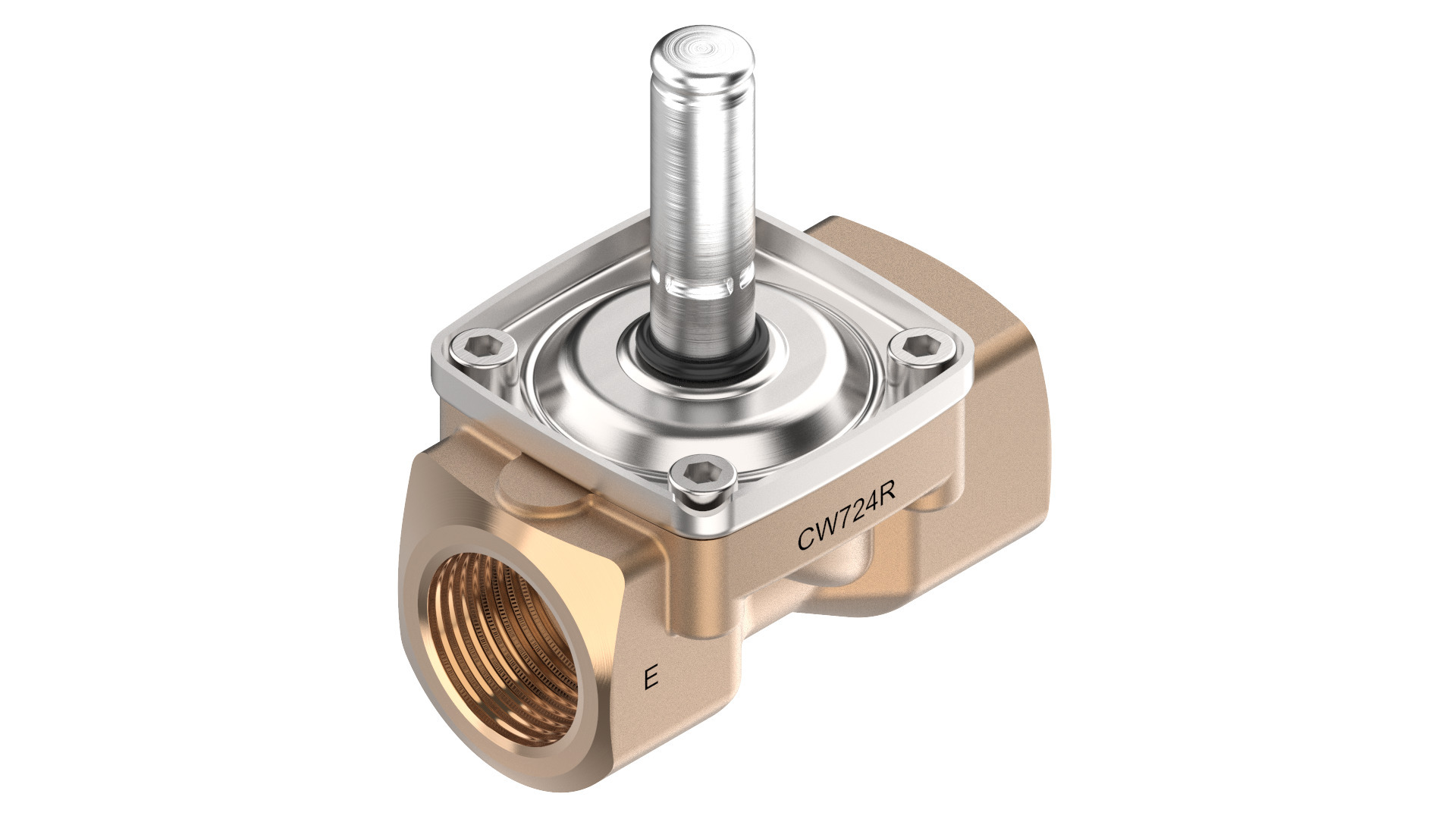

132U2201

Part Number: 132U2201
132U2201
Manufacturer
Danfoss
Part number
132U2201
Category

Product Information

Extended Description

132U2201 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH; WRAS, Body material: Eco brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
0.954 Kilogram
Net weight
0.285 Kilogram
Volume
1.295 Liter
EAN
5715162136089
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
80 °C
Ambient temperature max. [°F]
176 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF,WRAS
Approval comments
WRAS (0 – 85°C)
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
1
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
5.8 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
Est. time to close, water [ms]
500 ms
Est. time to open, water [ms]
200 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NO
Kv value [mÂł/h]
5 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
22 mm
Orifice size fraction [in]
7/8 in
Packing format
Multi pack
Parts Program name
EV221BW 10 - 22
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
12 pc
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV221BW 22BE G 1E NO000
Type
EV221BW
Type designation
EV221BW 22
UK RoHS compliance
Out of scope
132U8023
Spare part, EV221BW 20/22BE NO, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
Servo-operated 2-2-way solenoid valves EV221BW 10 - EV221BW 22 Solenoid valve Type EV221BW 10 - 22 EPD for Solenoid Valve EV221BW 10-22 made from Brass & including Coil How to use solenoid valves _Making it easy to be efficient Danfoss EU 033F0683.04 Danfoss EU 033F0683.05 Solenoid valves – Polymer, Bronze, Brass, Cast iron RISE SC0155-18 Danfoss MD 033F0232.AA Danfoss MD 033F1135.00 UL MH7648 WRAS - 2205077 WRAS 2205078 Solenoid valve, EV221BW, G, 1, EPDM, NO 132U2201
