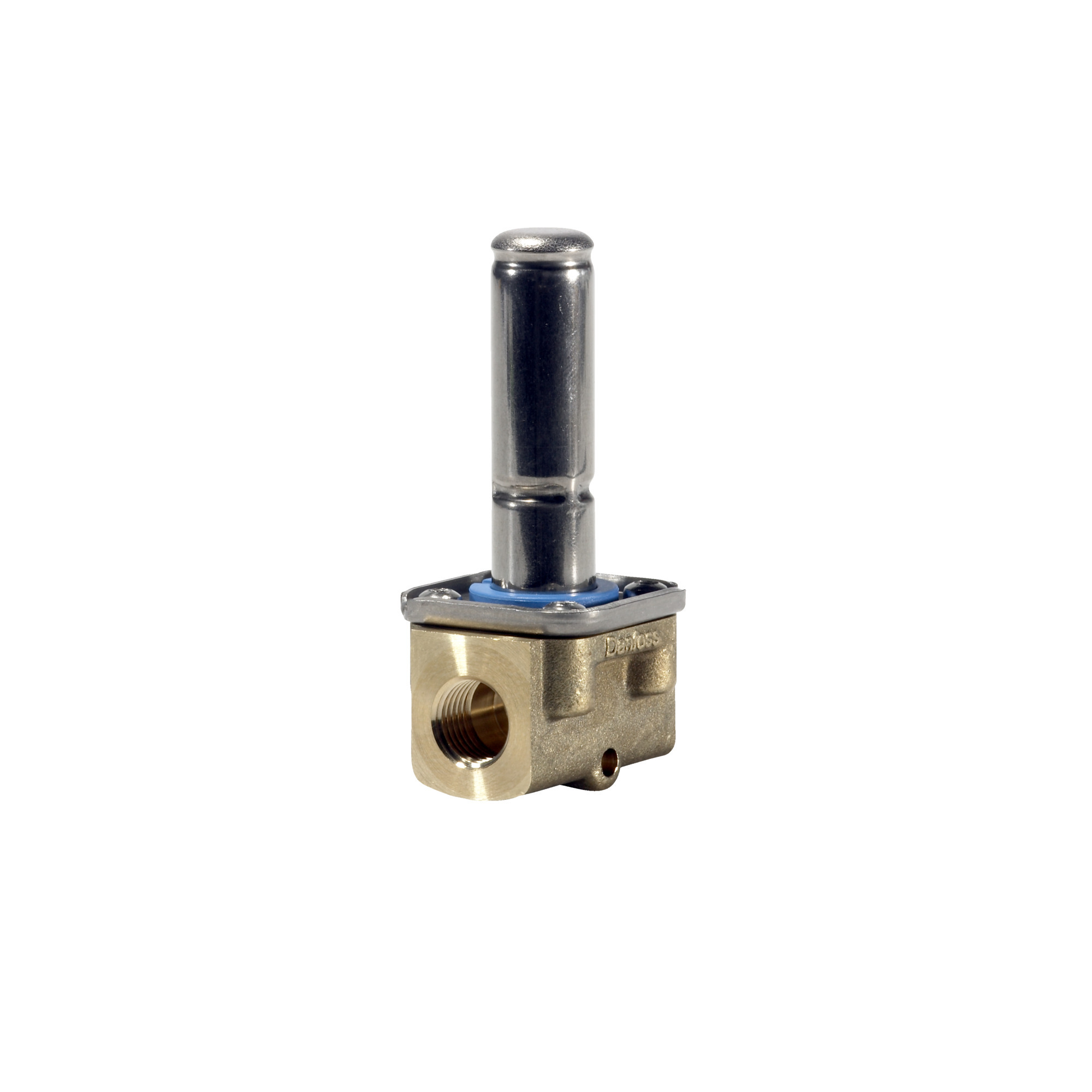

132U2301

Part Number: 132U2301
132U2301
Manufacturer
Danfoss
Part number
132U2301
Category

Product Information

Extended Description

132U2301 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH, Body material: Eco brass, Operation: Direct-operated, Number of ways: 2/2
Gross weight
0.169 Kilogram
Net weight
0.142 Kilogram
Volume
0.253 Liter
EAN
5702428544184
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
70 °C
Ambient temperature max. [°F]
158 °F
Application
Closed and Drain
Approval
ACS,PZH,RISE,SINTEF
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
1/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
0.17 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
0 psi
Est. time to close, water [ms]
20 ms
Est. time to open, water [ms]
20 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NO
Kv value [mÂł/h]
0.15 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
0 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
32 °F
Number of ways
2/2
Operation
Direct-operated
Orifice size [mm]
2 mm
Orifice size fraction [in]
5/64 in
Packing format
Multi pack
Parts Program name
EV210BW
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
20 pc
REACH Candidate List substances
No
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV210BW 2BE G 14E NO000
Type
EV210BW
Type designation
EV210BW 2
UK RoHS compliance
Out of scope
UNSPSC CODE
40141605
132U8003
Spare part, EV210BW 1,5-4,5 BE NO, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
