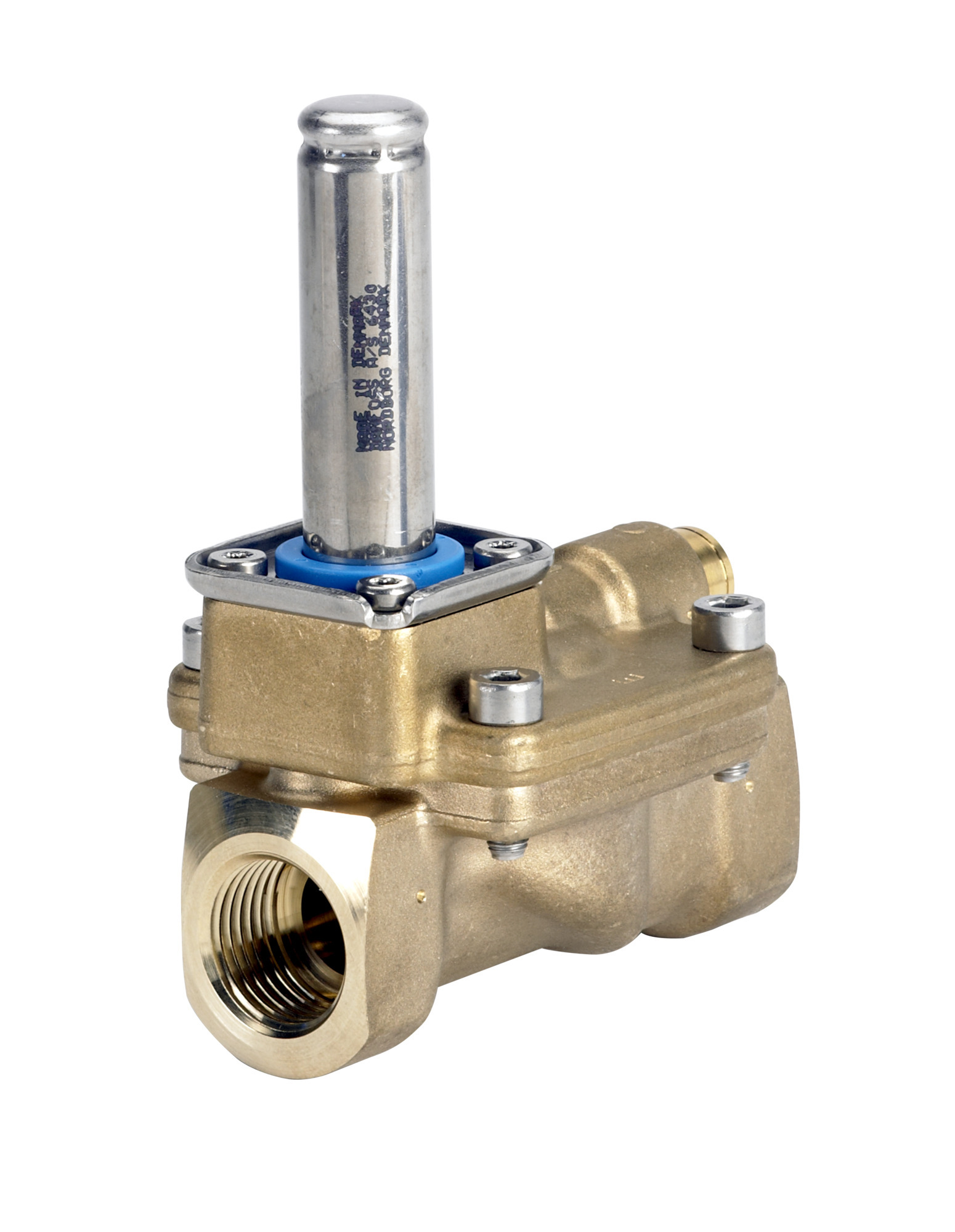

132U2400

Part Number: 132U2400
132U2400
Manufacturer
Danfoss
Part number
132U2400
Category

Product Information

Extended Description

132U2400 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH; WRAS, Body material: Eco brass, Operation: Latching, Number of ways: 2/2
Gross weight
0.718 Kilogram
Net weight
0.685 Kilogram
Volume
3.684 Liter
EAN
5702428527743
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
60 °C
Ambient temperature max. [°F]
140 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF,WRAS
Approval comments
WRAS (0 – 70°C)
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
4.6 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
EEE category
5 small equipment (any external dimension 50 cm)
EPD available
Yes
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
UN
In scope of WEEE
Yes
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
1/2 in
Kv value [mÂł/h]
4 mÂł/h
Max. test pressure [bar]
25 bar
Max. test pressure [psig]
363 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Latching
Orifice size [mm]
15 mm
Orifice size fraction [in]
5/8 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
1/2 in
Packing format
Multi pack
Parts Program name
EV228BW
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Seal Material
EPDM
Specification key
EV228BW 15BE G 12E UN000
Type
EV228BW
Type designation
EV228BW 15
UK RoHS compliance
Out of scope
132U8016
Spare part, EV220BW 15-50 EPDM, Service kit
132U8082
Spare part, EV228BW 15-50 EPDM, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
Solenoid valves for drinking water, Types EV220BW and EV228BW Solenoid valve Type EV228BW 15-50 + Coil type BB/BE DC EPD for solenoid valve 132U1500 & coil 018F7351 EPD for Solenoid Valve EV220BW / EV228BW 15-50, made from Brass with coil How to use solenoid valves _Making it easy to be efficient Danfoss EU 033F0682.AA Danfoss EU 033F0683.04 Danfoss EU 033F0683.05 Solenoid valves - Stainless steel Solenoid valves – Polymer, Bronze, Brass, Cast iron RISE SC0155-18 WRAS 2104039 Danfoss MD 033F0232.AA Danfoss MD 033F1134.00 F132U1500_EV220BW_IMG5_15-25_ECO_brass_valve_NC_az F132U1500_EV220BW_IMG16_15-25_ECO_brass_valve_NC_Coil_az
