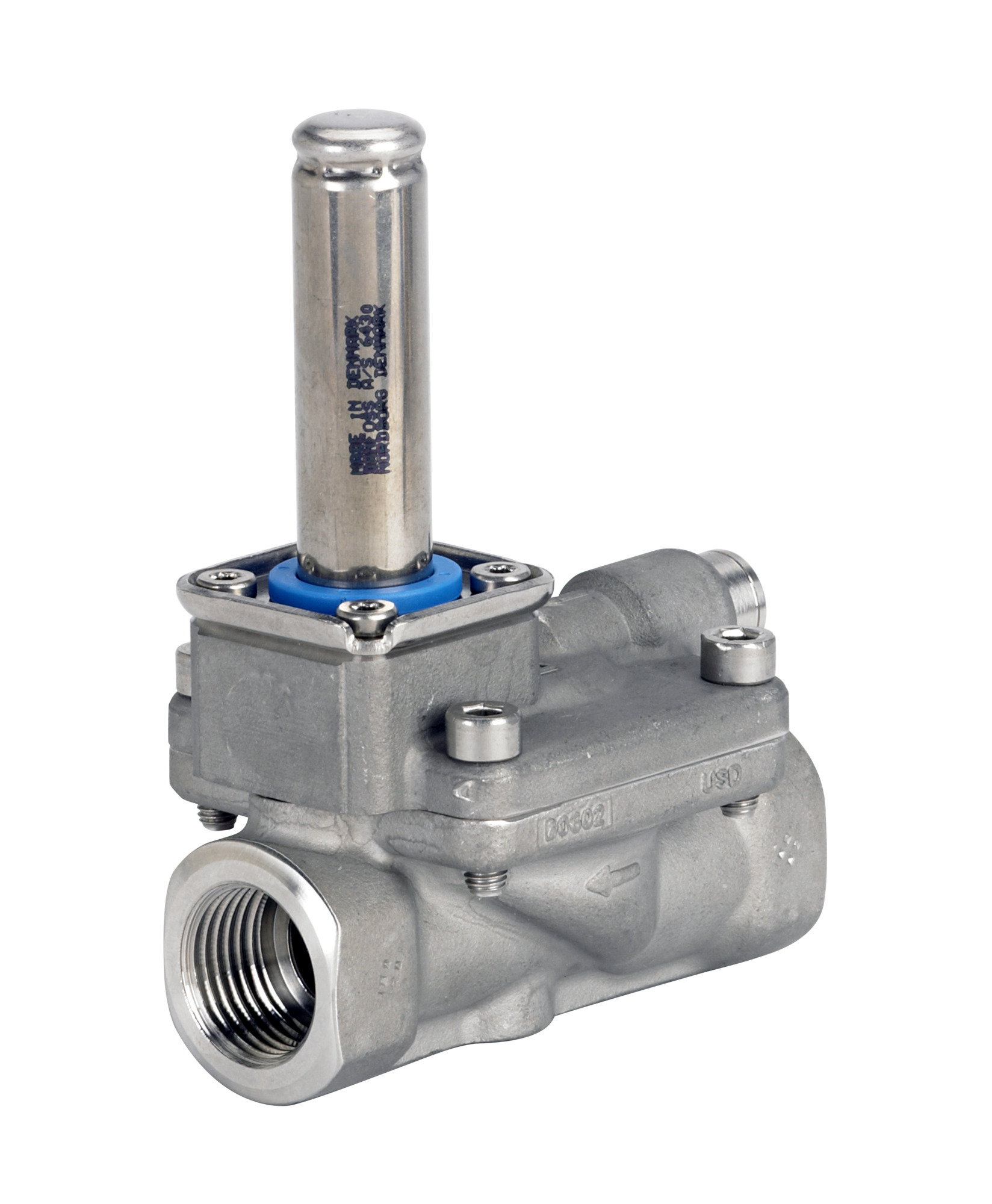

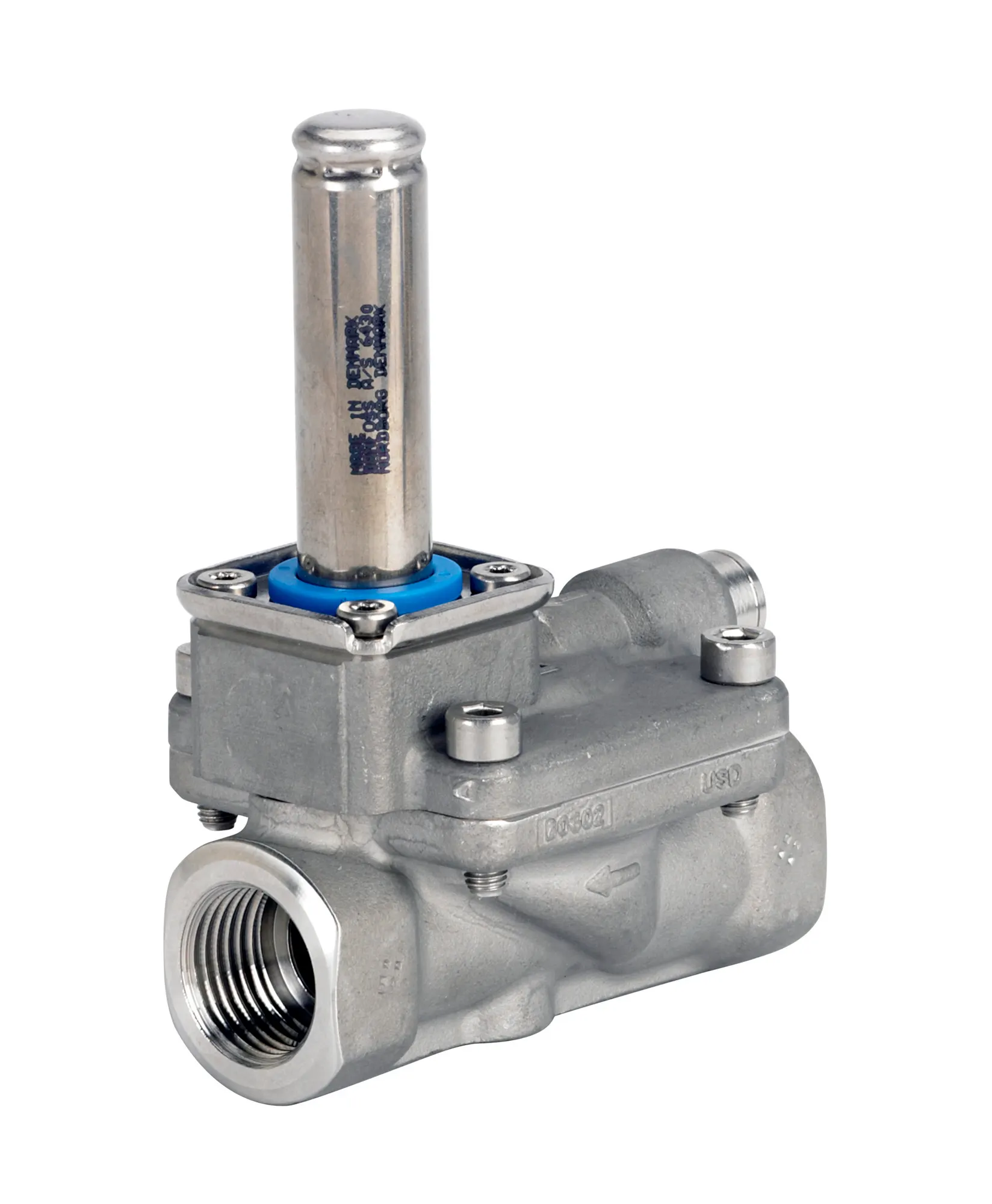

132U2401

Part Number: 132U2401
132U2401
Manufacturer
Danfoss
Part number
132U2401
Category

Product Information

Extended Description

132U2401 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH, Body material: Stainless steel, Operation: Latching, Number of ways: 2/2
Gross weight
0.667 Kilogram
Net weight
0.634 Kilogram
Volume
3.684 Liter
EAN
5702428527750
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
60 °C
Ambient temperature max. [°F]
140 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF
Body material
Stainless steel
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Stainless steel
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
4.6 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
UN
In scope of WEEE
Yes
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
1/2 in
Kv value [mÂł/h]
4 mÂł/h
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Latching
Orifice size [mm]
15 mm
Orifice size fraction [in]
5/8 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
1/2 in
Packing format
Multi pack
Parts Program name
EV228BW
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
24 pc
Seal Material
EPDM
Specification key
EV228BW 15SS G 12E UN000
Type
EV228BW
Type designation
EV228BW 15
UK RoHS compliance
Out of scope
132U8016
Spare part, EV220BW 15-50 EPDM, Service kit
132U8082
Spare part, EV228BW 15-50 EPDM, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
