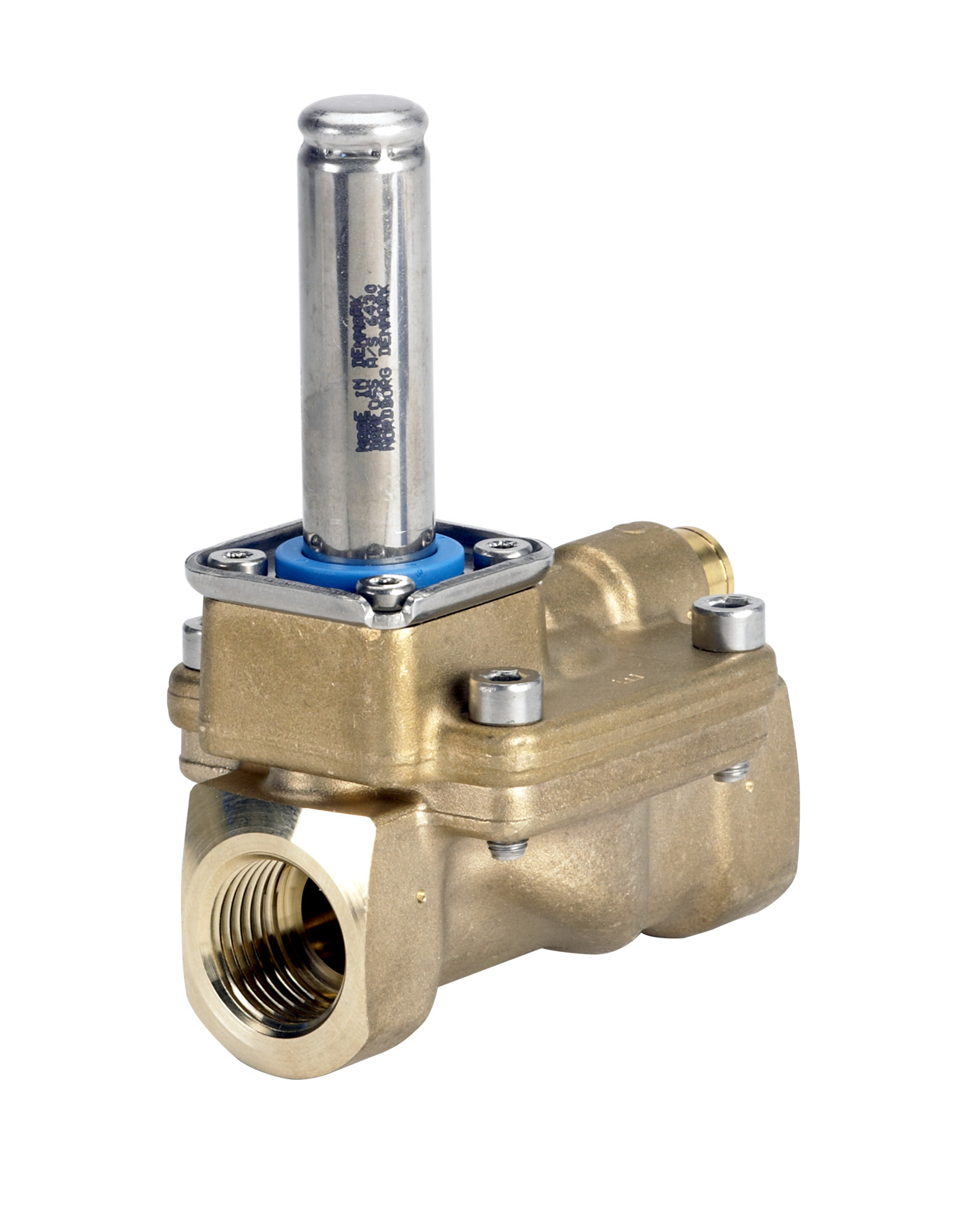

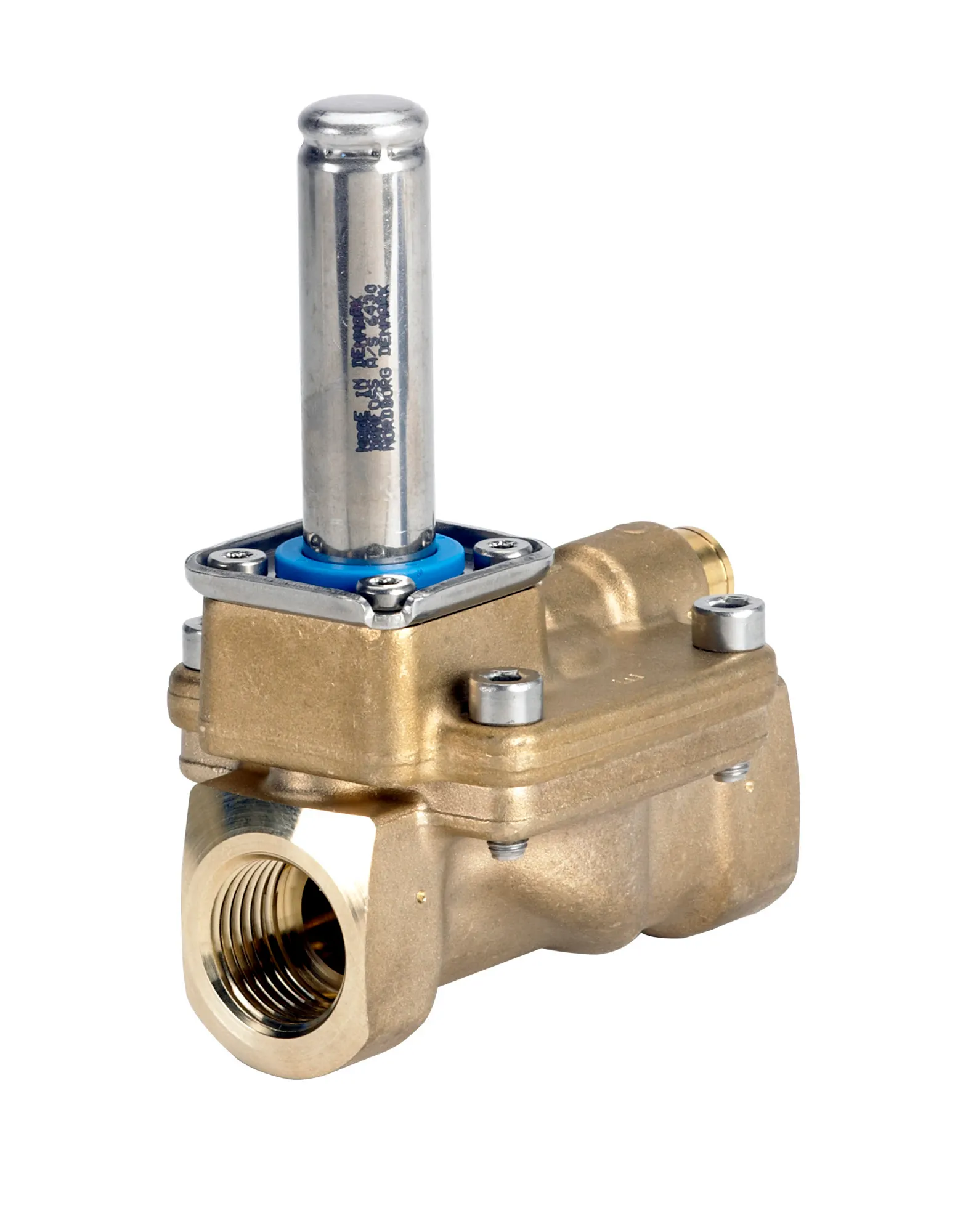

132U2402

Part Number: 132U2402
132U2402
Manufacturer
Danfoss
Part number
132U2402
Category

Product Information

Extended Description

132U2402 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH; WRAS, Body material: Eco brass, Operation: Latching, Number of ways: 2/2
Gross weight
0.905 Kilogram
Net weight
0.868 Kilogram
Volume
3.684 Liter
EAN
5702428526784
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
60 °C
Ambient temperature max. [°F]
140 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF,WRAS
Approval comments
WRAS (0 – 70°C)
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
3/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
9.25 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
EPD available
Yes
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
UN
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
3/4 in
Kv value [mÂł/h]
8 mÂł/h
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Latching
Orifice size [mm]
20 mm
Orifice size fraction [in]
3/4 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
3/4 in
Packing format
Multi pack
Parts Program name
EV228BW
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
24 pc
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV228BW 20B G 34E UN000
Type
EV228BW
Type designation
EV228BW 20
UK RoHS compliance
Out of scope
132U8021
Spare part, EV220BW 15-50 EPDM, Service kit
132U8082
Spare part, EV228BW 15-50 EPDM, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
