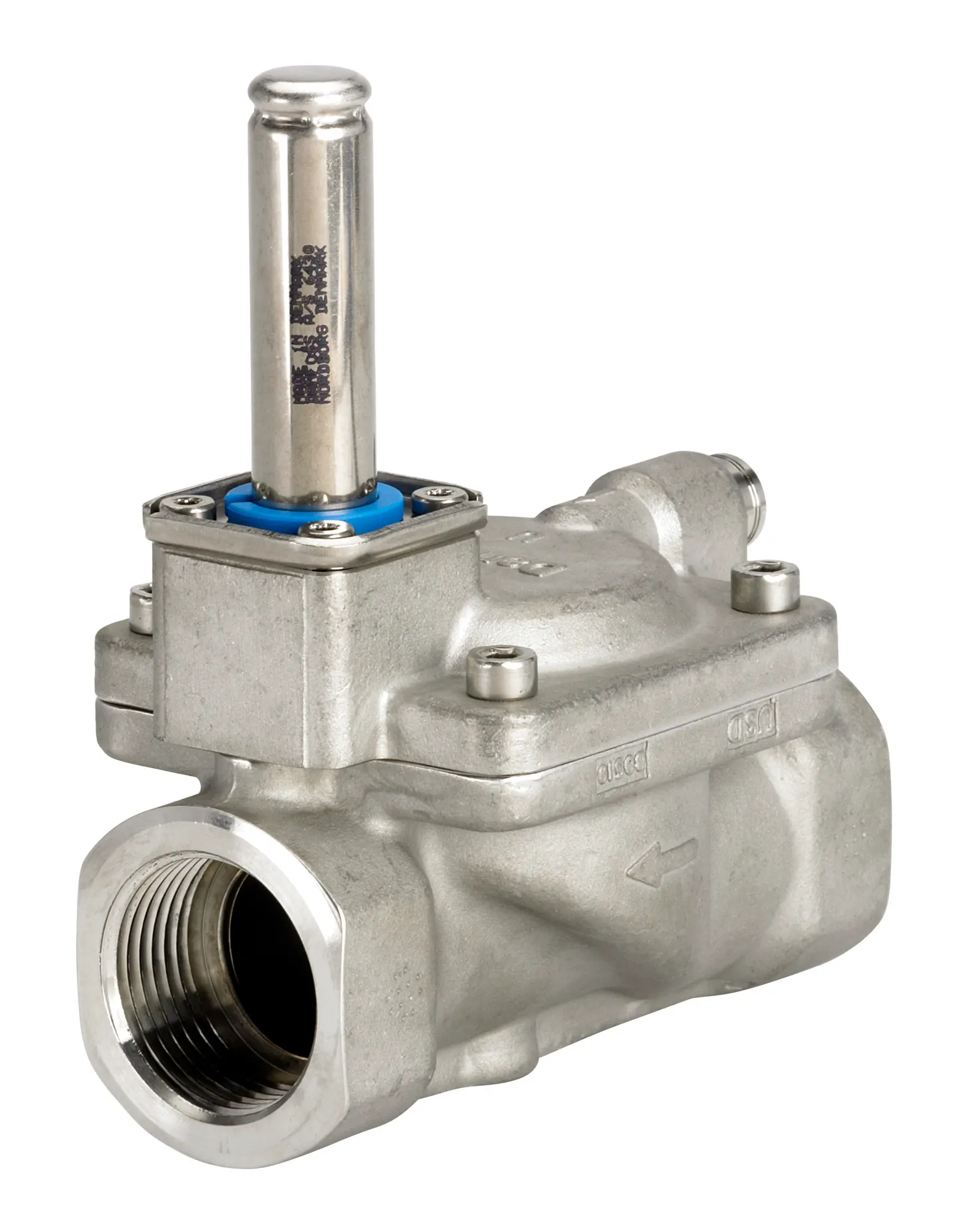

132U2407
Part Number: 132U2407
Product Information
Extended Description
132U2407 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH; CE; UKCA, Body material: Stainless steel, Operation: Latching, Number of ways: 2/2
Gross weight
2.239 Kilogram
Net weight
1.863 Kilogram
Volume
7.334 Liter
EAN
5702428527781
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
60 °C
Ambient temperature max. [°F]
140 °F
Application
Open
Approval
ACS,CE,PZH,RISE,SINTEF,UKCA
Body material
Stainless steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Stainless steel
Connection size [in]
1 1/4
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
20.8 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
EEE category
5 small equipment (any external dimension 50 cm)
EPD available
Yes
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Function
UN
In scope of WEEE
Yes
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
1 1/4 in
Kv value [mÂł/h]
18 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Max. Working Pressure note
Liquids: max 10 bar/145 psi
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Neutral media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Open/close equalizing orifice
Optional Equalization orifice
Operation
Latching
Orifice size [mm]
32 mm
Orifice size fraction [in]
1 1/4 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
1 1/4 in
Packing format
Single pack
Parts Program name
EV220BW 15 - 50
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
1 pc
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV228BW 32SS G 114E UN000
Type
EV228BW
Type designation
EV228BW 32
UK RoHS compliance
Out of scope
132U8033
Spare part, EV220BW 15-50 EPDM, Service kit
132U8082
Spare part, EV228BW 15-50 EPDM, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
Solenoid valves for drinking water, Types EV220BW and EV228BW
Solenoid valve Type EV228BW 15-50 + Coil type BB/BE DC
EPD for solenoid valve 132U2401 & coil 018F7351
EPD for Solenoid Valve EV220BW / EV228BW 15-50, made form Stainless steel with coil
How to use solenoid valves _Making it easy to be efficient
Danfoss EU 033F0682.AA
Solenoid valves - Stainless steel
Solenoid valves – Polymer, Bronze, Brass, Cast iron
RISE SC0155-18
Danfoss MD 033F1134.00
Danfoss UK 033F1143.AB
F132U2580_EV220BW_IMG8_15-50_SS_valve_NC_az
