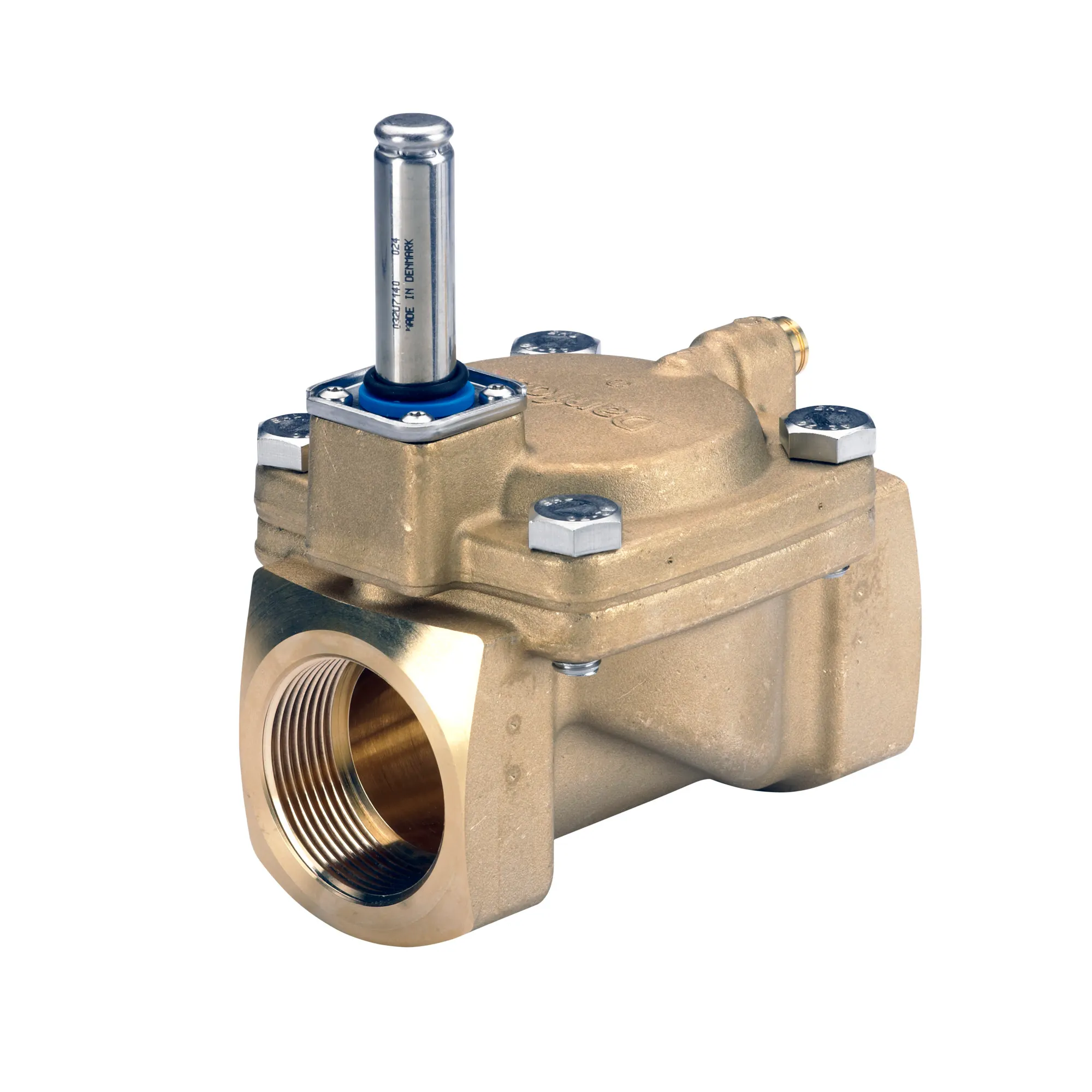

132U2408
Part Number: 132U2408
Product Information
Extended Description
132U2408 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH, Body material: Eco brass, Operation: Latching, Number of ways: 2/2
Gross weight
3.19 Kilogram
Net weight
2.815 Kilogram
Volume
7.334 Liter
EAN
5715162493632
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
80 °C
Ambient temperature max. [°F]
176 °F
Application
Open
Approval
ACS,PZH,RISE,SINTEF
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
1 1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
27.7 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Function
UN
In scope of WEEE
Yes
Inlet connection standard
ISO 228-1
Inlet connection type
G
Inlet Internal/External
Internal
Inlet size [in]
1 1/2 in
Kv value [mÂł/h]
24 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Max. Working Pressure note
Liquids: max 10 bar/145 psi
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Open/close equalizing orifice
Optional Equalization orifice
Operation
Latching
Orifice size [mm]
40 mm
Orifice size fraction [in]
1 1/2 in
Outlet connection standard
ISO 228-1
Outlet connection type
G
Outlet Internal/External
Internal
Outlet size [in]
1 1/2 in
Packing format
Single pack
Parts Program name
EV228BW 15 - 50
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
1 pc
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV228BW 40BE G 112E UN000
Type
EV228BW
Type designation
EV228BW 40
UK RoHS compliance
Out of scope
132U8041
Spare part, EV220BW 15-50 EPDM, Service kit
132U8082
Spare part, EV228BW 15-50 EPDM, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
