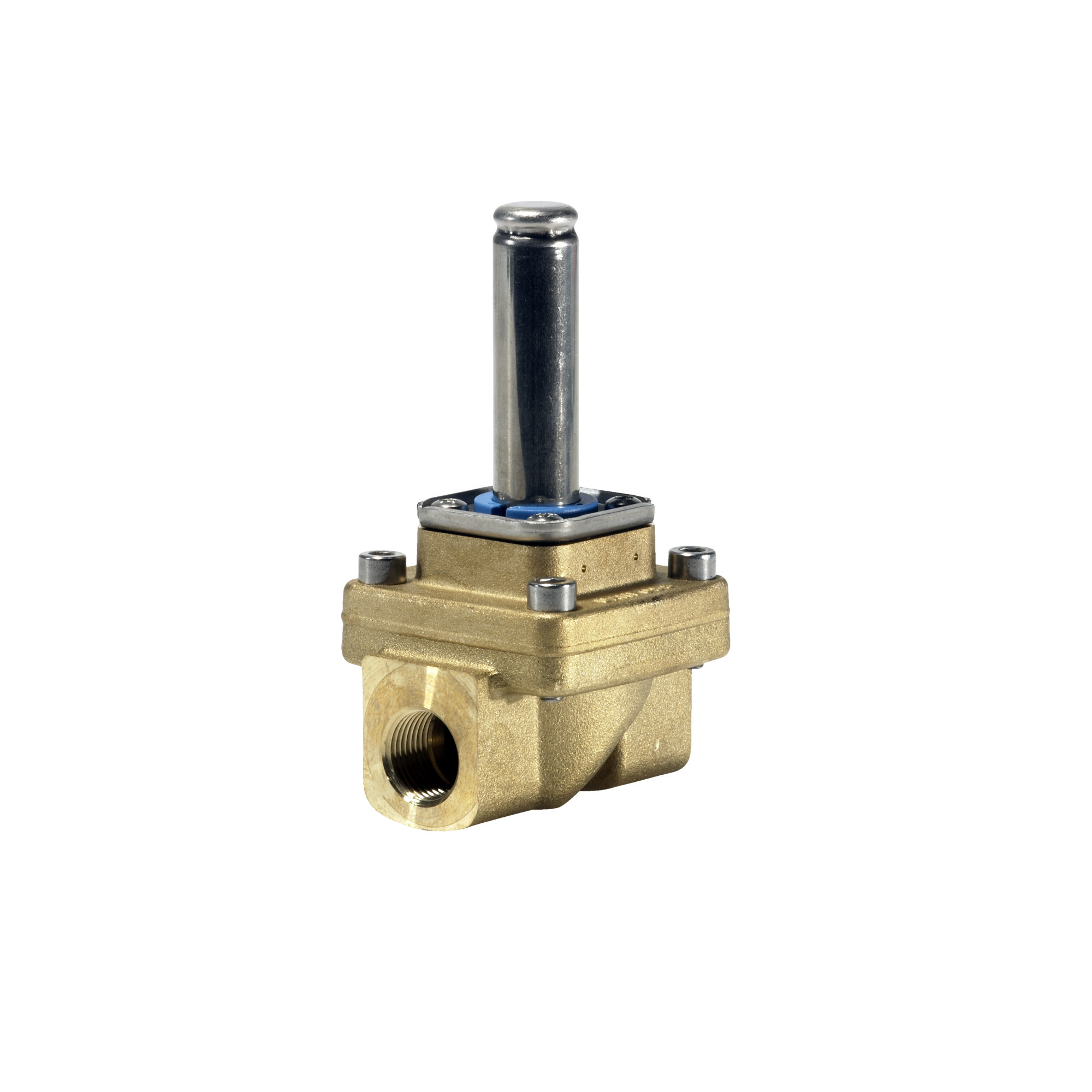

132U2452

Part Number: 132U2452
132U2452
Manufacturer
Danfoss
Part number
132U2452
Category

Product Information

Extended Description

132U2452 Danfoss: Media recommendations: Drinking Water&Heating ECO/SS, Approval: SINTEF; RISE; ACS; PZH; WRAS, Body material: Eco brass, Operation: Assisted lift operated, Number of ways: 2/2
Gross weight
0.544 Kilogram
Net weight
0.534 Kilogram
Volume
3.684 Liter
EAN
5702428544153
Actuator
BW
Actuator size
13.5 mm
Actuator size [in]
0.53 in
Actuator system [mm]
13.5 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Closed and Drain
Approval
ACS,PZH,RISE,SINTEF,WRAS
Approval comments
WRAS (0 – 90°C)
Body material
Eco brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Eco brass
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
4.6 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
0 psi
Est. time to close, water [ms]
100 ms
Est. time to open, water [ms]
100 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NC
Kv value [mÂł/h]
4 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Drinking Water&Heating ECO/SS
Media tolerance comments
Slightly aggressive media
Medium temperature range [°C] [max]
90 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
194 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Assisted lift operated
Orifice size [mm]
12 mm
Orifice size fraction [in]
1/2 in
Packing format
Multi pack
Parts Program name
EV250BW
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
24 pc
REACH Candidate List substances
No
Seal Material
EPDM
Serviceable
Solenoid valve spare parts
Specification key
EV250BW 12BE G 12E NC000
Type
EV250BW
Type designation
EV250BW 12
UK RoHS compliance
Out of scope
132U8012
Spare part, EV250BW 10/12BE NC, Service kit
018F7351
Solenoid coil, BB230AS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
018F7358
Solenoid coil, BB024AS, DIN Spade, Supply voltage [V] AC: 24, Multi pack
018F7397
Solenoid coil, BB024DS, DIN Spade, Multi pack
018F7396
Solenoid coil, BB012DS, DIN Spade, Multi pack
