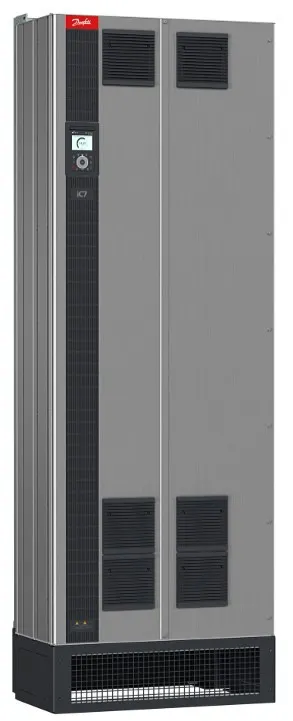

132X0072

Part Number: 132X0072
132X0072
Manufacturer
Danfoss
Part number
132X0072
Category

Product Information

Extended Description

132X0072 Danfoss: NXA03256-A0T02SG-A1A2B5D200+MASG+ARFIFF03+GSNT+GAMA+LPC2+SPXEVacon Active Front-End Unit525 – 690 Vac (640-1100 Vdc), 325 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: 3RO(NO)D Slot: SysBus(1fiber), CAN-MonBusE Slot: No boardManual: EnglishFrame 10 INUOther options according to Model code
Gross weight
98 kg
Net weight
97 kg
Volume
0 l
EAN
5715253147703
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0325 : 325 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSNT : Without packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B5 : 3RO(NO)
Option Slot D
D2 : SysBus(1fiber), CAN-MonBus
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GAMA : MarineAppr w case specific req
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI10 : Frame 10 INU
Sub family identification
+SPXE : Sub-config for ExtDeliPartner
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-032560
Typecode Part 2
-000081069
Salestext
FI1003256-0T
Modelcode01
NXA03256-A0T02SG-
Modelcode02
A1A2B5D200
Modelcode03
+MASG
Modelcode04
+ARFIFF03+GSNT
Modelcode05
+GAMA
Modelcode06
+LPC2+SPXE
Calculated Net Weight [kg]
97
Calculated Gross Weight [kg]
98
Motor Power Low Overload [kW]
377
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X552
Continuous Current (NO) [A]
325
Continuous Current (HO) [A]
261
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-032560
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
176F3427
IGBT snubber cap 1250V 1.0uF wide mount
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6660
Busbar, current sensor, E2h, E4h, Fx12
176F6672
INSUL,PLAS,PC,GD,PCA,SUPPORT,P4001
176F6689
Busbar terminal, E1h=E2=80=93E4h, Fx11-12
176F6686
Terminal suppt mains, motor E1h=E2=80=93E4h
176F6683
Busbar/insulator set 500V E2h,E4h,Fx12
176F6677
Insul, plastic, active inrush, E1h=E2=80=93E4h
176F6676
Busbar AC input-inrush PCA E2h,E3h, Fx12
176F6674
Busbar, IGBT AC output E2h, E4h, Fx12
176F4037
400mm Pedestal kit, FK12/FB12
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N9614
OF7P2-S-AF-46-380A-060-05-T1-E20
130R1090
DrivePro ExWarr Onsite PG10 24 Months
130R1095
DrivePro ExWarr Onsite PG10 54 Months
130R1091
DrivePro ExWarr Onsite PG10 30 Months
130R1096
DrivePro ExWarr Onsite PG10 60 Months
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1092
DrivePro ExWarr Onsite PG10 36 Months
130R1093
DrivePro ExWarr Onsite PG10 42 Months
