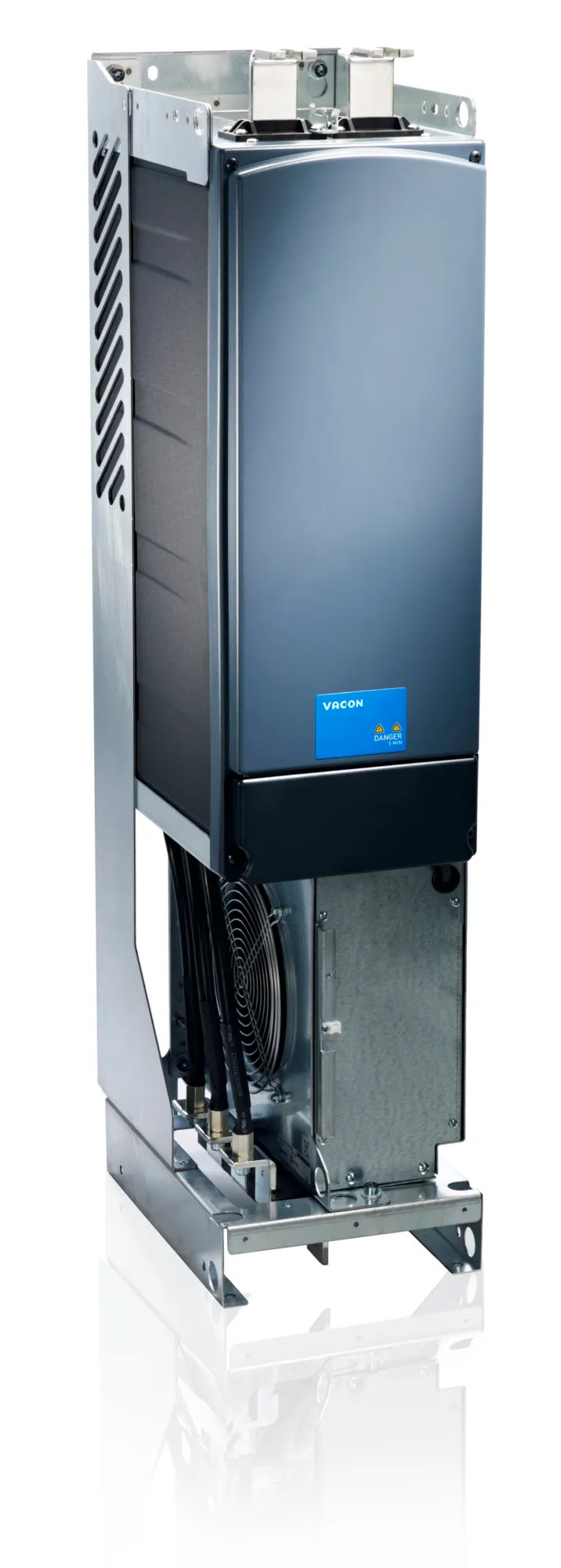

132X0369
Part Number: 132X0369
Product Information
Extended Description
132X0369 Danfoss: NXP23406-A0T0TWG-A1B4A5B5CI+APFIFF09+DLFR+GABVVacon NXP Frequency Converter525 – 690 Vac (640-1100 Vdc), 2340 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: AI,2AO(mA,isol),+24V/EXTC Slot: 3DI(Enc.10-24V),15/24VoutD Slot: 3RO(NO)E Slot: Modbus/TCPManual: French2xFrame 74 liquid cooledOther options according to Model code
Gross weight
1081 kg
Net weight
1080 kg
Volume
0 l
EAN
5715253150970
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
2340 : 2340 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
T : 12-pulse with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot C
A5 : 3DI(Enc.10-24V),15/24Vout
Option Slot D
B5 : 3RO(NO)
Option Slot E
CI : Modbus/TCP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLFR : French
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+APFIFF09 : Marine application NXP,NXS
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
+GABV : Bureau Veritas
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
DH74 : 2xFrame 74 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-234060
Typecode Part 2
-000081368
Salestext
DH7423406-0T
Modelcode01
NXP23406-A0T0TWG-
Modelcode02
A1B4A5B5CI
Modelcode04
+APFIFF09
Modelcode05
+DLFR+GABV
Calculated Net Weight [kg]
1080
Calculated Gross Weight [kg]
1081
Motor Power Low Overload [kW]
2100
Motor Power High Overload [kW]
1900
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
2127
Continuous Current (HO) [A]
1560
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-234060
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1588
EMC-shield - feed busbar insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1312
Busbar kit
181B1432
Earthing plate kit
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
VACON=C2=AE NX All in One Application Guide
VACON NXP and VACON NXC Selection Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NXP System Drive Hardware Manual
Cybersecurity for Vacon NX Drives
VACON=C2=AE NX Active Front End User Manual
VACON=C2=AE NX Filters User Manual
VACON NXP and VACON NXC Selection Guide - US English
Danfoss MD 00779152 B2
UL E171278
Danfoss EU-UK 00736949 E1
ABS 24-00T2545447-PDA
ABS 24-00T2545449-PDA
BV 14584-DO BV
CRS 03-001990-031694
DNV GL TAE000013B Rev. 4
KR HMB 28683-AC001
KR HMB28683-AC003
Vacon_Common_DCbus_FI10
OPTA1_VACON_NX
