132X0478

Part Number: 132X0478
132X0478
Manufacturer
Danfoss
Part number
132X0478
Category

Product Information

Extended Description

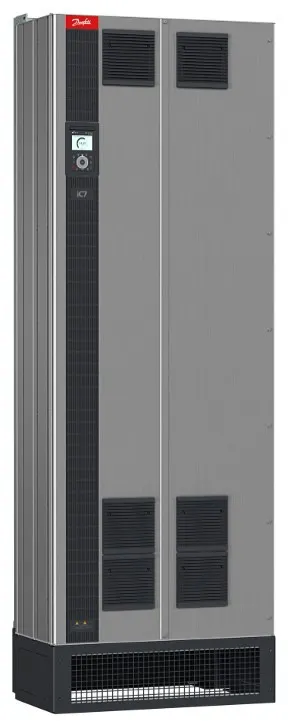

132X0478 Danfoss: NXA13005-A0T02SG-A1A2D7D2E9+MASG+ARFIFF03+GANK+LPC2Vacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 1300 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: SysBus(1fiber), CAN-MonBusE Slot: 2-port ethernetManual: EnglishFrame 13 INUOther options according to Model code
Gross weight
293 kg
Net weight
292 kg
Volume
0 l
EAN
5715253152066
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
1300 : 1300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
D2 : SysBus(1fiber), CAN-MonBus
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GANK : Class NK
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI13 : Frame 13 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-130050
Typecode Part 2
-000081502
Salestext
FI1313005-0T
Modelcode01
NXA13005-A0T02SG-
Modelcode02
A1A2D7D2E9
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+GANK
Modelcode06
+LPC2
Calculated Net Weight [kg]
292
Calculated Gross Weight [kg]
293
Motor Power Low Overload [kW]
874
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
708X1030X553
Continuous Current (NO) [A]
1300
Continuous Current (HO) [A]
1150
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-130050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
176F3427
IGBT snubber cap 1250V 1.0uF wide mount
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6660
Busbar, current sensor, E2h, E4h, Fx12
176F6672
INSUL,PLAS,PC,GD,PCA,SUPPORT,P4001
176F6689
Busbar terminal, E1h=E2=80=93E4h, Fx11-12
176F6686
Terminal suppt mains, motor E1h=E2=80=93E4h
176F6683
Busbar/insulator set 500V E2h,E4h,Fx12
176F6677
Insul, plastic, active inrush, E1h=E2=80=93E4h
176F6676
Busbar AC input-inrush PCA E2h,E3h, Fx12
176F6674
Busbar, IGBT AC output E2h, E4h, Fx12
176F4037
400mm Pedestal kit, FK12/FB12
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N9614
OF7P2-S-AF-46-380A-060-05-T1-E20
130R1090
DrivePro ExWarr Onsite PG10 24 Months
130R1095
DrivePro ExWarr Onsite PG10 54 Months
130R1091
DrivePro ExWarr Onsite PG10 30 Months
130R1096
DrivePro ExWarr Onsite PG10 60 Months
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1092
DrivePro ExWarr Onsite PG10 36 Months
130R1093
DrivePro ExWarr Onsite PG10 42 Months
