132X1067

Part Number: 132X1067
132X1067
Manufacturer
Danfoss
Part number
132X1067
Category

Product Information

Extended Description

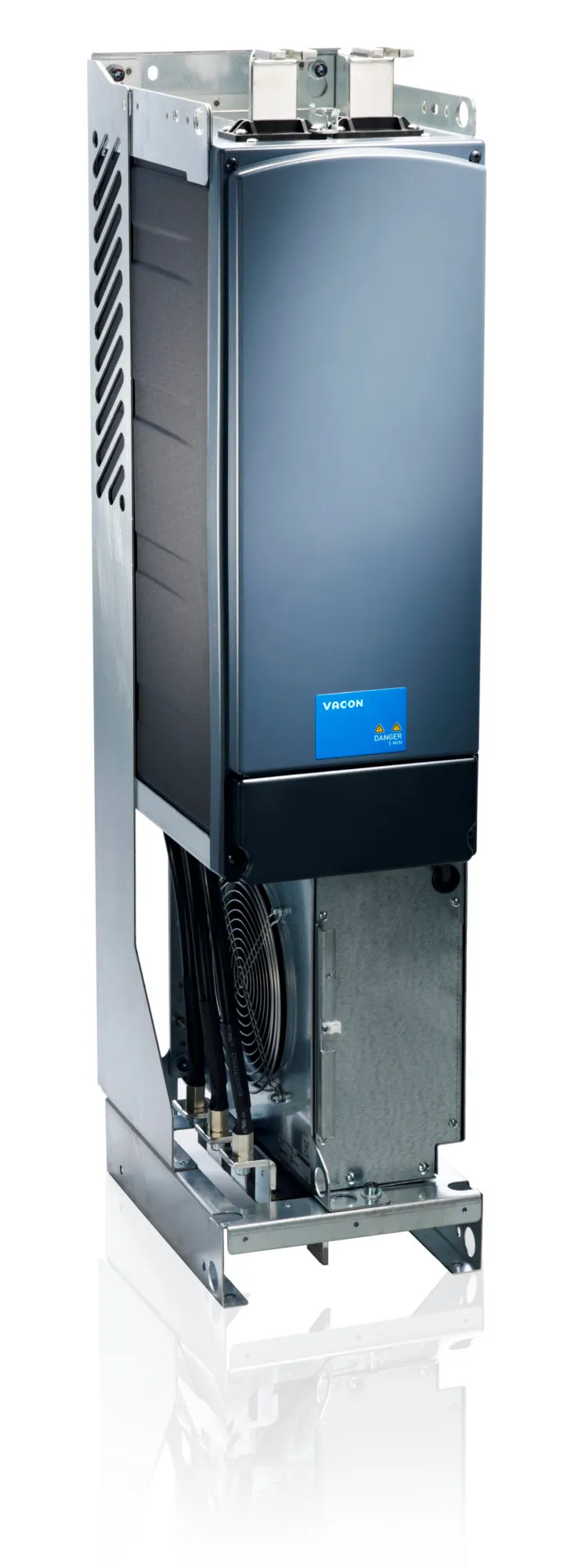

132X1067 Danfoss: NXP01685-A0N0SWV-A1A2BHB5E9+DCD3+ADFIF101Vacon NXP Frequency Converter380 – 500 Vac (465-800 Vdc), 168 Amp,IP00Alpha-numeric displayno EMC protectionNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: 3 temp meas channelsD Slot: 3RO(NO)E Slot: 2-port ethernetManual: EnglishFrame 05 liquid cooledOther options according to Model code
Gross weight
94 kg
Net weight
93 kg
Volume
0 l
EAN
5715253158068
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0168 : 168 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
N : no EMC protection
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
BH : 3 temp meas channels
Option Slot D
B5 : 3RO(NO)
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+DCD3 : DC/DC converter; Uout,max>75%
Application
+ADFIF101 : Appl sw ADFIF101 NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH05 : Frame 05 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-016850
Typecode Part 2
-000082106
Salestext
CH0501685-0N
Modelcode01
NXP01685-A0N0SWV-
Modelcode02
A1A2BHB5E9
Modelcode03
+DCD3
Modelcode04
+ADFIF101
Calculated Net Weight [kg]
93
Calculated Gross Weight [kg]
94
Motor Power Low Overload [kW]
90
Motor Power High Overload [kW]
75
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
153
Continuous Current (HO) [A]
112
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-016850
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1588
EMC-shield - feed busbar insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1312
Busbar kit
181B1432
Earthing plate kit
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
VACON=C2=AE NX All in One Application Guide VACON NXP and VACON NXC Selection Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NXP System Drive Hardware Manual Cybersecurity for Vacon NX Drives VACON=C2=AE NX Active Front End User Manual VACON=C2=AE NX Filters User Manual VACON NXP and VACON NXC Selection Guide - US English Danfoss MD 00779152 B2 UL E171278 Danfoss EU-UK 00736949 E1 ABS 24-00T2545447-PDA ABS 24-00T2545449-PDA BV 14584-DO BV CRS 03-001990-031694 DNV GL TAE000013B Rev. 4 KR HMB 28683-AC001 KR HMB28683-AC003 Vacon_Common_DCbus_FI10 OPTA1_VACON_NX OPTD7_VACON_NX OPTA2_VACON_NX MCAD VACON NXP FI10 IP00 VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware VACON=C2=AE OPT-CQ Ethernet/IP Firmware
