132X1132
Part Number: 132X1132
Product Information
Extended Description

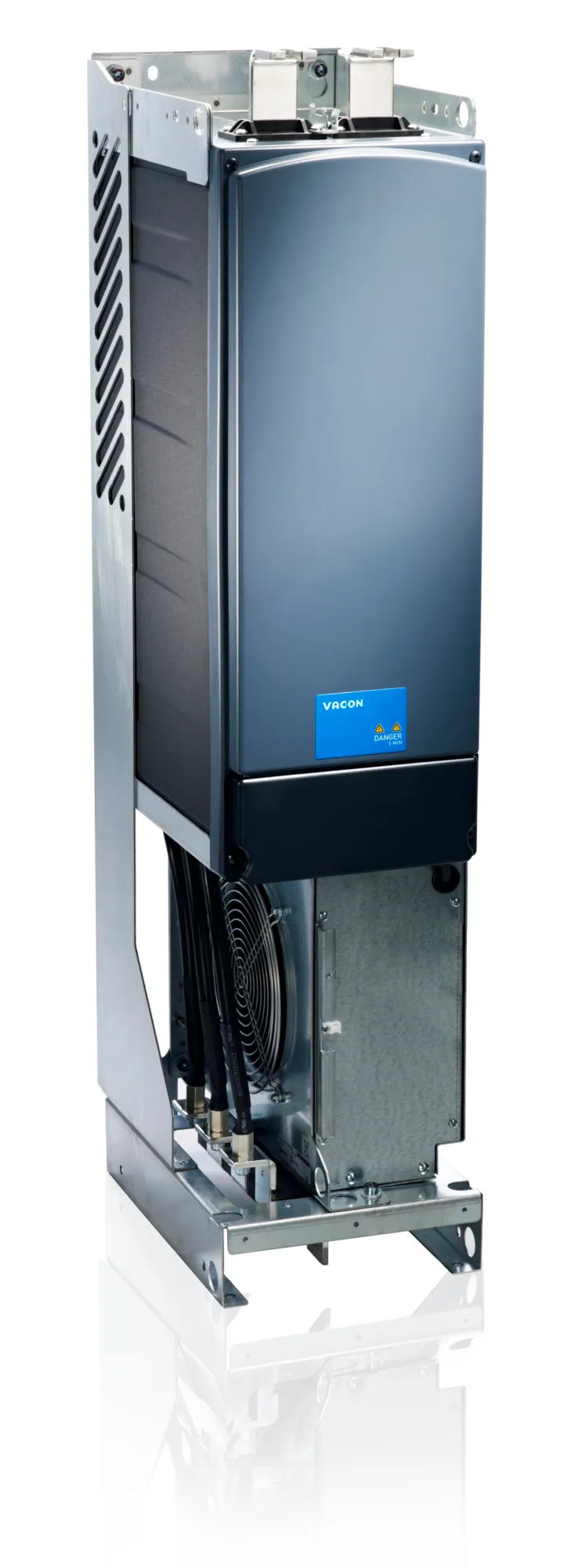

132X1132 Danfoss: NXP05205-A0T0YWG-A1A20000EA+DCD3+ADFIF101+GABVVacon NXP Frequency Converter380 – 500 Vac (465-800 Vdc), 520 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: Advanced 2-port ethernetManual: EnglishFrame 72 liquid cooledOther options according to Model code
Gross weight
195 kg
Net weight
194 kg
Volume
0 l
EAN
5715253158723
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0520 : 520 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
Y : 6-puls w liquid cool choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
EA : Advanced 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+DCD3 : DC/DC converter; Uout,max>75%
Application
+ADFIF101 : Appl sw ADFIF101 NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GABV : Bureau Veritas
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH72 : Frame 72 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-052050
Typecode Part 2
-000082179
Salestext
CH7205205-0T
Modelcode01
NXP05205-A0T0YWG-
Modelcode02
A1A20000EA
Modelcode03
+DCD3
Modelcode04
+ADFIF101
Modelcode05
+GABV
Calculated Net Weight [kg]
194
Calculated Gross Weight [kg]
195
Motor Power Low Overload [kW]
250
Motor Power High Overload [kW]
250
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
473
Continuous Current (HO) [A]
347
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-052050
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1588
EMC-shield - feed busbar insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1312
Busbar kit
181B1432
Earthing plate kit
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
VACON=C2=AE NX All in One Application Guide
VACON NXP and VACON NXC Selection Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NXP System Drive Hardware Manual
Cybersecurity for Vacon NX Drives
VACON=C2=AE NX Active Front End User Manual
VACON=C2=AE NX Filters User Manual
VACON NXP and VACON NXC Selection Guide - US English
Danfoss MD 00779152 B2
UL E171278
Danfoss EU-UK 00736949 E1
ABS 24-00T2545447-PDA
ABS 24-00T2545449-PDA
BV 14584-DO BV
CRS 03-001990-031694
DNV GL TAE000013B Rev. 4
KR HMB 28683-AC001
KR HMB28683-AC003
Vacon_Common_DCbus_FI10
OPTA1_VACON_NX
OPTD7_VACON_NX
OPTA2_VACON_NX
MCAD VACON NXP FI10 IP00
VACON=C2=AE NCDrive
VACON=C2=AE OPT-C7 DeviceNet Firmware
VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware
VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware
VACON=C2=AE OPT-CG S2 Protocol Firmware
VACON=C2=AE OPT-CJ BACnet MS/TP Firmware
VACON=C2=AE OPT-C4 LonWorks Firmware
VACON=C2=AE OPT-CI Modbus TCP/IP Firmware
VACON=C2=AE OPT-CP PROFINET IO Firmware
VACON=C2=AE OPT-CQ Ethernet/IP Firmware
