132X3629

Part Number: 132X3629
132X3629
Manufacturer
Danfoss
Part number
132X3629
Category

Product Information

Extended Description

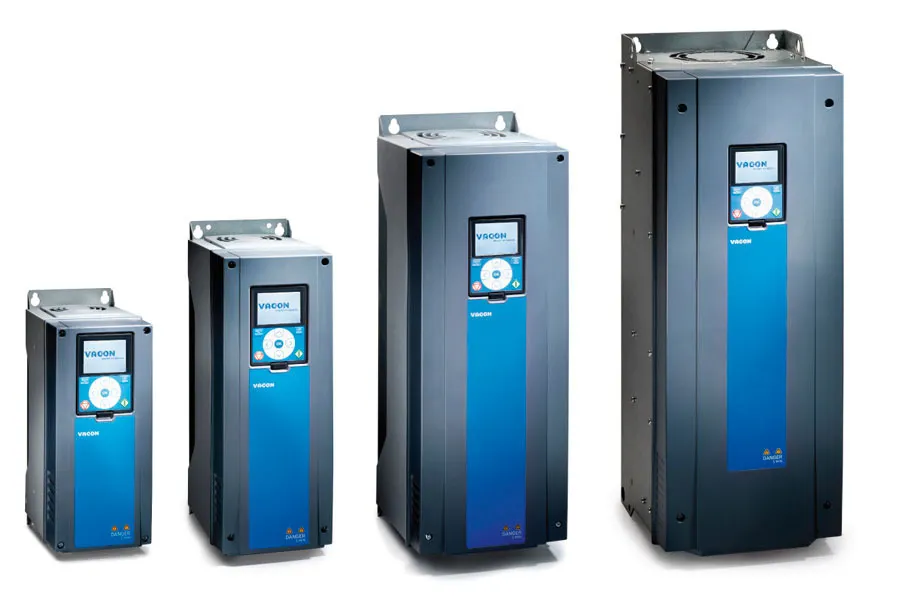

132X3629 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-07A2E20F1+ACBC+ALDC+BAPR+BDBA+BEF1+BF20+CBX0+DAAUIP20/Open Type, Frame: FA02b3~, 380-500 V AC,7.2 AEMC category: C1 and C2 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROPROFINET RT OS7PRFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
5.336 kg
Net weight
4.158 kg
Volume
21.21 l
EAN
5715253185453
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-07A2E20F1
Typecode Part 2
-000085587
Calculated Gross Weight [kg]
5.38
Calculated Net Weight [kg]
4.16
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-07A2 : 7.2 A
Power rating
3K0 : 3.0 kW/4.0 hp
Protection rating
E20 : IP20/Open Type
EMC category
F1 : C1 and C2 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACBC : Yes
Extra environmental protection
+AGXX : None
Humidity protection device
+AHXX : None
Mains input device
+AJXX : None
DC terminals
+ALDC : Yes
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAPR : PROFINET RT OS7PR
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBX0 : None
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA02B : FA02b
Modelcode01
IC7-60FA3N05-07A2E20F1
Modelcode02
+ACBC
Modelcode03
+ALDC+BAPR+BDBA
Modelcode04
+BEF1+BF20+CBX0
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 2.02%
Maximum Power Loss LO [W]
105
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
6.5/5.7A
Short circuit current rating
100kA
Ambient temp. normal overload
45°C/113°F
Input Voltage
3x380-500V
Typical motor power PL (110%)
3.0KW(400V)/4.0HP(460V)
Typical motor power PH (150%)
3.0KW(400V)/4.0HP(460V)
Continous current IL (1/10min)
7.2/6.3A
Continous current IH (1/10min)
7.2/6.3A
Continous current IH (1/5min)
5.6/4.8A
Main unit Width
90
Main unit Height
270
Main unit Depth
247
Product View (Switch)
GLBL : Global (Standard)
181B2113
IGBT kit 500V
181B2111
Single adapter board
181B2110
Rectifier board
181B2109
Thyristor protection board 380-500V MR10
181B2108
Power supply board 380-690V for MR10
181B2105
Accessories bag MR10 module
181B2231
Fuse 800A 690VAC size 3 aR
181B1961
Input fuse plain blade 700A aR 690VAC si
181B1959
Fuse 1000A 900VAC
181B1950
Aux power supply 24VDC 60W
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE 100 FLOW Application Guide VACON 100 Selection Guide VACON=C2=AE 100 dUdt Technical Guide VLT=C2=AE AHF 005-010 FOR VACON=C2=AE 100 HMI Door mounting kit instruction VACON=C2=AE 100 BACnet Installation Manual VACON=C2=AE 100 Door Keypad Instruction VACON=C2=AE 100 Encl. Drives Inst. Manual Danfoss MD 00779152 B2 UL E171278 Danfoss EU-UK DPD01855C Danfoss EU-UK 00737161 D1 Danfoss EU-UK 00737162 D1 T=C3=9CV 01 205 5216 03-20 BV 43073 B0 BV DNV GL TAE00000XZ Rev. 5 KR HMB28683-AC002 LR21105512TA VACON=C2=AE 100 INDUSTRIAL Firmware VACON=C2=AE 100 FLOW Firmware VACON=C2=AE OPT-E7 DeviceNet Firmware VACON=C2=AE OPT-EC EtherCAT Firmware VACON=C2=AE 100 SIMATIC PDM PROFINET IO EDD VACON=C2=AE OPTE3/E5 PROFIBUS GSD VACON=C2=AE OPTE6 CANopen EDS VACON=C2=AE OPTE7 DeviceNet EDS VACON=C2=AE OPTE9 EtherNet/IP EDS VACON=C2=AE OPTE9 PROFINET IO GSDML
