132X5245

Part Number: 132X5245
132X5245
Manufacturer
Danfoss
Part number
132X5245
Category

Product Information

Extended Description

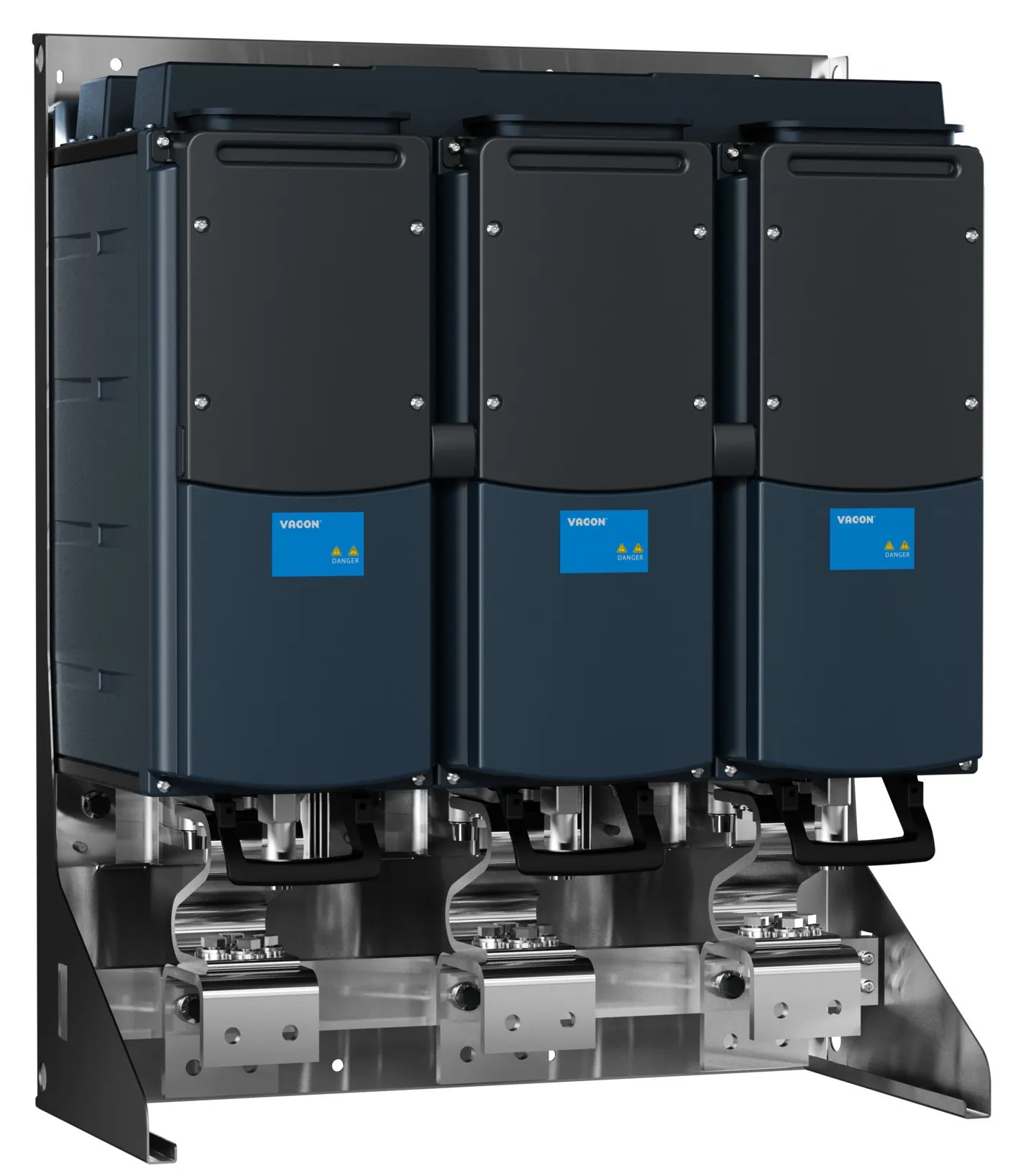

132X5245 Danfoss: NXA23005-A0T02WG-A8B5D7D2EC+MASG+ARFIFF03+GANKVacon Active Front-End Unit380 =E2=80=93 500 Vac (465-800 Vdc), 2300 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 3RO(NO)C Slot: Line voltage meas.D Slot: SysBus(1fiber), CAN-MonBusE Slot: EtherCATManual: EnglishFrame 64 liquid cooledOther options according to Model code
Gross weight
181 kg
Net weight
180 kg
Volume
0 l
EAN
5715253202266
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
2300 : 2300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
B5 : 3RO(NO)
Option Slot C
D7 : Line voltage meas.
Option Slot D
D2 : SysBus(1fiber), CAN-MonBus
Option Slot E
EC : EtherCAT
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GANK : Class NK
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH64 : Frame 64 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-230050
Typecode Part 2
-000087735
Salestext
CH6423005-0T
Modelcode01
NXA23005-A0T02WG-
Modelcode02
A8B5D7D2EC
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+GANK
Calculated Net Weight [kg]
180
Calculated Gross Weight [kg]
181
Motor Power Low Overload [kW]
1409
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
746X923X375
Continuous Current (NO) [A]
2091
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-230050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1328
Driver board NXW
181B1432
Earthing plate kit
181B1425
Door panel plate black
181B2005
DC link busbar kit minus CH64
