Part Number: 132X5786
Product Information
Extended Description

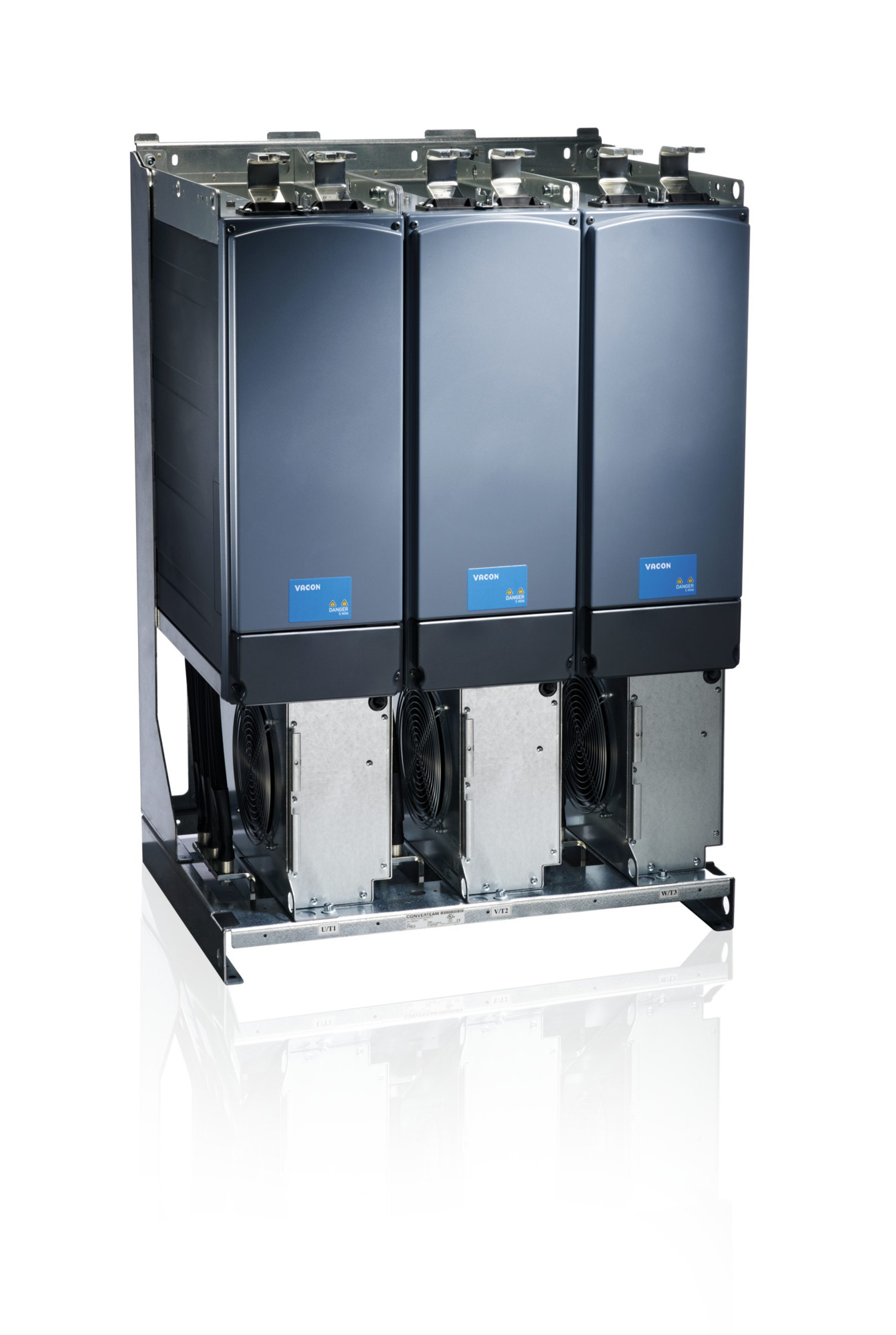

132X5786 Danfoss: NXA04605-A0T02SG-A1A2D7B5E9+MASG+ARFIFF03+GAKR+LPC2Vacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 460 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: 3RO(NO)E Slot: 2-port ethernetManual: EnglishFrame 10 INUOther options according to Model code
Gross weight
98 kg
Net weight
97 kg
Volume
0 l
EAN
5715253207919
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0460 : 460 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
B5 : 3RO(NO)
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GAKR : Korea Register of Shipping
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI10 : Frame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-046050
Typecode Part 2
-000088690
Salestext
FI1004605-0T
Modelcode01
NXA04605-A0T02SG-
Modelcode02
A1A2D7B5E9
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+GAKR
Modelcode06
+LPC2
Calculated Net Weight [kg]
97
Calculated Gross Weight [kg]
98
Motor Power Low Overload [kW]
309
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X552
Continuous Current (NO) [A]
460
Continuous Current (HO) [A]
385
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-046050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
