132X5830

Part Number: 132X5830
132X5830
Manufacturer
Danfoss
Part number
132X5830
Category

Product Information

Extended Description

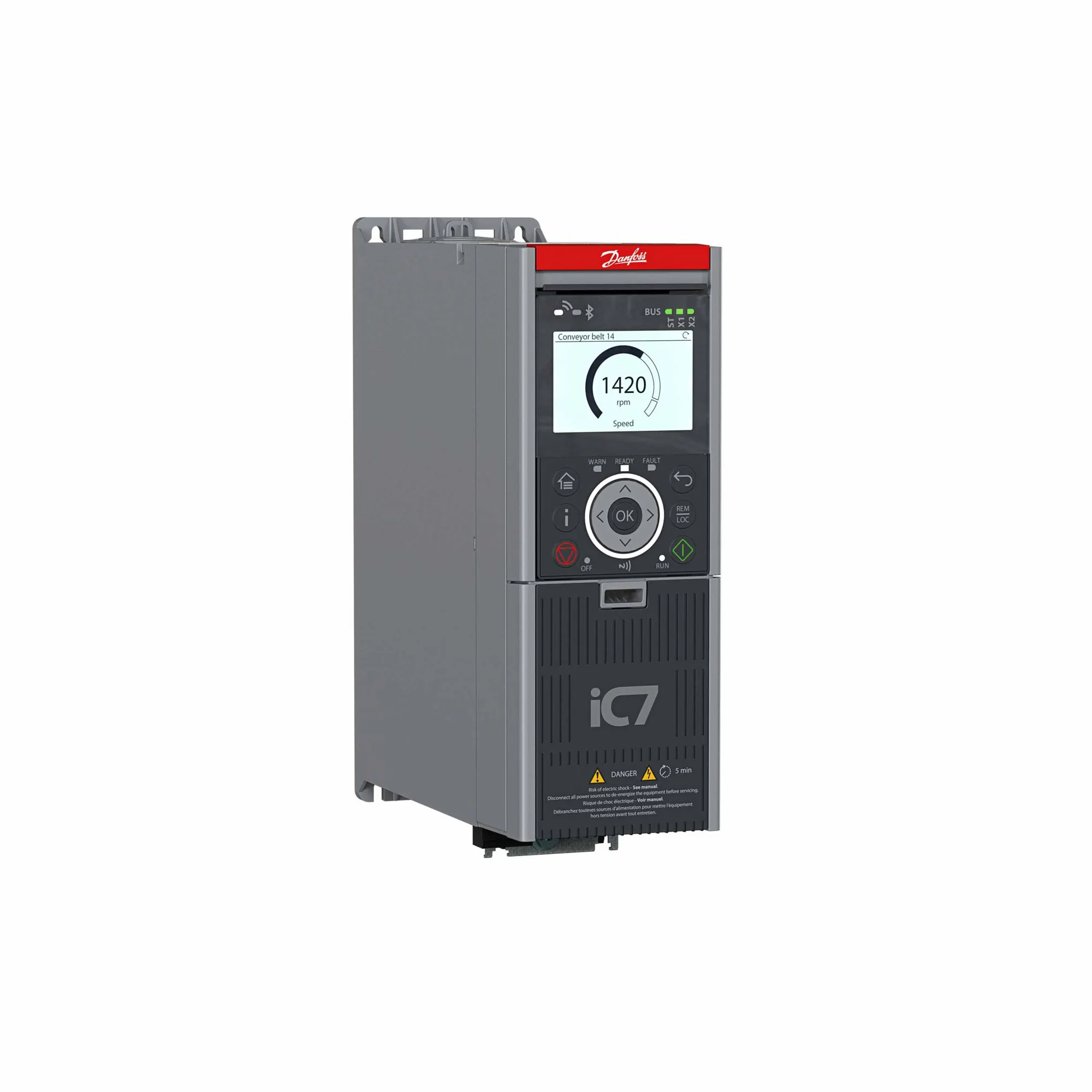

132X5830 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-799AE54F3+AGCX+AJFX+BAMT+BDBA+BEF1+BF20+DAAUIP54/UL Type 12, Frame: FB113~, 380-500 V AC,799 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROModbus TCP OS7MTFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
253.274 kg
Net weight
203.204 kg
Volume
0 l
EAN
5715253208350
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-799AE54F3
Typecode Part 2
-000085482
Calculated Gross Weight [kg]
253.31
Calculated Net Weight [kg]
203.2
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-799A : 799 A
Power rating
450 : 450 kW/600 hp
Protection rating
E54 : IP54/UL Type 12
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJFX : AC fuses
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FB11 : FB11
Modelcode01
IC7-60FA3N05-799AE54F3
Modelcode02
+AGCX+AJFX
Modelcode03
+BAMT+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.85%
Maximum Power Loss LO [W]
9339
Enclosure rating
IP54 / TYPE 12
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
769/703A
Short circuit current rating
100kA
Ambient temp. high overload
45°C/113°F
Ambient temp. normal overload
40°C/104°F
Input Voltage
3x380-500V
Typical motor power PL (110%)
450KW(400V)/600HP(460V)
Typical motor power PH (150%)
400KW(400V)/550HP(460V)
Continous current IL (1/10min)
799/730A
Continous current IH (1/10min)
695/653A
Continous current IH (1/5min)
658/590A
Main unit Width
602
Main unit Height
2043
Main unit Depth
513
Product View (Switch)
GLBL : Global (Standard)
136B2077
Main fan FA02
136B1924
I/O connectors (X11,X12,X101,X102)
136B1570
Option connector
136B2072
Power connectors FA02-FA03
136B1927
Control board conn. (X31,X32,X61)
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B1926
Fieldbus EMC plate FA02-FA08
136B2083
Control panel surface mounting kit
136B2084
Control panel cable 2.5m
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2083
Control panel surface mounting kit
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N6491
OF7P2-S-AN-46-10A0-060-05-T1-E20
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1303
DrivePro Start-Up unit pre-order small
