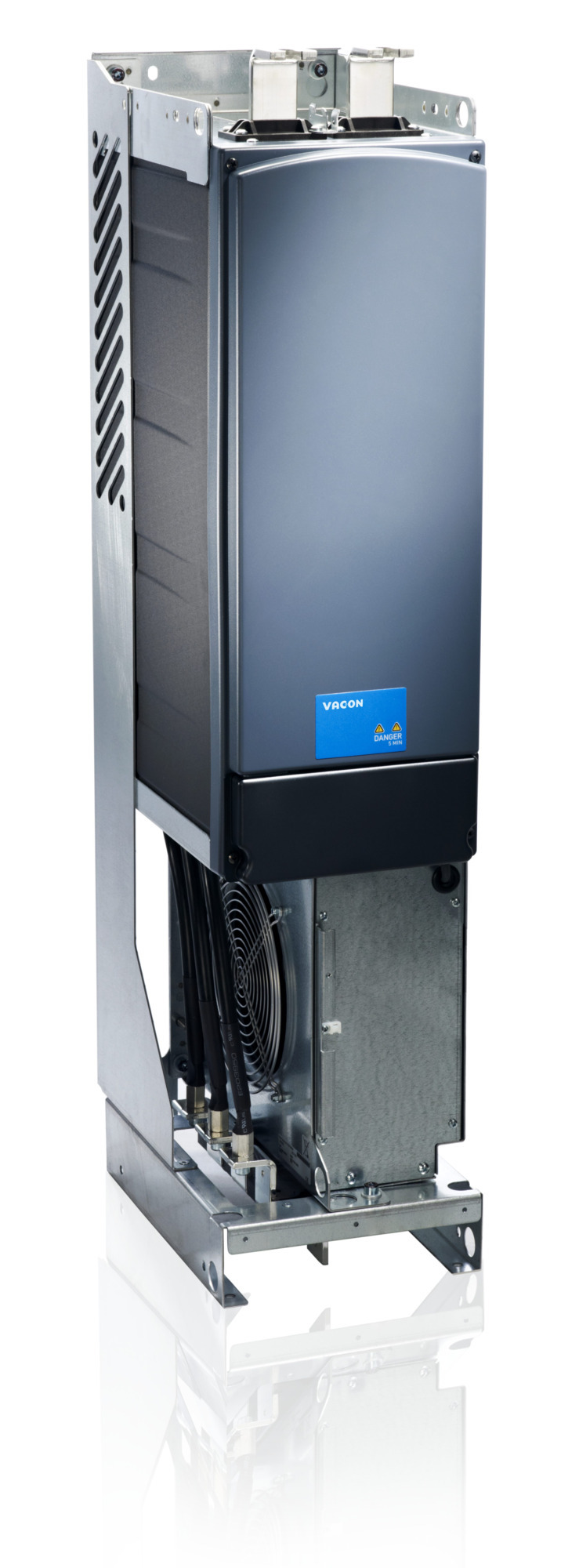

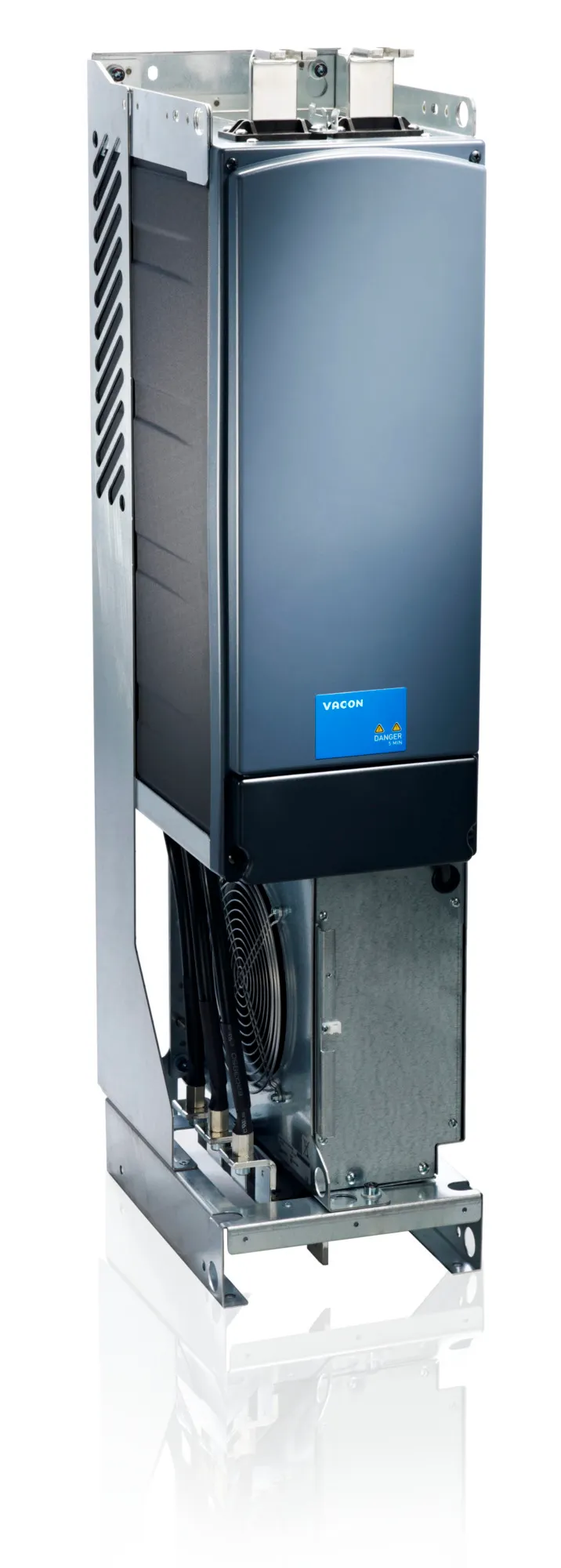

132X6444
Part Number: 132X6444
Product Information
Extended Description
132X6444 Danfoss: NXA03855-A0T02SG-A1A2D700E6+FL24+GRID+ARFIF106+DLCZVacon Active Front-End Unit380 =E2=80=93 500 Vac (465-800 Vdc), 385 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: No boardE Slot: CANopenManual: CzechFrame 10 INUOther options according to Model code
Gross weight
98 kg
Net weight
97 kg
Volume
0 l
EAN
5715253214610
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0385 : 385 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
00 : No board
Option Slot E
E6 : CANopen
Firmware language package
+FL24 : UK,EE,PL,CZ,DE;CentEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCZ : Czech
System Firmware
+FNP02 : System software NXP
Software license
+GRID : +UGRD & +GRDC
Application
+ARFIF106 : Grid Conv with codes NXA,NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI10 : Frame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-038550
Typecode Part 2
-000089567
Salestext
FI1003855-0T
Modelcode01
NXA03855-A0T02SG-
Modelcode02
A1A2D700E6
Modelcode03
+FL24+GRID
Modelcode04
+ARFIF106
Modelcode05
+DLCZ
Calculated Net Weight [kg]
97
Calculated Gross Weight [kg]
98
Motor Power Low Overload [kW]
259
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X552
Continuous Current (NO) [A]
385
Continuous Current (HO) [A]
300
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-038550
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1588
EMC-shield - feed busbar insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1312
Busbar kit
181B1432
Earthing plate kit
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
VACON=C2=AE NX All in One Application Guide
VACON NXP and VACON NXC Selection Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NXP System Drive Hardware Manual
Cybersecurity for Vacon NX Drives
VACON=C2=AE NX Active Front End User Manual
VACON=C2=AE NX Filters User Manual
VACON NXP and VACON NXC Selection Guide - US English
Danfoss MD 00779152 B2
UL E171278
Danfoss EU-UK 00736949 E1
ABS 24-00T2545447-PDA
ABS 24-00T2545449-PDA
BV 14584-DO BV
CRS 03-001990-031694
DNV GL TAE000013B Rev. 4
KR HMB 28683-AC001
KR HMB28683-AC003
Vacon_Common_DCbus_FI10
OPTA1_VACON_NX
OPTD7_VACON_NX
OPTA2_VACON_NX
MCAD VACON NXP FI10 IP00
VACON=C2=AE NCDrive
VACON=C2=AE OPT-C7 DeviceNet Firmware
VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware
VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware
VACON=C2=AE OPT-CG S2 Protocol Firmware
VACON=C2=AE OPT-CJ BACnet MS/TP Firmware
VACON=C2=AE OPT-C4 LonWorks Firmware
VACON=C2=AE OPT-CI Modbus TCP/IP Firmware
VACON=C2=AE OPT-CP PROFINET IO Firmware
VACON=C2=AE OPT-CQ Ethernet/IP Firmware
