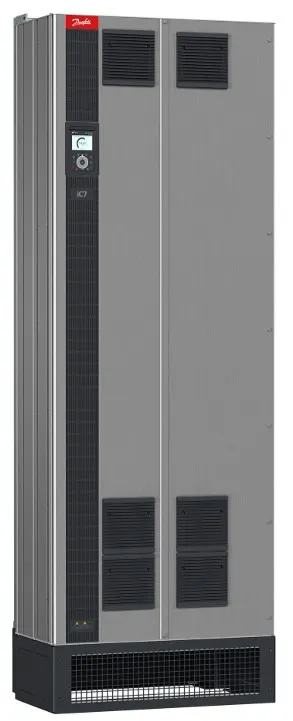

132X6934

Part Number: 132X6934
132X6934
Manufacturer
Danfoss
Part number
132X6934
Category

Product Information

Extended Description

132X6934 Danfoss: NXI03005-G0T0ISG-A1A20000E9+FL26+ADFIF101+DLCN+GACSVacon NXI Inverter Unit380 – 500 Vac (465-800 Vdc), 300 Amp,IP00Graphical panelIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: 2-port ethernetManual: ChineseFrame 09 INUOther options according to Model code
Gross weight
68 kg
Net weight
67 kg
Volume
0 l
EAN
5715253219646
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0300 : 300 Amp
Control Keypad
G : Graphical panel
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL26 : UK,RU,CN;Others
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCN : Chinese
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ADFIF101 : Appl sw ADFIF101 NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GACS : China Classification Society
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI09 : Frame 09 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-030050
Typecode Part 2
-000090196
Salestext
FI0903005-0T
Modelcode01
NXI03005-G0T0ISG-
Modelcode02
A1A20000E9
Modelcode03
+FL26
Modelcode04
+ADFIF101
Modelcode05
+DLCN+GACS
Calculated Net Weight [kg]
67
Calculated Gross Weight [kg]
68
Motor Power Low Overload [kW]
160
Motor Power High Overload [kW]
132
Dimensions WxHxD [mm]
239X1030X372
Continuous Current (NO) [A]
300
Continuous Current (HO) [A]
245
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-030050
check if complete
OK
Help Counter
1
Plant from Orderline
G103
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
