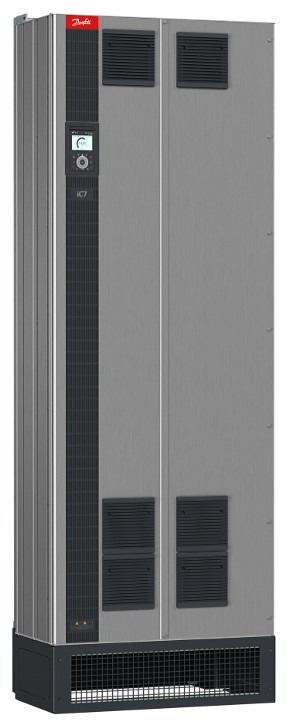

132X6935

Part Number: 132X6935
132X6935
Manufacturer
Danfoss
Part number
132X6935
Category

Product Information

Extended Description

132X6935 Danfoss: NXI10305-G0T0ISG-A1A20000E9+FL26+DCD3+ADFIF101+DLCN+GACSVacon NXI Inverter Unit380 – 500 Vac (465-800 Vdc), 1030 Amp,IP00Graphical panelIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: 2-port ethernetManual: Chinese2xFrame 10 INUOther options according to Model code
Gross weight
196 kg
Net weight
195 kg
Volume
0 l
EAN
5715253219653
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
1030 : 1030 Amp
Control Keypad
G : Graphical panel
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL26 : UK,RU,CN;Others
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCN : Chinese
System Firmware
+FNP02 : System software NXP
Software license
+DCD3 : DC/DC converter; Uout,max>75%
Application
+ADFIF101 : Appl sw ADFIF101 NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GACS : China Classification Society
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI12 : 2xFrame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-103050
Typecode Part 2
-000090204
Salestext
FI1210305-0T
Modelcode01
NXI10305-G0T0ISG-
Modelcode02
A1A20000E9
Modelcode03
+FL26+DCD3
Modelcode04
+ADFIF101
Modelcode05
+DLCN+GACS
Calculated Net Weight [kg]
195
Calculated Gross Weight [kg]
196
Motor Power Low Overload [kW]
560
Motor Power High Overload [kW]
500
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
1030
Continuous Current (HO) [A]
920
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-103050
check if complete
OK
Help Counter
1
Plant from Orderline
G103
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
176F3427
IGBT snubber cap 1250V 1.0uF wide mount
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6660
Busbar, current sensor, E2h, E4h, Fx12
176F6672
INSUL,PLAS,PC,GD,PCA,SUPPORT,P4001
176F6689
Busbar terminal, E1h=E2=80=93E4h, Fx11-12
176F6686
Terminal suppt mains, motor E1h=E2=80=93E4h
176F6683
Busbar/insulator set 500V E2h,E4h,Fx12
176F6677
Insul, plastic, active inrush, E1h=E2=80=93E4h
176F6676
Busbar AC input-inrush PCA E2h,E3h, Fx12
176F6674
Busbar, IGBT AC output E2h, E4h, Fx12
176F4037
400mm Pedestal kit, FK12/FB12
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N9614
OF7P2-S-AF-46-380A-060-05-T1-E20
130R1090
DrivePro ExWarr Onsite PG10 24 Months
130R1095
DrivePro ExWarr Onsite PG10 54 Months
130R1091
DrivePro ExWarr Onsite PG10 30 Months
130R1096
DrivePro ExWarr Onsite PG10 60 Months
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1092
DrivePro ExWarr Onsite PG10 36 Months
130R1093
DrivePro ExWarr Onsite PG10 42 Months
