132X7200

Part Number: 132X7200
132X7200
Manufacturer
Danfoss
Part number
132X7200
Category

Product Information

Extended Description

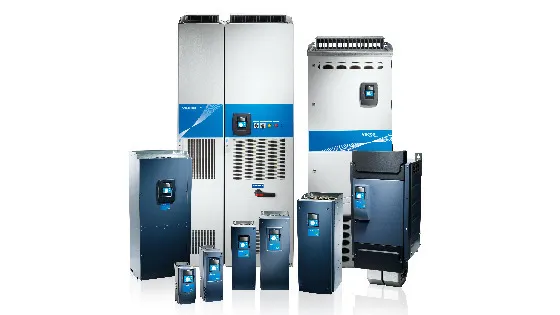

132X7200 Danfoss: NXP15006-A0T0UWG-A1A2B4B5CI+APFIFF09Vacon NXP Frequency Converter525 =E2=80=93 690 Vac (640-1100 Vdc), 1500 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: AI,2AO(mA,isol),+24V/EXTD Slot: 3RO(NO)E Slot: Modbus/TCPManual: EnglishFrame 74 liquid cooledOther options according to Model code
Gross weight
281 kg
Net weight
280 kg
Volume
0 l
EAN
5715253222301
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
6- : 525 =E2=80=93 690 Vac (640-1100 Vdc)
Current
1500 : 1500 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
U : 12-pulse No choke Spare unit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot D
B5 : 3RO(NO)
Option Slot E
CI : Modbus/TCP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+APFIFF09 : Marine application NXP,NXS
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH74 : Frame 74 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-150060
Typecode Part 2
-000090516
Salestext
CH7415006-0T
Modelcode01
NXP15006-A0T0UWG-
Modelcode02
A1A2B4B5CI
Modelcode04
+APFIFF09
Calculated Net Weight [kg]
280
Calculated Gross Weight [kg]
281
Motor Power Low Overload [kW]
1400
Motor Power High Overload [kW]
1200
Dimensions WxHxD [mm]
746X1175X375
Continuous Current (NO) [A]
1364
Continuous Current (HO) [A]
1000
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-150060
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1453
Measurement board right
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B1631
M8 Spring washer DIN 6796
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
136L2144
7DP-170060-000008864
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON=C2=AE NXP HXL040 Cool. unit Manual VACON=C2=AE NXP HXL120 Cool. Unit Manual VACON=C2=AE NXP HXL300 Cool. Unit Manual Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00737164 E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 MCAD VACON HXM 120 IP00 S MCAD VACON HXL 120 S PI diagram MCAD VACON HXM 300 S PI diagram MCAD VACON NXP Ch74 IP00 12p OPTA1_VACON_NX MCAD VACON HXM 120 S PI diagram MCAD VACON HXM 300 IP00 P MCAD VACON HXL 040 IP00 P MCAD VACON HXM 300 IP00 S OPTA2_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
