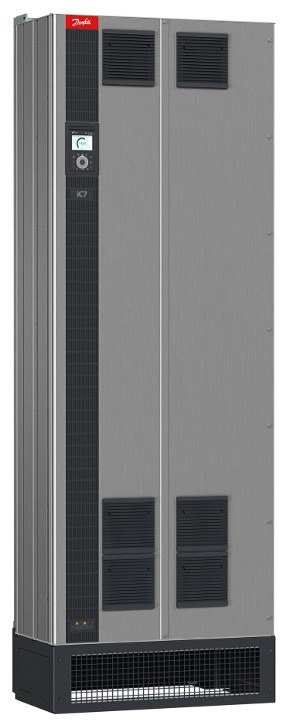

132X8754

Part Number: 132X8754
132X8754
Manufacturer
Danfoss
Part number
132X8754
Category

Product Information

Extended Description

132X8754 Danfoss: iC7-MarineSystem module, liquid-cooledIC7-60SLINB5-385AE00F4+AKFX+ANN1+AONH+BAMT+BDC1+BEXX+BKA0+CAM0+CBT0+DAMA+EGIN+EHENIP00/Open Type, Frame: IM10LInverter module, INU, 380-500 V AC / 465-800 V DC, 385 AEMC category: C4 categoryNoneStandard I/O: I/O and Relay Option OC7C1Modbus TCP OS7MTFunctional Safety: None, not upgradableOther options according to model code
Gross weight
65 kg
Net weight
44 kg
Volume
0 l
EAN
5715253238197
Help Counter
1
Typecode Part 1
7SM-MASLINB5-385AE00F4
Typecode Part 2
-000092490
Calculated Gross Weight [kg]
64
Calculated Net Weight [kg]
41
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
EAR99
ECCN US
3A999.a
Product series
+DAMA : iC7-Marine
Product group
IC7-60 : iC7-60
Product category
SL : System module, liquid-cooled
Product type
IN : Inverter module, INU
Mains voltage
B5 : 380-500 V AC / 465-800 V DC
Current rating
-385A : 385 A
Power rating
250 : 250 kW/350 HP
Protection rating
E00 : IP00/Open Type
EMC category
F4 : C4 category
Integration unit
+AEXX : None
Mains input device
+AJXX : None
DC fuses and devices
+AKFX : DC bus fuses
Cooling circuit connector type
+ANN1 : Push-in connection
Cooling circuit hose length
+AONH : None
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEL : Ethernet port, no protocol
Standard I/O
+BDC1 : I/O and Relay Option OC7C1
Functional safety
+BEXX : None, not upgradable
Control panel
+BFXX : None
Control panel mounting type
+BGXX : None
Control panel cable length
+BHXX : None
Control unit cable length
+BKA0 : 10.0 m (32 ft), Fiber
StarCoupler board cable length
+BLXX : None
Option slot A
+CAM0 : Encoder/Resolver Option OC7M0
Option slot B
+CBT0 : Temperature Measurement OC7T0
Option slot C
+CCXX : None, without mounting plate
Option slot D
+CDXX : None, without mounting plate
Option slot E
+CEXX : None, without mounting plate
Option slot F
+CFXX : None, without mounting plate
Option slot G
+CGXX : None, without mounting plate
Option slot H
+CHXX : None, without mounting plate
Option slot I
+CIXX : None, without mounting plate
Option slot J
+CJXX : None, without mounting plate
Language package
+EL01 : Global
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Documentation language
+EHEN : English
Customer-specific label
+EJXX : None
Shipping package
+TACB : Cardboard box package
Product specific marine cert.
+VBXX : None
Frame designation
IM10L : IM10L
Modelcode01
IC7-60SLINB5-385AE00F4
Modelcode02
+AKFX+ANN1
Modelcode03
+AONH+BAMT+BDC1+BEXX
Modelcode04
+BKA0+CAM0+CBT0
Modelcode06
+DAMA
Modelcode08
+EGIN+EHEN
Product Catalog
NO_VIEW : NO VIEW
check if complete
OK
Cooling type
Liquid Cooled
Enclosure rating
IP00 / OPEN TYPE
Output frequency
0-599Hz
Short circuit current rating
100kA
Liquid temp. High Overload
45°C/113°F
Liquid temp. Low Overload
45°C/113°F
Liquid temp. Nominal load
45°C/113°F
AC voltage
3X0-400/460/500VAC
DC Bus voltage
465-800VDC
Storage temperature
-40...70°C/-40...158°F
Nominal AC current
394A(500VAC)
DC Bus current
408A(675VDC)
Continous current IL (1/5min)
385A(500VAC)
Continous current IH (1/5min)
289A(500VAC)
Overload current IL (1/5min)
424A(500V)
Overload current IH (1/5min)
289A(500VAC)
Start current Imax (3sec)
578A
DC power
275KW(675VDC)
Typical motor power PL (110%)
250KW(500VAC)
Typical motor power PH (150%)
160KW(500VAC)
Main unit Width
140MM/5.5IN
Main unit Depth
558MM/22IN
Main unit Height
710MM/28IN
Product Type - DrivesSymbol
Inverter module
Product Category -DrivesSymbol
System module, liquid-cooled
Product View (Switch)
GLBL : Global (Standard)
Salescode part 1
IC7-60SLINB5-385AE00F4
Salescode part 2
+AKFX+ANN1
Salescode part 3
+AONH+BAMT+BDC1+BEXX
Salescode part 4
+BKA0+CAM0+CBT0
Salescode part 5
+DAMA
Salescode part 6
+EGIN+EHEN
