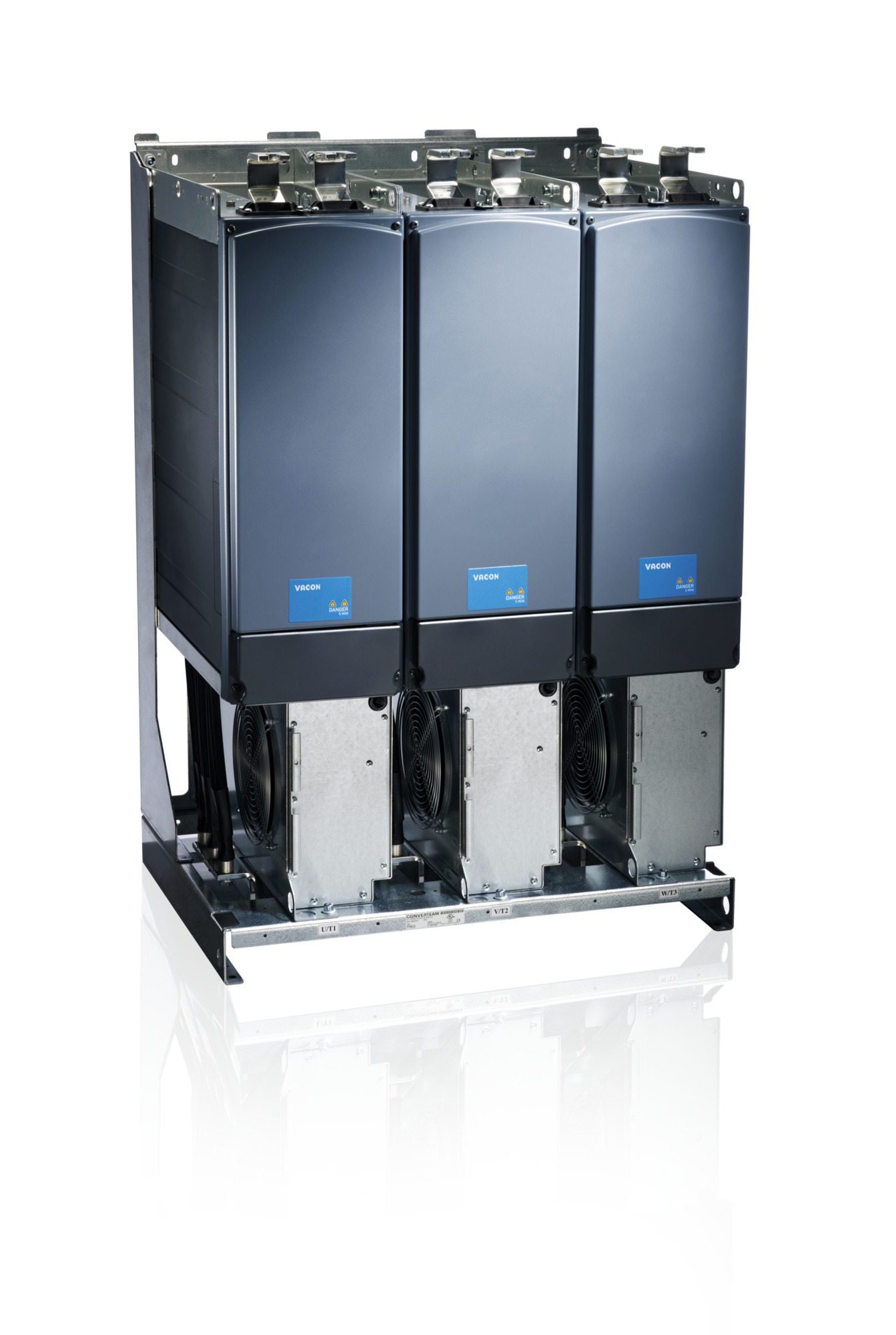

132X8946

Part Number: 132X8946
132X8946
Manufacturer
Danfoss
Part number
132X8946
Category

Product Information

Extended Description

132X8946 Danfoss: NXI01405-A2T0CSV-A1AFD700E9+MASG+ARFIFF03+DLFRVacon NXI Inverter Unit380 – 500 Vac (465-800 Vdc), 140 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: STO, ATEX thermC Slot: Line voltage meas.D Slot: No boardE Slot: 2-port ethernetManual: FrenchFrame 08ATEX: II (2) GDOther options according to Model code
Gross weight
49 kg
Net weight
48 kg
Volume
0 l
EAN
5715253240411
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
0140 : 140 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
C : INU w. integr. charg. circuit
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
D7 : Line voltage meas.
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLFR : French
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-014052
Typecode Part 2
-000092675
Salestext
FR0801405-2T
Modelcode01
NXI01405-A2T0CSV-
Modelcode02
A1AFD700E9
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+DLFR
Calculated Net Weight [kg]
48
Calculated Gross Weight [kg]
49
Motor Power Low Overload [kW]
75
Motor Power High Overload [kW]
55
Dimensions WxHxD [mm]
288X758X344
Continuous Current (NO) [A]
140
Continuous Current (HO) [A]
105
ATEX Marking 1
ATEX: II (2) GD
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-014052
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
130R1326
DrivePro Start-UP ctrl. IFT test high
130R1323
DrivePro Start-Up special applic. high
130R1317
DrivePro Start-Up 1 day on-demand high
130R1316
DrivePro Start-Up 1 day pre-order high
130R1308
DrivePro Start-Up Unit on-demand high
