Part Number: 132X9340
Product Information
Extended Description

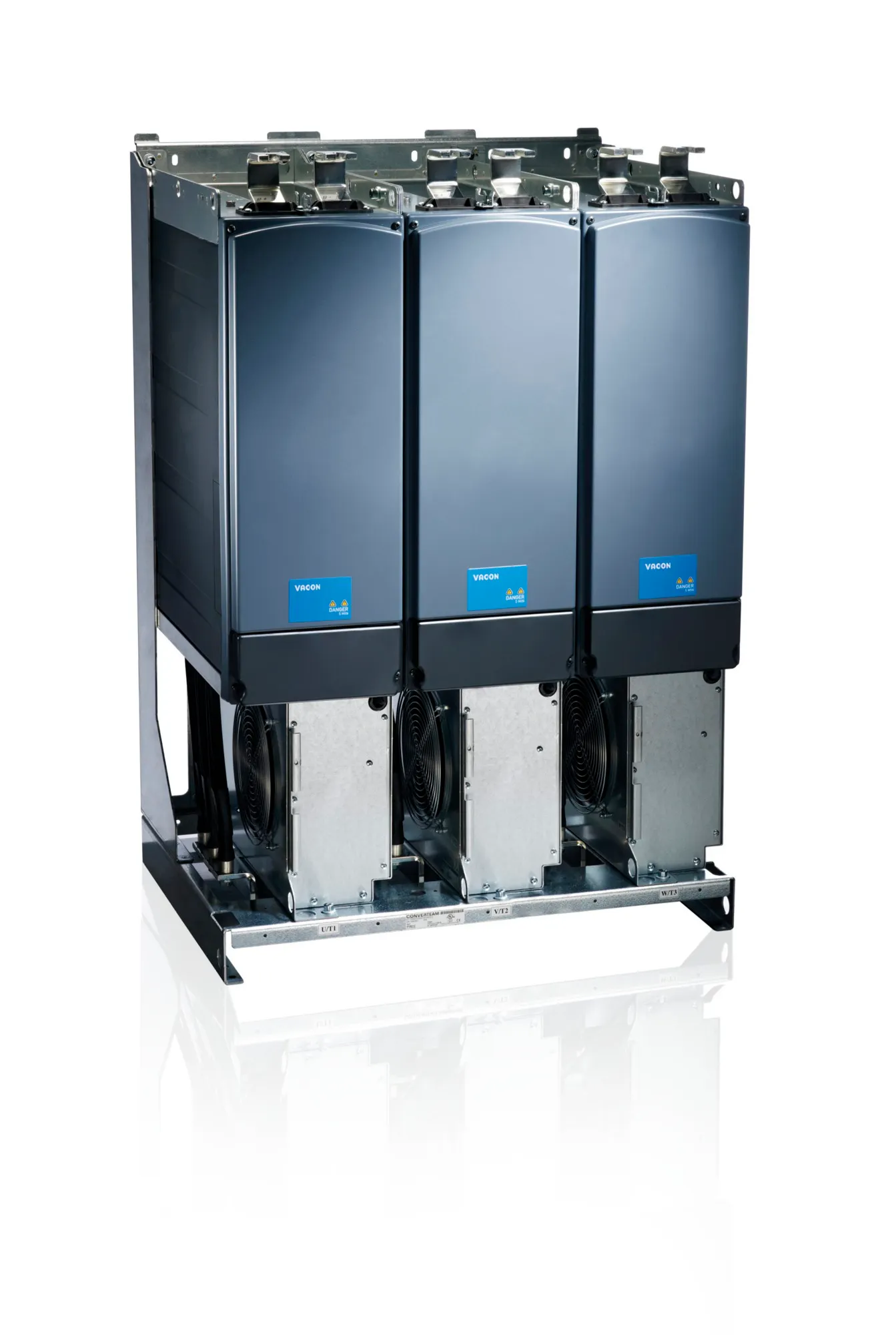

132X9340 Danfoss: NXA01706-A0T02SG-A1A2D7B1E9+MASG+ARFIFF03+DLESVacon Active Front-End Unit525 – 690 Vac (640-1100 Vdc), 170 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: 6 programmableDI/DOE Slot: 2-port ethernetManual: SpanishFrame 09 INUOther options according to Model code
Gross weight
68 kg
Net weight
67 kg
Volume
0 l
EAN
5715253245997
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0170 : 170 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
B1 : 6 programmableDI/DO
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLES : Spanish
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI09 : Frame 09 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-017060
Typecode Part 2
-000093093
Salestext
FI0901706-0T
Modelcode01
NXA01706-A0T02SG-
Modelcode02
A1A2D7B1E9
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+DLES
Calculated Net Weight [kg]
67
Calculated Gross Weight [kg]
68
Motor Power Low Overload [kW]
197
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X372
Continuous Current (NO) [A]
170
Continuous Current (HO) [A]
144
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-017060
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
