132X9357

Part Number: 132X9357
132X9357
Manufacturer
Danfoss
Part number
132X9357
Category

Product Information

Extended Description

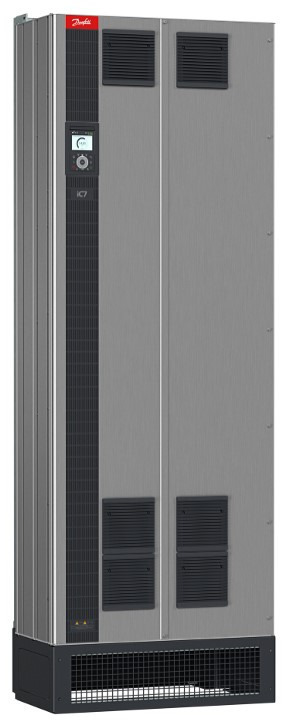

132X9357 Danfoss: iC7 Cooling ModuleIC7-60SLLQ69-0076E23F2+BAMT+BBEX+DACM+EGOP+EHEN+SAP1+SCLE+SEDL+SM60IP23/UL Type 1,Frame: CM21L690 V AC, Input frequency 60HzEMC Category: C2 categoryCooling capacity: 76 kWStandard couplingOther options according to model code
Gross weight
590 kg
Net weight
250 kg
Volume
0 l
EAN
5715253246161
Help Counter
1
Typecode Part 1
7CM-XXSLLQ69-0076E23F2
Typecode Part 2
-000093121
Calculated Gross Weight [kg]
340
Calculated Net Weight [kg]
250
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product View (Switch)
GLBL : Global (Standard)
Product series
+DACM : iC7 Cooling Module
Product group
IC7-60 : iC7-60
Product category
SL : System module, liquid-cooled
Product type
LQ : Cooling module (liq. to liq.)
Mains voltage
69 : 690 V AC
Cooling capacity
-0076 : 76 kW
Protection rating
E23 : IP23/UL Type 1
EMC category
F2 : C2 category
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEX : No port, no protocol
Control panel
+BF20 : Control Panel 2.8 OPX20
Option slot C
+CCXX : None, not upgradable
Option slot D
+CDXX : None, not upgradable
Customer specific application
+DBXX : None
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGOP : Operating guide
Documentation language
+EHEN : English
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Cooling module configuration
+SAP1 : Single-pump
Heat exchanger
+SCLE : Liquid-to-liquid
Cooling connection location
+SEDL : Drive connect. left base
Customer pipe coupling type
+SGPC : Standard coupling
Drive pipe coupling type
+SIPC : Standard coupling
Liquid Heater
+SKXX : No
Cabinet Heater
+SLXX : No
Frequency Range
+SM60 : Input frequency 60Hz
UL compliance
+VAXX : No additional approvals
Product specific marine cert.
+VBXX : None
Frame designation
CM21L : CM21L
Modelcode01
IC7-60SLLQ69-0076E23
Modelcode02
F2+BAMT+BBEX
Modelcode03
+DACM
Modelcode04
+EGOP+EHEN+SAP1+SCLE
Modelcode05
+SEDL+SM60
Product Catalog
NO_VIEW : NO VIEW
Salescode part 1
IC7-60SLLQ69-0076E23
Salescode part 2
F2+BAMT+BBEX
Salescode part 3
+DACM
Salescode part 4
+EGOP+EHEN+SAP1+SCLE
Salescode part 5
+SEDL+SM60
Main unit Depth
550MM
Enclosure rating
IP23
Ext. circuit, min. flow
190L/MIN
Drive circuit, nom. flow
190L/MIN
Input frequency
60 Hz
Main unit Height
1900MM
Ext. circuit, max. pressure
1000KPA
Drive circuit, max. pressure
600KPA
Short circuit current rating
SCCR: 50kA
Storage temperature
-40...+70C
Ext. circuit, temperature
< +38C (-30...+55C)
Drive circuit, temperature
+45C (-30...+55C)
Input Voltage
3x690VAC
Main unit Width
300MM
