132X9370
Part Number: 132X9370
Product Information
Extended Description

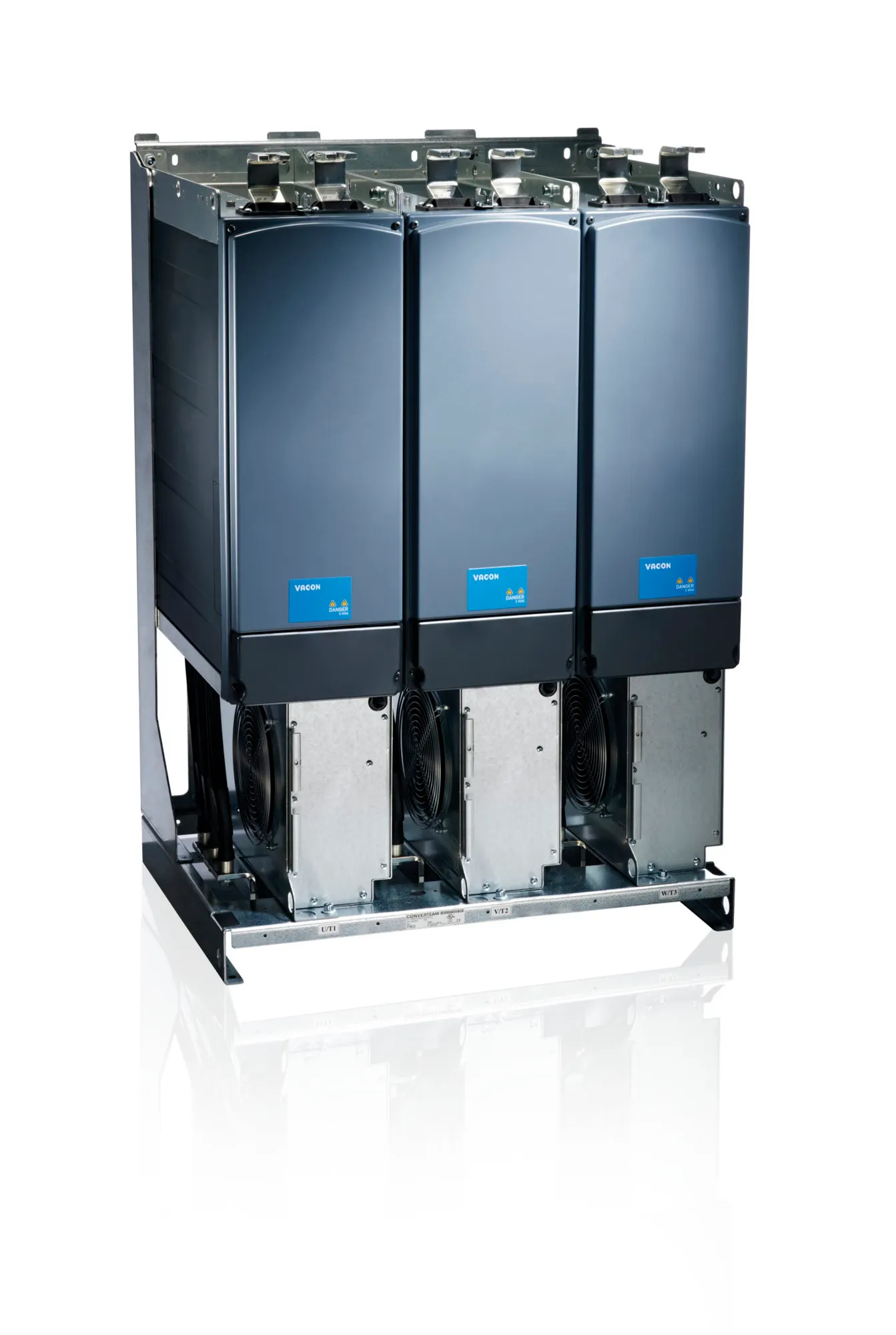

132X9370 Danfoss: NXI22506-A0T0ISG-A1A2D7D6E5+MASG+ARFIFF03Vacon NXI Inverter Unit525 – 690 Vac (640-1100 Vdc), 2250 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: CAN-MonBus galv.decoupledE Slot: PROFIBUS DP with Sub-D9Manual: English2xFrame 13 INUOther options according to Model code
Gross weight
585 kg
Net weight
584 kg
Volume
0 l
EAN
5715253246291
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
2250 : 2250 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
D6 : CAN-MonBus galv.decoupled
Option Slot E
E5 : PROFIBUS DP with Sub-D9
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI14 : 2xFrame 13 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-225060
Typecode Part 2
-000093137
Salestext
FI1422506-0T
Modelcode01
NXI22506-A0T0ISG-
Modelcode02
A1A2D7D6E5
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Calculated Net Weight [kg]
584
Calculated Gross Weight [kg]
585
Motor Power Low Overload [kW]
2000
Motor Power High Overload [kW]
1800
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
2250
Continuous Current (HO) [A]
1900
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-225060
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
