132X9392

Part Number: 132X9392
132X9392
Manufacturer
Danfoss
Part number
132X9392
Category

Product Information

Extended Description

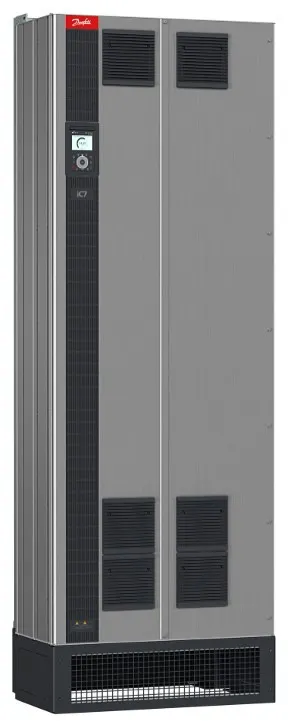

132X9392 Danfoss: NXI05906-G0T0ISG-A8A20000E9+DCD3+ADFIF101Vacon NXI Inverter Unit525 – 690 Vac (640-1100 Vdc), 590 Amp,IP00Graphical panelIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: 2-port ethernetManual: English2xFrame 10 INUOther options according to Model code
Gross weight
196 kg
Net weight
195 kg
Volume
0 l
EAN
5715253246536
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXI : NXI Inverter Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0590 : 590 Amp
Control Keypad
G : Graphical panel
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
I : INU, no charging circuit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+DCD3 : DC/DC converter; Uout,max>75%
Application
+ADFIF101 : Appl sw ADFIF101 NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI12 : 2xFrame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DI-059060
Typecode Part 2
-000093149
Salestext
FI1205906-0T
Modelcode01
NXI05906-G0T0ISG-
Modelcode02
A8A20000E9
Modelcode03
+DCD3
Modelcode04
+ADFIF101
Calculated Net Weight [kg]
195
Calculated Gross Weight [kg]
196
Motor Power Low Overload [kW]
560
Motor Power High Overload [kW]
500
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
590
Continuous Current (HO) [A]
502
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DI-059060
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
