Part Number: 132X9496
Product Information
Extended Description

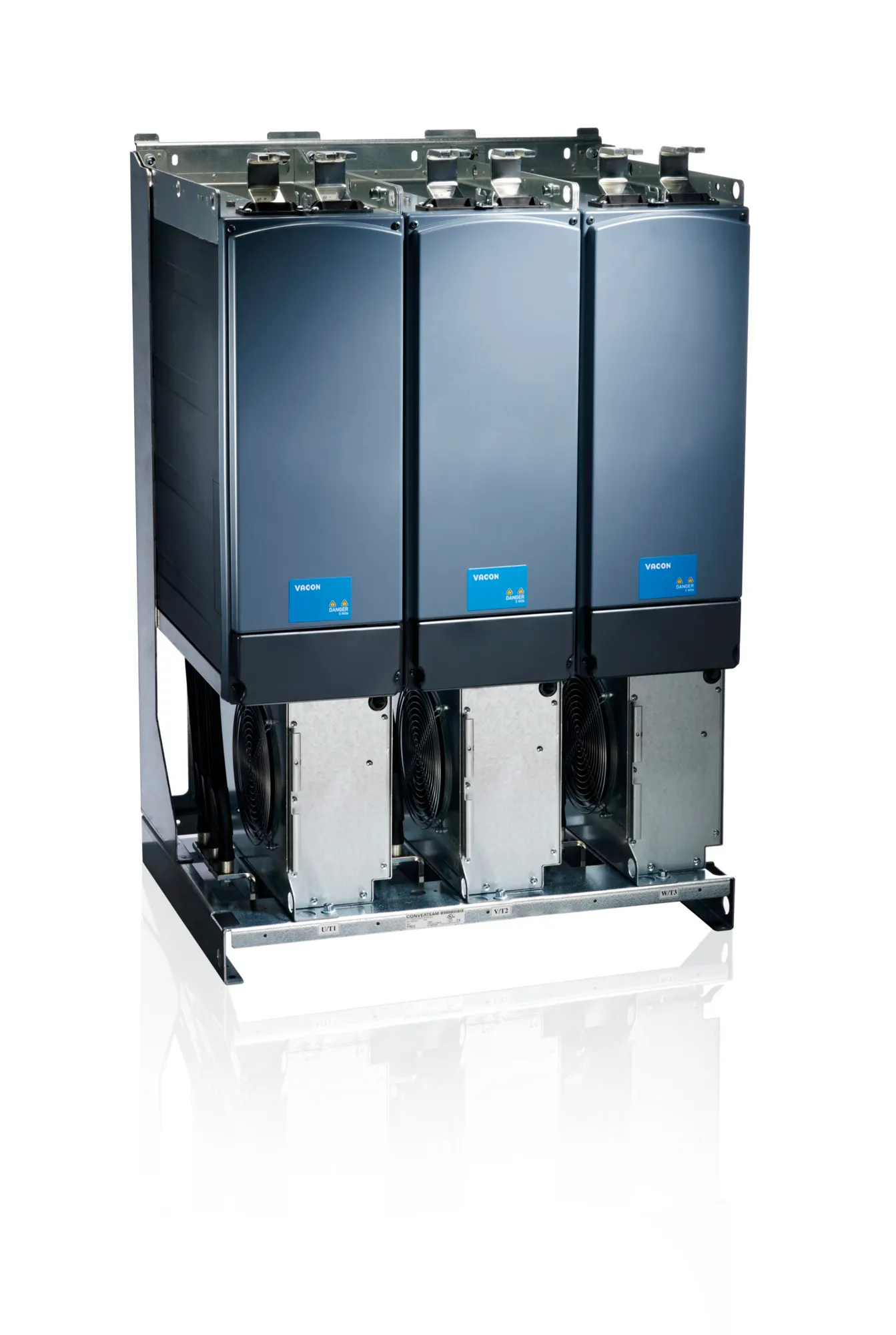

132X9496 Danfoss: NXA03256-A0T02SG-A1A2D70000+MASG+ARFIFF03Vacon Active Front-End Unit525 – 690 Vac (640-1100 Vdc), 325 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: No boardE Slot: No boardManual: EnglishFrame 10 INUOther options according to Model code
Gross weight
98 kg
Net weight
97 kg
Volume
0 l
EAN
5715253247601
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
0325 : 325 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI10 : Frame 10 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-032560
Typecode Part 2
-000093255
Salestext
FI1003256-0T
Modelcode01
NXA03256-A0T02SG-
Modelcode02
A1A2D70000
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Calculated Net Weight [kg]
97
Calculated Gross Weight [kg]
98
Motor Power Low Overload [kW]
377
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X552
Continuous Current (NO) [A]
325
Continuous Current (HO) [A]
261
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-032560
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
130R1326
DrivePro Start-UP ctrl. IFT test high
130R1323
DrivePro Start-Up special applic. high
130R1317
DrivePro Start-Up 1 day on-demand high
130R1316
DrivePro Start-Up 1 day pre-order high
130R1308
DrivePro Start-Up Unit on-demand high
VACON=C2=AE NX All in One Application Guide
VACON=C2=AE NXP Power Gener ARFIFF08V040 AppM
VACON NXP and VACON NXC Selection Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NXP System Drive Hardware Manual
Cybersecurity for Vacon NX Drives
VACON=C2=AE NX Active Front End User Manual
VACON=C2=AE NX Filters User Manual
Danfoss MD 00779152 B2
UL E171278
Danfoss EU-UK 00736949 E1
ABS 24-00T2545447-PDA
ABS 24-00T2545449-PDA
BV 14584-DO BV
CRS 03-001990-031694
DNV GL TAE000013B Rev. 4
KR HMB 28683-AC001
KR HMB28683-AC003
Vacon_Common_DCbus_FI13
OPTAN_VACON_NX
OPTD7_VACON_NX
OPTA2_VACON_NX
VACON=C2=AE NCDrive
VACON=C2=AE OPT-C7 DeviceNet Firmware
VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware
VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware
VACON=C2=AE OPT-CG S2 Protocol Firmware
VACON=C2=AE OPT-CJ BACnet MS/TP Firmware
VACON=C2=AE OPT-C4 LonWorks Firmware
VACON=C2=AE OPT-CI Modbus TCP/IP Firmware
VACON=C2=AE OPT-CP PROFINET IO Firmware
VACON=C2=AE OPT-CQ Ethernet/IP Firmware
