134F9366
Part Number: 134F9366
Product Information
Extended Description

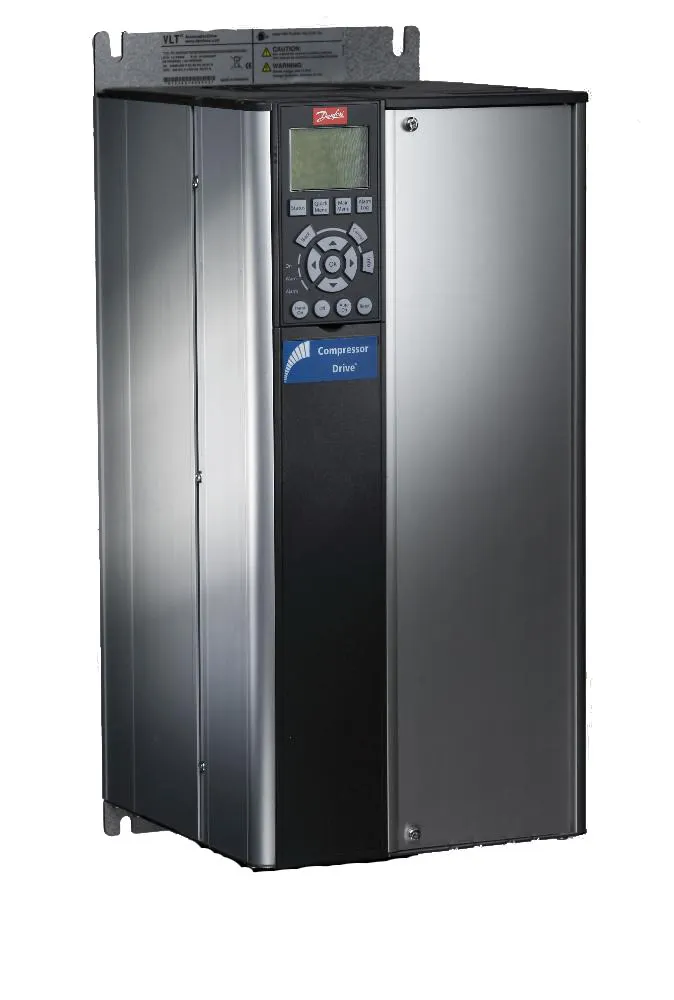

134F9366 Danfoss: CDS303 15.0kW; without coating; IP20; without LCP; H2; B3
Gross weight
11.58 Kilogram
Net weight
10.61 Kilogram
Volume
57.75 Liter
EAN
5710107496532
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 15.0kW; without coating; IP20; without LCP; H2; B3
Family
Frequency converter
Frame
B3
IP class
IP20
LCP
No
Length [mm]
248 mm
Model number
CDS303P15KT4P20H2
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H2
SCIP dossier no.
9667b652-b76b-491b-ab3f-e921a6ef0184
SCIP dossier product name
CDS303 Frame Identification B3
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
419 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
165 mm
