134G3474
Part Number: 134G3474
Product Information
Extended Description

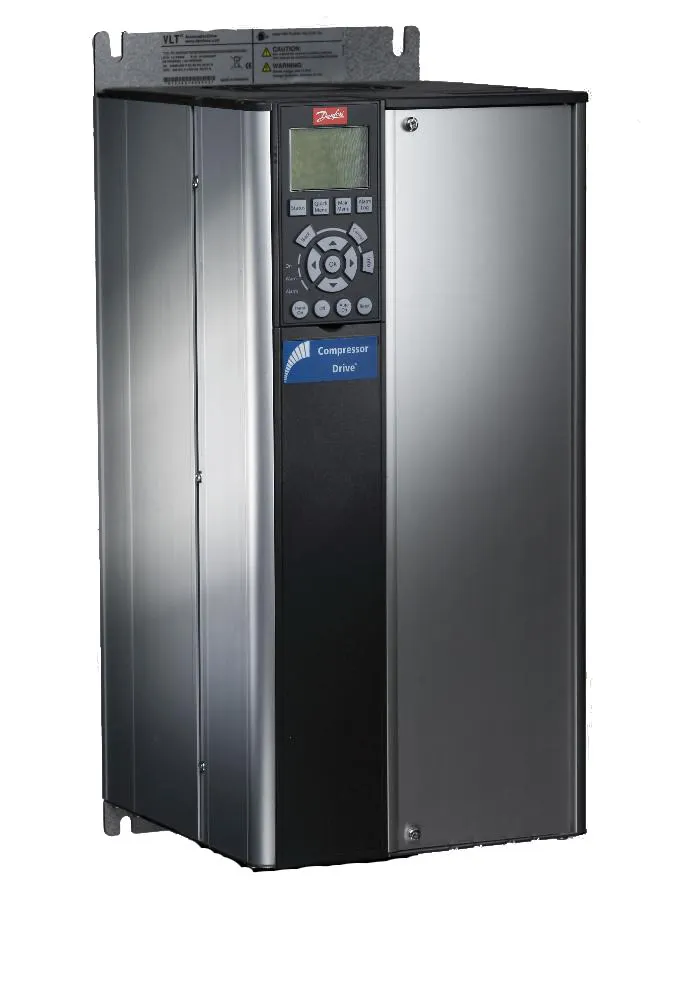

134G3474 Danfoss: CDS303 15.0kW; without coating; IP20; without LCP; H3; B4
Gross weight
23.3 Kilogram
Net weight
23 Kilogram
Volume
144.67 Liter
EAN
5710107537853
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 15.0kW; without coating; IP20; without LCP; H3; B4
Family
Frequency converter
Frame
B4
IP class
IP20
LCP
No
Length [mm]
242 mm
Model number
CDS303P15KT2P20H3
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H3
SCIP dossier no.
64306c92-2242-4659-a8c1-b8ca878a16a2
SCIP dossier product name
CDS303 Frame Identification B4
Supply power range [V] AC [Max]
240 V
Supply power range [V] AC [Min]
200 V
Total height [mm]
595 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
231 mm
Compressor Drives Troubleshooting Check List - GB
Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF)
CDS303/803 Quick troubleshooting guide
Manual - VLT Compressor Drives
Drive CDS302 - 303
CDS303 T2/T4/T6 11-15-18.5-22-30kW B4 IP20
