134G3584
Part Number: 134G3584
Product Information
Extended Description

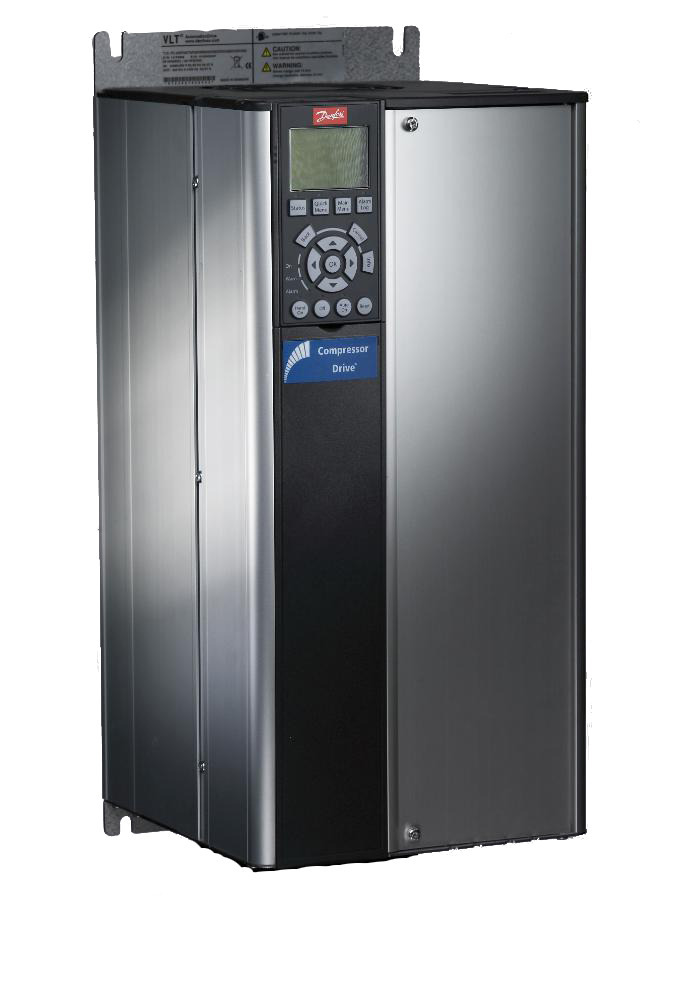

134G3584 Danfoss: CDS303 22.0kW; with coating; IP20; without LCP; H2; B4
Gross weight
21.753 Kilogram
Net weight
19.21 Kilogram
Volume
144.67 Liter
EAN
5710107539048
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
Yes
Contain batteries
No
Description
CDS303 22.0kW; with coating; IP20; without LCP; H2; B4
Family
Frequency converter
Frame
B4
IP class
IP20
LCP
No
Length [mm]
242 mm
Model number
CDS303P22KT4P20H2
Power consumption [kW]
22 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H2
SCIP dossier no.
64306c92-2242-4659-a8c1-b8ca878a16a2
SCIP dossier product name
CDS303 Frame Identification B4
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
595 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
231 mm
