134G3585

Part Number: 134G3585
134G3585
Manufacturer
Danfoss
Part number
134G3585
Category

Product Information

Extended Description

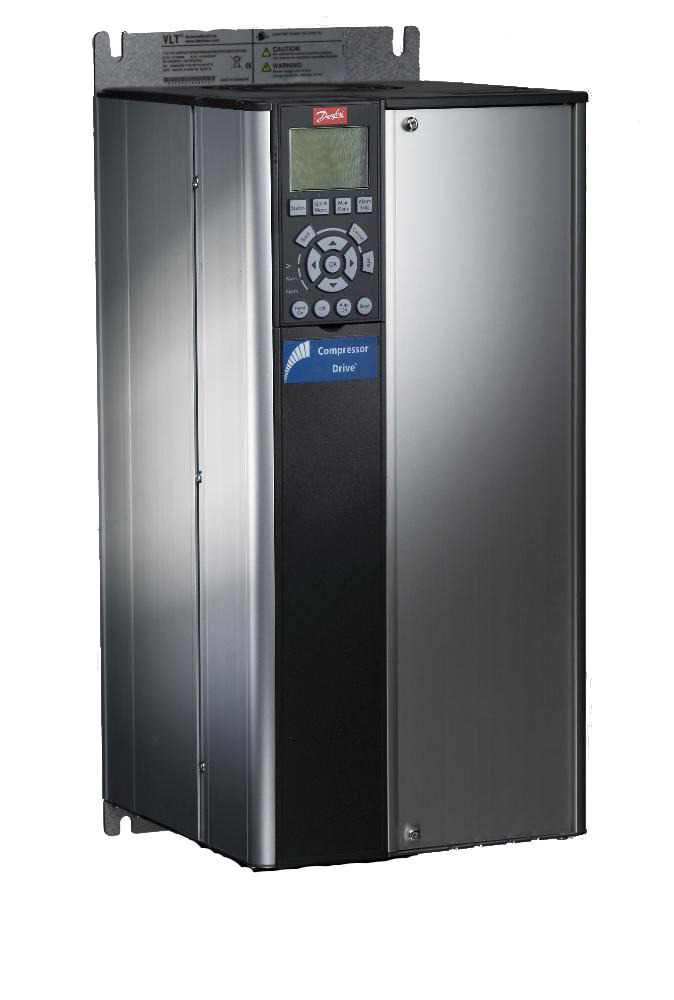

134G3585 Danfoss: CDS303 18.5kW; without coating; IP20; without LCP; H3; C3
Gross weight
36.35 Kilogram
Net weight
34.95 Kilogram
Volume
144.67 Liter
EAN
5710107539055
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 18.5kW; without coating; IP20; without LCP; H3; C3
Family
Frequency converter
Frame
C3
IP class
IP20
LCP
No
Length [mm]
334 mm
Model number
CDS303P18KT2P20H3
Power consumption [kW]
18.5 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H3
SCIP dossier no.
4832abaf-c1c7-4f47-acfe-88f234c3b4ee
SCIP dossier product name
VLT
Supply power range [V] AC [Max]
240 V
Supply power range [V] AC [Min]
200 V
Total height [mm]
630 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
308 mm
Compressor Drives Troubleshooting Check List - GB Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF) CDS303/803 Quick troubleshooting guide Manual - VLT Compressor Drives Drive CDS302 - 303 CDS303 T2 18.5-22kW C3 IP20
