134G4002
Part Number: 134G4002
Product Information
Extended Description

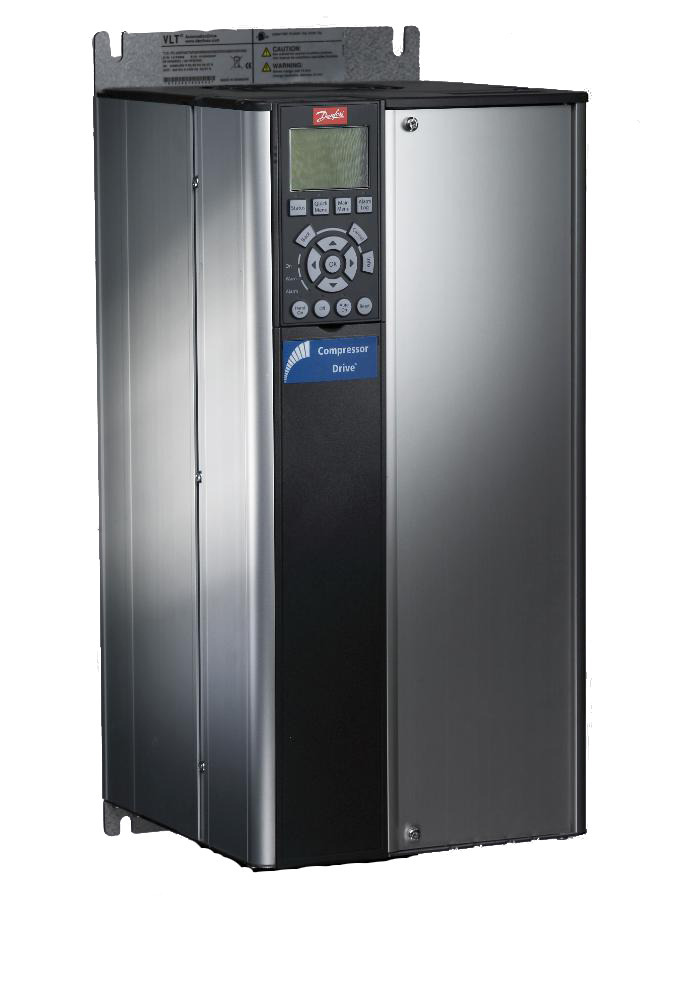

134G4002 Danfoss: CDS303 15.0kW; without coating; IP55; without LCP; H2; C1
Gross weight
39.85 Kilogram
Net weight
38.65 Kilogram
Volume
188.19 Liter
EAN
5710107543304
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 15.0kW; without coating; IP55; without LCP; H2; C1
Family
Frequency converter
Frame
C1
IP class
IP55
LCP
No
Length [mm]
310 mm
Model number
CDS303P15KT2P55H2
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H2
SCIP dossier no.
f5f55ab9-2ddc-46e9-8820-f096613be2c9
SCIP dossier product name
VLT
Supply power range [V] AC [Max]
240 V
Supply power range [V] AC [Min]
200 V
Total height [mm]
680 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
308 mm
