134G4010
Part Number: 134G4010
Product Information
Extended Description

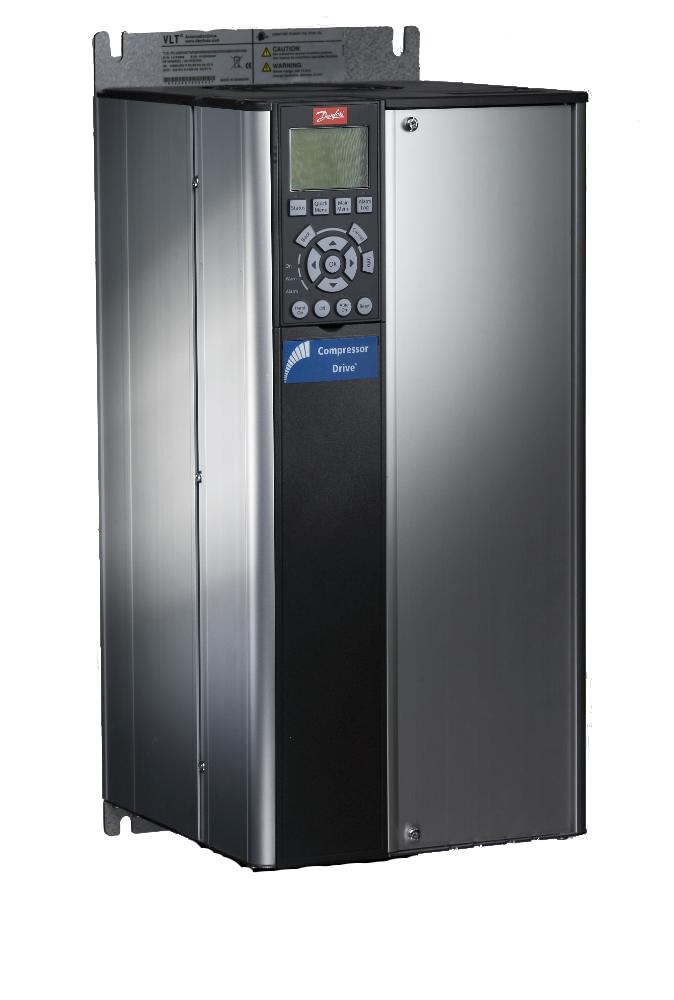

134G4010 Danfoss: CDS303 15.0kW; with coating; IP55; without LCP; H3; B1
Gross weight
23.78 Kilogram
Net weight
22.83 Kilogram
Volume
144.67 Liter
EAN
5710107543380
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
Yes
Contain batteries
No
Description
CDS303 15.0kW; with coating; IP55; without LCP; H3; B1
Family
Frequency converter
Frame
B1
IP class
IP55
LCP
No
Length [mm]
260 mm
Model number
CDS303P15KT4P55H3
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H3
SCIP dossier no.
2521ec9f-2936-48ed-b732-8b46da1f4794
SCIP dossier product name
VLT
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
480 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
240 mm
