134G4012
Part Number: 134G4012
Product Information
Extended Description

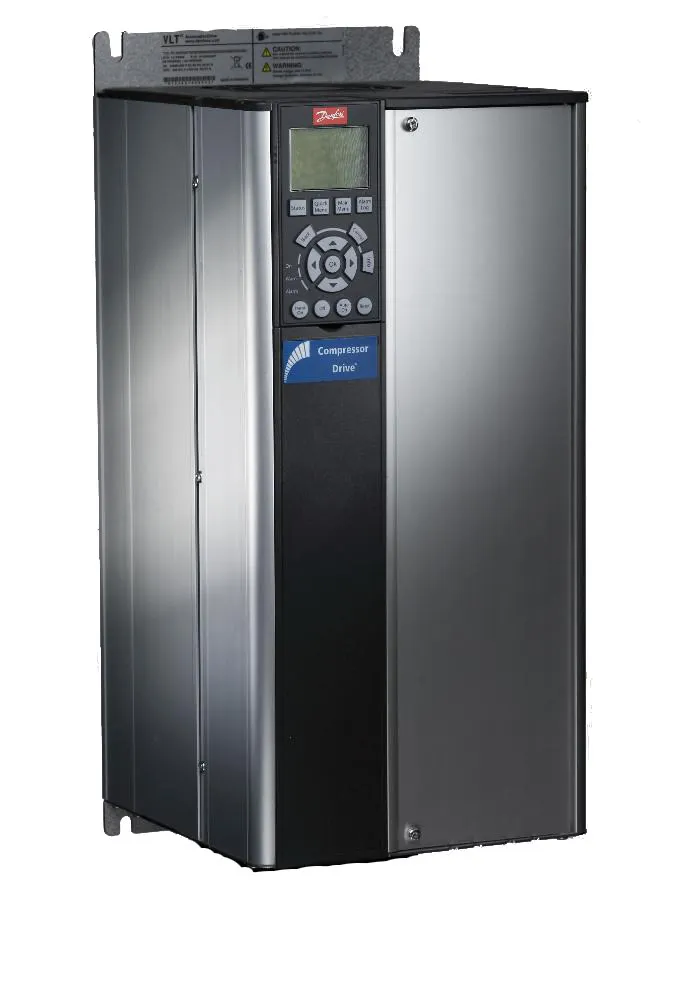

134G4012 Danfoss: CDS303 15.0kW; without coating; IP55; without LCP; H2; B1
Gross weight
22.75 Kilogram
Net weight
21.8 Kilogram
Volume
144.67 Liter
EAN
5710107543403
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 15.0kW; without coating; IP55; without LCP; H2; B1
Family
Frequency converter
Frame
B1
IP class
IP55
LCP
No
Length [mm]
260 mm
Model number
CDS303P15KT4P55H2
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H2
SCIP dossier no.
2521ec9f-2936-48ed-b732-8b46da1f4794
SCIP dossier product name
VLT
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
480 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
240 mm
