134G4020
Part Number: 134G4020
Product Information
Extended Description

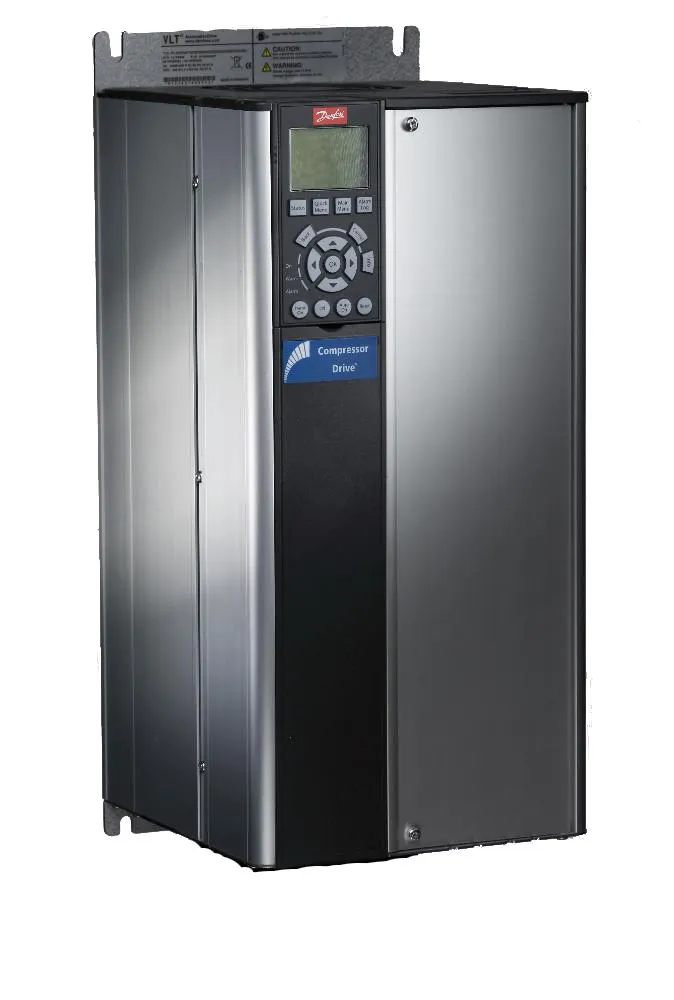

134G4020 Danfoss: CDS303 22.0kW; without coating; IP55; without LCP; H3; B2
Gross weight
31.5 Kilogram
Net weight
30.55 Kilogram
Volume
144.67 Liter
EAN
5710107543489
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
Coating
No
Contain batteries
No
Description
CDS303 22.0kW; without coating; IP55; without LCP; H3; B2
Family
Frequency converter
Frame
B2
IP class
IP55
LCP
No
Length [mm]
260 mm
Model number
CDS303P22KT4P55H3
Packing format
Single pack
Packing quantity
1
Power consumption [kW]
22 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H3
SCIP dossier no.
9dbb9c21-e666-46d6-ad5c-aadaa468807d
SCIP dossier product name
CDS303 Frame Identification B2
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
650 mm
Type
CDS303
UL evaluated
Yes
Width [mm]
242 mm
