134G4124

Part Number: 134G4124
134G4124
Manufacturer
Danfoss
Part number
134G4124
Category

Product Information

Extended Description

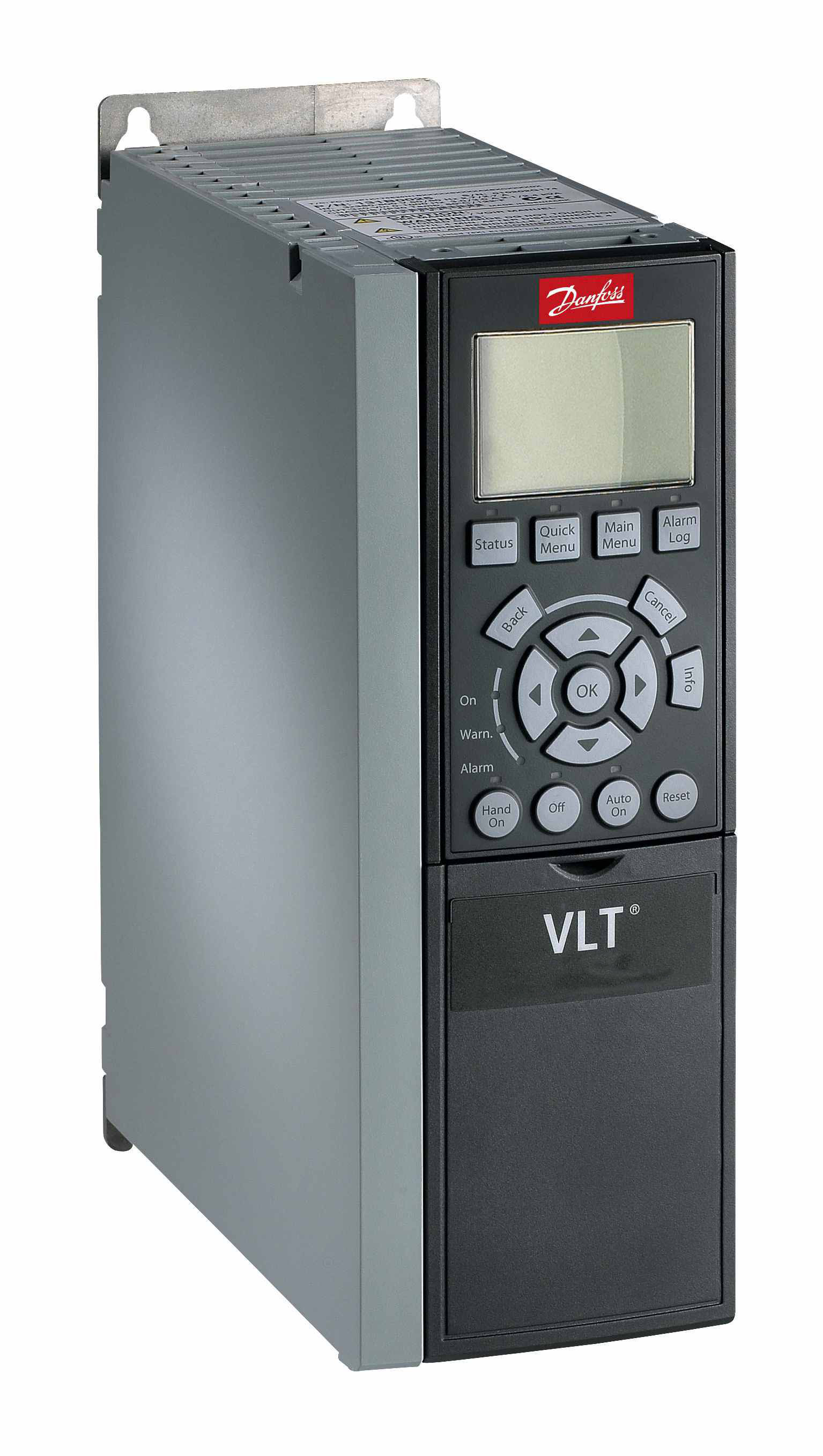

134G4124 Danfoss: Frequency converterFC-202P3K0T4E20H2XGXXXXSXXXXAXBXCXXXXD0VLT=C2=AE AQUA Drive FC-202(P3K0) 3.0 KW / 4.0 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A2No C1 option, MCB-107 24V DC backupNo A Option, No B OptionOther options according to Model code
Gross weight
4.96 kg
Net weight
4.09 kg
Volume
21.569 l
EAN
5710107544516
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P3K0 : (P3K0) 3.0 KW / 4.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
A2 : A2
Typecode Part 1
FC-202P3K0T4E20H2XGX
Typecode Part 2
XXXSXXXXAXBXCXXXXD0
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
3
Power 110% (NO) [KW]
3
Height [mm]
268,0
Width w/ no C options [mm]
90,0
Width w/ two C options [mm]
150,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
4.99
Power Loss NO [W]
116
Power Loss HO [W]
116
Continuous Current (NO) [A]
7.2
Intermittent Current (NO) [A]
7.92
Continuous Current (HO) [A]
7.2
Intermittent Current (HO) [A]
10.8
Calculated Gross Weight [kg]
4.96
Calculated Net Weight [kg]
4.09
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P3K0T4E20H2XGX
Modelcode02
XXXSXXXXAXBXCXXXXD0
