134G4278
Part Number: 134G4278
Product Information
Extended Description

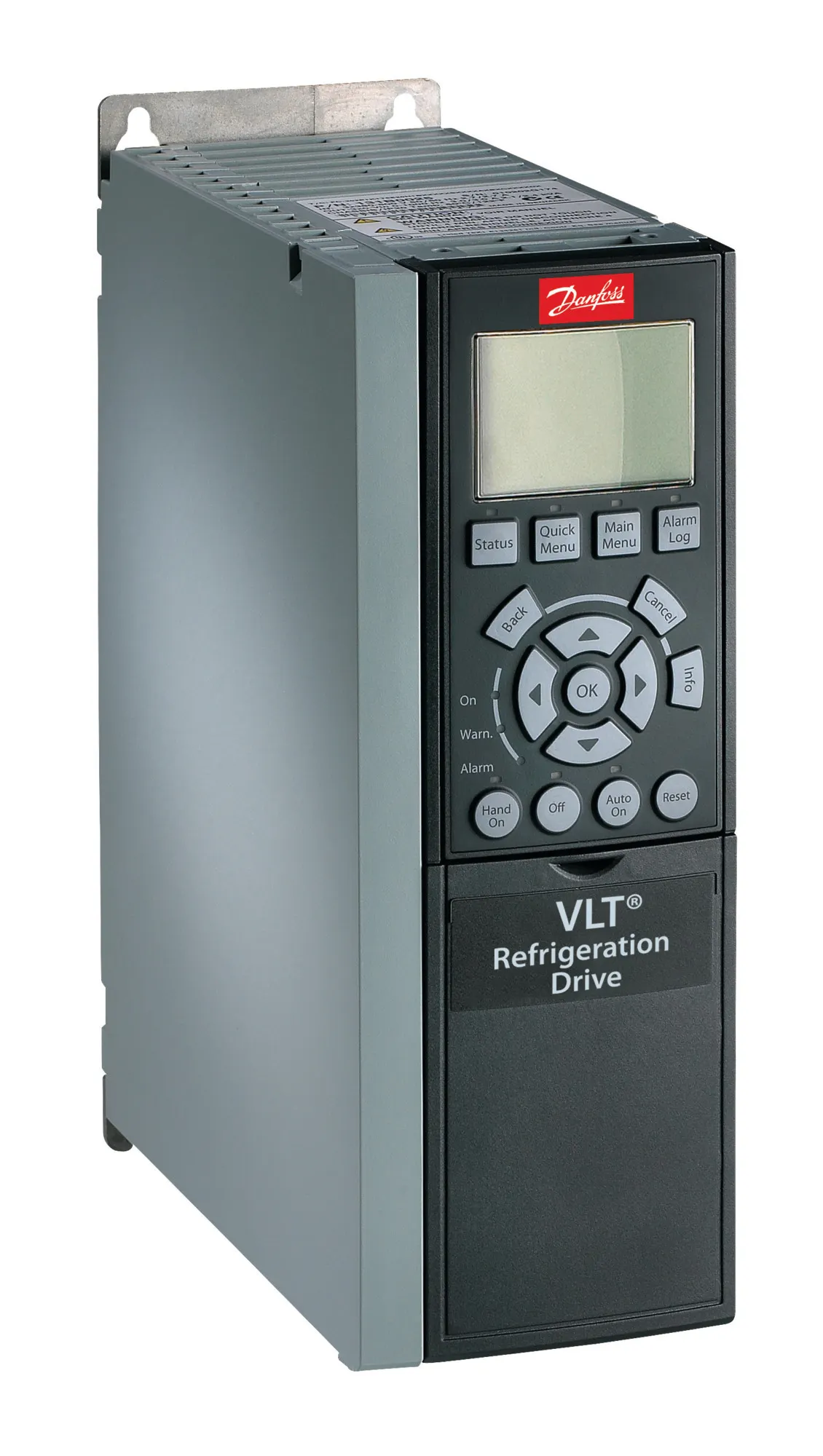

134G4278 Danfoss: Frequency converterFC-103P22KT4P55H1TGXXXXSXXXXAZBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-10322 KW / 30 HP, Three phase380 - 480 VAC, IP55 / Type12 BackplateRFI filter Class A1 / BSafe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.AK-LonWorks MCA 107, No B OptionNo C1 option, No D optionFrame: B2Other options according to Model code
Gross weight
30.1 kg
Net weight
29.8 kg
Volume
0 l
EAN
5710107546053
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P22K : 22 KW / 30 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H1 : RFI filter Class A1 / B
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AZ : AK-LonWorks MCA 107
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B2 : B2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P22KT4P55H1TGX
Typecode Part 2
XXXSXXXXAZBXCXXXXDX
Power 110% (NO) [KW]
22
Height [mm]
650,0
Width w/ no C options [mm]
242,0
Depth [mm]
260,0
Depth with Option A/B [mm]
260,0
kVA
30.5
Power Loss NO [W]
525
Continuous Current (NO) [A]
44
Intermittent Current (NO) [A]
48.4
Calculated Gross Weight [kg]
30.1
Calculated Net Weight [kg]
29.8
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P22KT4P55H1TGX
Modelcode02
XXXSXXXXAZBXCXXXXDX
130B3465
Back plate IP66/Type 4X, SS, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1117
LCP Mounting Kit, w/ no LCP
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
